    Brocade 57-1000488-01 16G 10KM Transceivers LW Fiber Channel Modules SMF

    Ask Lasest Price
    Brand Name : Brocade
    Model Number : 57-1000488-01
    Certification : CE FCC Rohs
    Price : price is negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 100pcs per month
    Delivery Time : 2-3 working days
    • Product Details
    • Company Profile

    Brocade 57-1000488-01 16G 10KM Transceivers LW Fiber Channel Modules SMF

    Brocade 57-1000488-01 16G LW Fiber Channel Modules SMF 10KM Transceivers


    Brocade 16Gb/s LWL FC SFP+ Transceiver Specifications

    The Brocade® 16Gb/s Long Wavelength (LWL) 10-km optical transceiver, part of the Brocade family of Small Form-Factor Pluggable (SFP) optical transceivers, is optimized to fully leverage Brocade 16Gb/s director and switch products. The Brocade 16Gb/s LWL 10-km SFPs are hot-swappable, low-voltage (3.3V), digital diagnostic optical transceivers that support high-speed serial links over single-mode optical fiber at signaling rates up to 14.025Gb/s. They comply with SFP mechanical (SFF-8432), optical, and electrical specifications (FC-PI-5) for LC duplex transceivers.


    Highlights

    • Provides high system reliability through a rigorous qualification and certification process.

    • Eliminates issues related to SFP incompatibility, reducing downtime and support costs.

    • Extends Fibre Channel connectivity over distance in enterprise environments, enabling highperformance business continuity and disaster recovery solutions.

    • Ensures reliable FICON connectivity, interoperability, and architectural adherence between IBM Z mainframes and Brocade SAN products and storage devices.


    Caution

    • Do not look through the optical ports because doing so is a potential eye hazard.

    • The SFP is an ESD sensitivity Class 2 device. It should be handled accordingly.


    Ordering Part Numbers

    • XBR-000198 (1-pack)

    • XBR-000199 (8-pack)

    • XBR-000498 (1-pack)

    • XBR-000499 (8-pack)


    Parameters for the 16Gb/s LWL FC SFP+ Transceiver Module:

    Fiber Typesingle mode fiber
    ConnectorLC
    Transmit&Receive Wavelength (nm)1295nm to 1325nm
    Pull Tab ColorBlack
    Optical return loss-12 dB min
    Tx Power+5.0 dBm to +2.0 dBm
    Rx Sensitivity63 µW, −12.0 dBm
    Storage Temperature−40°C to 85°C
    Power Consumption1.08W
    Single Power Supply3.3 V
    Dimensions(H x W x D)12.21 x 14.80 x 56.70 mm

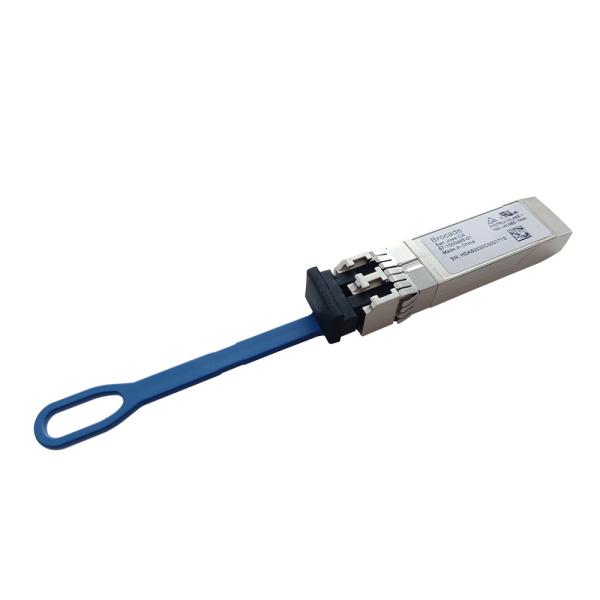

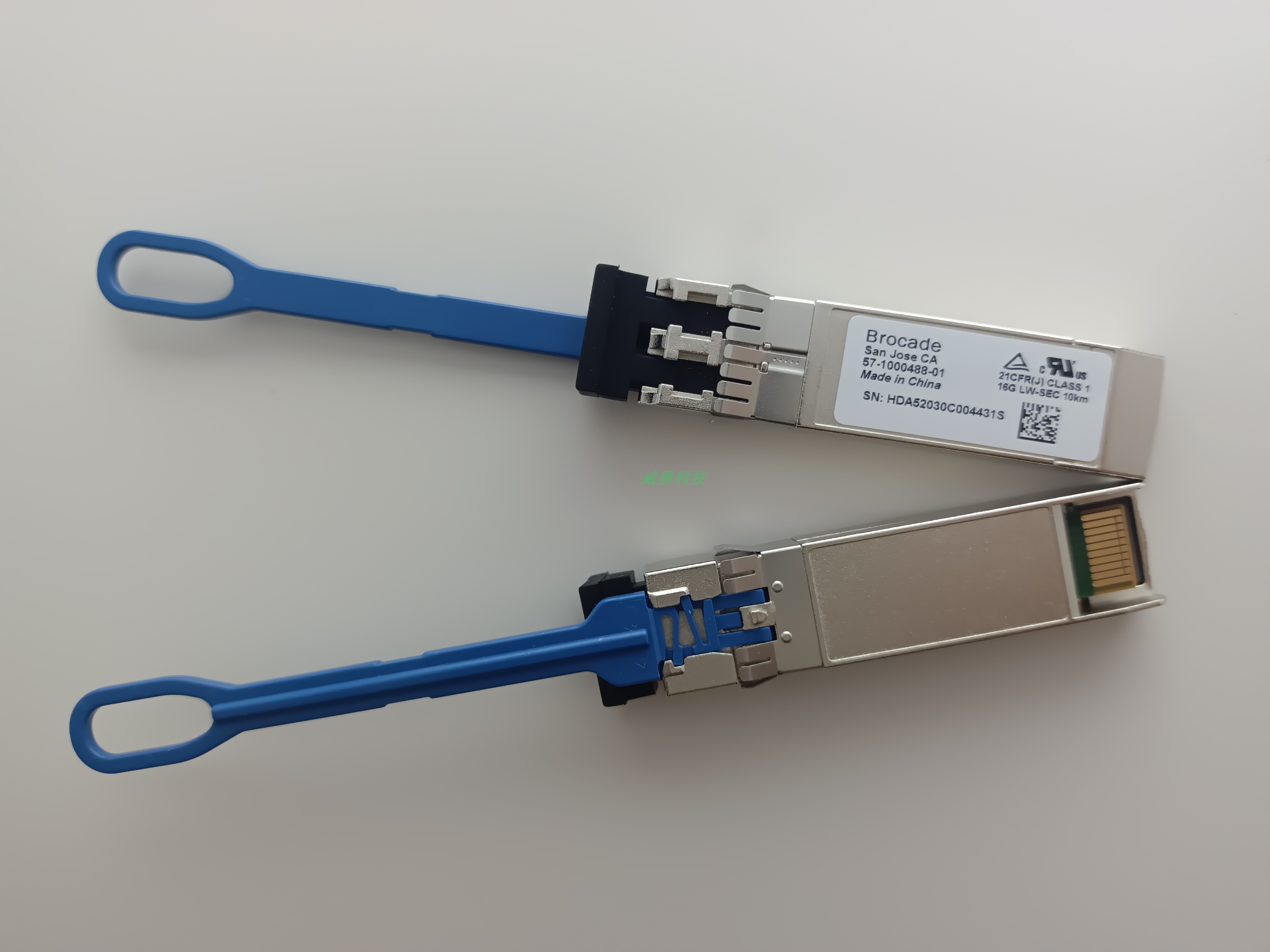

    Photo for Brocade 16Gb/s LWL FC SFP+ Transceiver



    FAQ

    Q1. Except for this Brocade 16Gb/s ELWL FC SFP+ Transceiver optical modules, what else Brocade sfp can you offer?

    A1: pls check the below form for the Brocade optical module we can offer;


    Data Rate
    Description
    Manufacturing
    Part Number
    Brocade Ordering
    Part Number
    4x32G FC QSFP+
    SWL
    57-1000351-01
    XBR-000275 (1-pack)
    4x32G FC QSFP+
    SWL
    57-1000490-01
    XBR-000475 (1-pack)
    4x32G FC QSFP+
    2 km
    57-1000480-01
    XBR-000285 (1-pack)
    64G FC SFP+
    SWL
    57-1000495-01
    XBR-000462 (1-pack)
    XBR-000463 (8-pack)
    64G FC SFP+
    LWL - 10 km
    57-1000496-01
    XBR-000468 (1-pack)
    XBR-000469 (8-pack)
    64G FC SFP+
    ELWL - 25 km
    57-1000497-01
    XBR-000466 (1-pack)
    32G FC SFP+
    SWL
    57-1000333-01
    XBR-000212 (1-pack)
    XBR-000213 (8-pack)
    32G FC SFP+
    SWL
    57-1000485-01
    XBR-000412 (1-pack)
    XBR-000413 (8-pack)
    32G FC SFP+
    LWL - 10 km
    57-1000332-01
    XBR-000238 (1-pack)
    XBR-000239 (8-pack)
    32G FC SFP+
    LWL - 10 km
    57-1000486-01
    XBR-000438 (1-pack)
    XBR-000439 (8-pack)
    32G FC SFP+
    ELWL - 25 km
    57-1000355-01
    XBR-000278 (1-pack)
    32G FC SFP+
    ELWL - 25 km
    57-1000494-01
    XBR-000478 (1-pack)
    32G FC SFP+
    ELWL - 25 km
    57-1000498-01
    XBR-000479 (1-pack)
    16G FC SFP+
    SWL
    57-0000088-01
    XBR-000192 (1-pack)
    XBR-000193 (8-pack)
    16G FC SFP+
    SWL
    57-1000487-01
    XBR-000492 (1-pack)
    XBR-000493 (8-pack)
    16G FC SFP+
    LWL - 10 km
    57-0000089-01
    XBR-000198 (1-pack)
    XBR-000199 (8-pack)
    16G FC SFP+
    LWL - 10 km
    57-1000488-01
    XBR-000498 (1-pack)
    XBR-000499 (8-pack)
    16G FC SFP+
    ELWL - 25 km
    57-1000262-01
    XBR-000258 (1-pack)
    16G FC SFP+
    ELWL - 25 km
    57-1000489-01
    XBR-000458 (1-pack)
    8G FC SFP+
    SWL
    57-1000117-01
    XBR-000163 (1-pack)
    XBR-000164 (8-pack)
    8G FC SFP+LWL - 10 km
    57-1000027-02
    XBR-000153 (1-pack)
    XBR-000172 (8-pack)
    8G FC SFP+ELWL - 25 km
    57-0000080-01
    XBR-000174 (1-pack)

    Q2:Is this genuine Brocade Original 16G LWL FC SFP+ Transceiver?
    A2:Yes, Topstar is the top lead Brocade distributor in China, we sell the brand SFP since year 2006 and never sell fake or copy brand items.



    Q3:Does your SFP provide a quality warranty?
    A3:​For brocade SFP, we offer 1-year warranty. Any quality problem, we will replace for you;



    Q4:Can you send this SFP module to my place? and how long does it take?

    ​A4:Yes, we can provide door to door shipment via DHL, FEDEX, Aramex and UPS etc logistic services.
    The express logistic generally takes 5-12 days to global.
