    Brocade 57-1000480-01 XBR-000285 FC SFP Transceiver Module 4x 32G 128G QSFP28 Module

    Ask Lasest Price
    Brand Name : Brocade
    Model Number : 57-1000480-01
    Certification : CE FCC
    Price : price is negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 100pcs per month
    Delivery Time : 2-3 working days
    • Product Details
    • Company Profile

    Brocade 57-1000480-01 XBR-000285 FC SFP Transceiver Module 4x 32G 128G QSFP28 Module

    Brocade 57-1000480-01 XBR-000285 FC SFP Transceiver Module 4x 32G 128G QSFP28 2km ICL


    Brocade 4x32Gb/s SW FC SFP Transceiver Specification


    The Brocade 4×32 GFC (2 Km) Quad Small Form-Factor Pluggable (QSFP28), part of the Brocade family of optical transceivers, are optimized to fully leverage Brocade Gen 6 backbone and switch products. Together, these optical transceivers provide state-of-the-art performance, helping IT organizations achieve new levels of infrastructure consolidation while expanding the capabilities of their applications and services.
    End-to-End Compatibility and Reliability
    The Brocade 4×32 GFC (2 Km) QSFP28 modules support highly reliable operations in data center fabrics and are optimized for Brocade 128 GFC switching platforms. They undergo rigorous qualification and certification testing that results in an endto-end solution that is easier to maintain—helping to improve the availability of data center fabrics supporting mission-critical applications.


    Highlights

    • Provides high system reliability through rigorous qualification and certification processes

    • Leverages unique design parameters to provide the highest performance with industry-leading Brocade switch and backbone platforms

    • Helps eliminate issues related to transceiver incompatibility, reducing downtime and support costs

    • Helps eliminate issues resulting from unexpected design changes, providing ongoing end-to-end compatibility

    • Optimizes connectivity with Brocade platforms to enable maximum cable distance

    • Provides support for high throughput Inter-Chassis Links (ICLs) up to 2 km


    Key Features

    The Brocade 4×32 GFC (2 Km) QSFP28 modules are hot-swappable, lowvoltage (3.3 V) digital diagnostic optical transceivers that support high-speed serial links over single mode optical fiber at signaling rates up to 4×28.05 Gbps. They comply with the 128 GFC Fibre Channel standard (FC-PI-6P) and QSFP MSA mechanical specification (SFF-8661).

    The Brocade 4×32 GFC (2 Km) QSFP28 modules are multi-rated CWDM4 QSFP28s that comply with 28.025 Gbps Fibre Channel specifications.


    Product highlights include:

    • 4 CWDM wavelengths (1271 nm, 1291 nm, 1311 nm, 1331 nm) driven by an EML laser

    • Diagnostic features per SFF-8472 “Diagnostic Monitoring Interface for Optical Transceivers,”providing real-time monitoring of:

    – Transmitted optical power

    – Received optical power

    – Laser bias current

    – Temperature

    – Supply voltage

    • Industry-standard duplex LC connector

    • 2 km link length on duplex singlemode fiber

    • IEC 60825-1 Class 1/CDRH Class 1 laser, eye-safe

    • Compliance with Restriction on Hazardous Substances (RoHS) directive

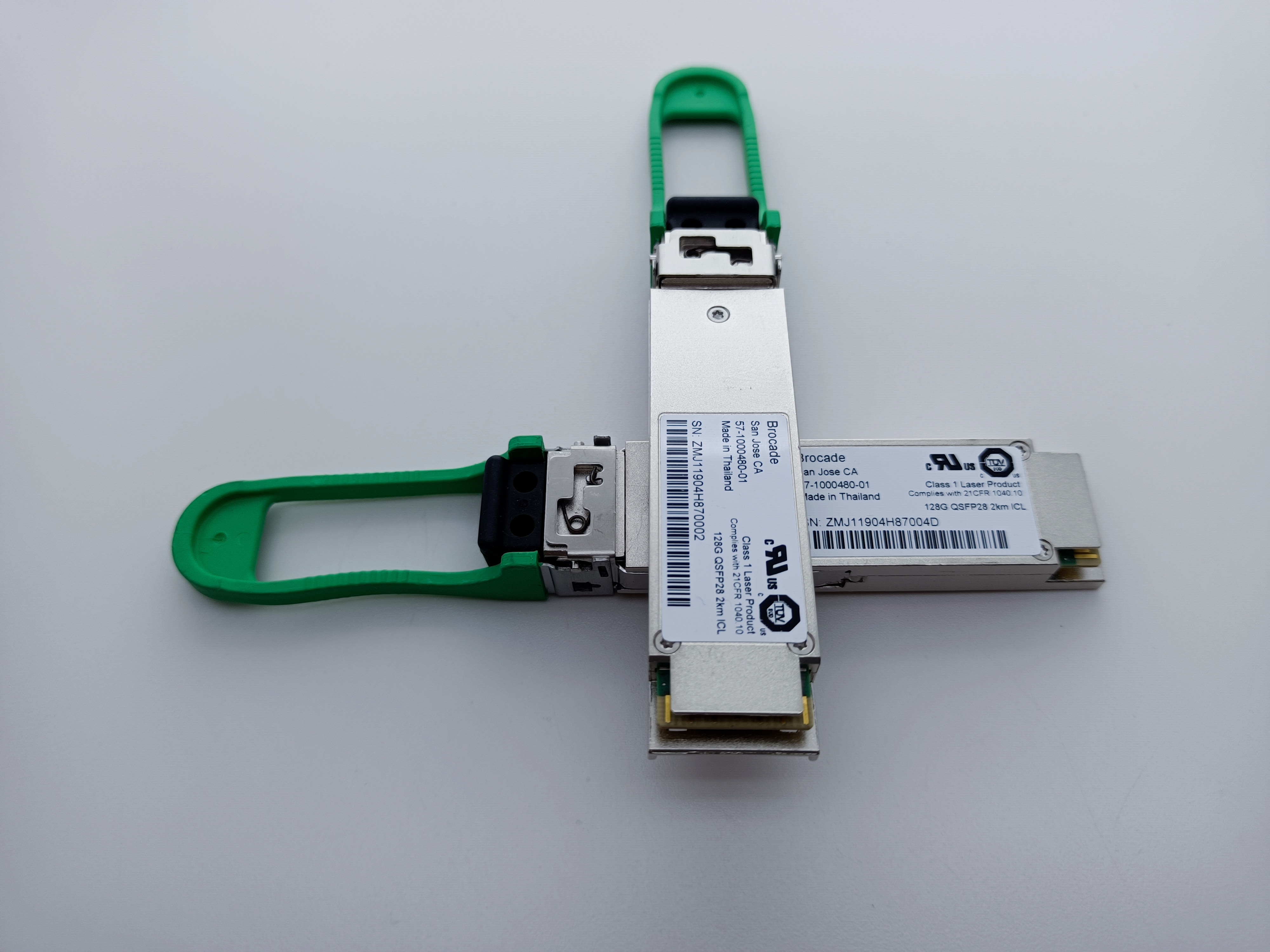

    Photo for Brocade 4x32Gb/s 2KM FC SFP+ Transceiver



    FAQ

    Q1. Except for this Brocade 4X32Gb/s 2KM FC SFP+ Transceiver optical modules, what else Brocade sfp can you offer?

    A1: pls check the below form for the Brocade optical module we can offer;


    Data Rate
    Description
    Manufacturing
    Part Number
    Brocade Ordering
    Part Number
    4x32G FC QSFP+
    SWL
    57-1000351-01
    XBR-000275 (1-pack)
    4x32G FC QSFP+
    SWL
    57-1000490-01
    XBR-000475 (1-pack)
    4x32G FC QSFP+
    2 km
    57-1000480-01
    XBR-000285 (1-pack)
    64G FC SFP+
    SWL
    57-1000495-01
    XBR-000462 (1-pack)
    XBR-000463 (8-pack)
    64G FC SFP+
    LWL - 10 km
    57-1000496-01
    XBR-000468 (1-pack)
    XBR-000469 (8-pack)
    64G FC SFP+
    ELWL - 25 km
    57-1000497-01
    XBR-000466 (1-pack)
    32G FC SFP+
    SWL
    57-1000333-01
    XBR-000212 (1-pack)
    XBR-000213 (8-pack)
    32G FC SFP+
    SWL
    57-1000485-01
    XBR-000412 (1-pack)
    XBR-000413 (8-pack)
    32G FC SFP+
    LWL - 10 km
    57-1000332-01
    XBR-000238 (1-pack)
    XBR-000239 (8-pack)
    32G FC SFP+
    LWL - 10 km
    57-1000486-01
    XBR-000438 (1-pack)
    XBR-000439 (8-pack)
    32G FC SFP+
    ELWL - 25 km
    57-1000355-01
    XBR-000278 (1-pack)
    32G FC SFP+
    ELWL - 25 km
    57-1000494-01
    XBR-000478 (1-pack)
    32G FC SFP+
    ELWL - 25 km
    57-1000498-01
    XBR-000479 (1-pack)
    16G FC SFP+
    SWL
    57-0000088-01
    XBR-000192 (1-pack)
    XBR-000193 (8-pack)
    16G FC SFP+
    SWL
    57-1000487-01
    XBR-000492 (1-pack)
    XBR-000493 (8-pack)
    16G FC SFP+
    LWL - 10 km
    57-0000089-01
    XBR-000198 (1-pack)
    XBR-000199 (8-pack)
    16G FC SFP+
    LWL - 10 km
    57-1000488-01
    XBR-000498 (1-pack)
    XBR-000499 (8-pack)
    16G FC SFP+
    ELWL - 25 km
    57-1000262-01
    XBR-000258 (1-pack)
    16G FC SFP+
    ELWL - 25 km
    57-1000489-01
    XBR-000458 (1-pack)
    8G FC SFP+
    SWL
    57-1000117-01
    XBR-000163 (1-pack)
    XBR-000164 (8-pack)
    8G FC SFP+LWL - 10 km
    57-1000027-02
    XBR-000153 (1-pack)
    XBR-000172 (8-pack)
    8G FC SFP+ELWL - 25 km
    57-0000080-01
    XBR-000174 (1-pack)

    Q2:Is this genuine Brocade Original 4x32G 2KM FC SFP Transceiver?
    A2:Yes, Topstar is the top lead Brocade distributor in China, we sell the brand SFP since year 2006 and never sell fake or copy brand items.



    Q3:Does your SFP provide a quality warranty?
    A3:​For brocade SFP, we offer 1-year warranty. Any quality problem, we will replace for you;



    Q4:Can you send this SFP module to my place? and how long does it take?

    ​A4:Yes, we can provide door to door shipment via DHL, FEDEX, Aramex and UPS etc logistic services.
    The express logistic generally takes 5-12 days to global.
