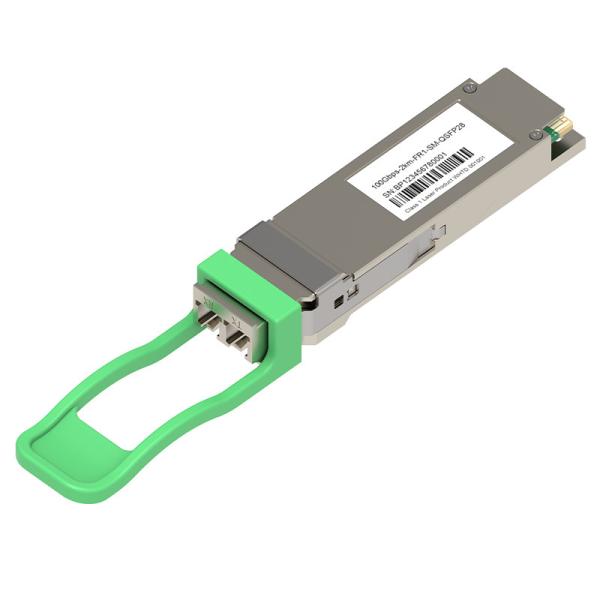

RTXM500-210 100G QSFP28 FR1 PAM4 EML Based QSFP28 Optical Transceiver 1310nm

TOPSTAR TECHNOLOGY INDUSTRIAL CO., LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap RTXM500-210 100G QSFP28 FR1 PAM4 EML Based QSFP28 Optical Transceiver 1310nm from wholesalers

    Buy cheap RTXM500-210 100G QSFP28 FR1 PAM4 EML Based QSFP28 Optical Transceiver 1310nm from wholesalers
    • Buy cheap RTXM500-210 100G QSFP28 FR1 PAM4 EML Based QSFP28 Optical Transceiver 1310nm from wholesalers

    RTXM500-210 100G QSFP28 FR1 PAM4 EML Based QSFP28 Optical Transceiver 1310nm

    Ask Lasest Price
    Brand Name : Top-Trans
    Model Number : 100G QSFP28 FR1
    Certification : CE FCC RoHS
    Price : Price is negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000pcs per Day
    Delivery Time : 1-3 working days
    • Product Details
    • Company Profile

    RTXM500-210 100G QSFP28 FR1 PAM4 EML Based QSFP28 Optical Transceiver 1310nm

    RTXM500-210 100G QSFP28 FR1 PAM4 EML-Based 1310nm QSFP28 Optical Transceiver DR1 100G Duplex LC


    Parameters

    Fiber TypeSingle-mode Cable
    ConnectorDuplex LC
    Lasers and TIAEML PD&TIA
    Tx Power-2.4 to 4.0 dBm
    Rx Sensitivity-6.4 to 4.5 dBm
    Extinction Ratio3.5 dB
    Power Consumption3.5 W
    Single Power Supply3.3 V



    PRODUCT FEATURES

    Hot-pluggable QSFP28 form factor
    Supports 106.25Gb/s aggregate bit rate
    Power dissipation <3.5W
    Commercial case temperature range of 0°C to 70°C
    Single 3.3V power supply
    Maximum link length of 2km on Single Mode Fiber (SMF)
    Aligned with IEEE 802.3cu
    100G PAM4 EML-based 1310nm transmitter
    4x25G NRZ retimed 100GAUI-4 electrical interface
    Duplex LC receptacles
    I2C management interface
    RoHS compliant





    FAQ
    Q1. Are your transceiver modules compatible with Cisco?
    A1: Yes, Topstar transceivers can compatible with Cisco. All the brand Topstar's SFP compatible as the fellowing:Cisco, Nortel, Juniper, 3COM, H3C, Alcatel-lucent, FOUNDRY, D-Link, EXTREME, Ruijie, NETGEAR, ZTE, Enterasys, ZyXEL, Linksys, Ericsson, DCN, Allied, SMC, Brocade, Force10, Hirschmann, Planet, Adtran, ASNTE, Trendnet, BDCOM, BLADE, BITWAY, Telco, Feixun...etc.

    Q2. How does your company do regarding quality control?
    A2: Every single optic individually tested in our test center , and also tested for compatibility on a variety of different brands of network equipment.

    Q3. What are the trade terms?
    A3: Lead Time: we keep 40,000pcs SFP in stock ready to ship.
    Payment term: T/T, Western Union, Alipay, Paypal, L/C and so on for your option.

    Q4. What is operating temperature range of optical modules?
    A4: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)
    Storage temperature range:-40 to +85°C(-40 to 185°F)
    We can supply according to your request.
