    57-1000335-01 FC SFP+ Transceiver XBR-000278 32G ELWL 25Km For X6 G610 G620 G630

    Ask Lasest Price
    Brand Name : Brocade
    Model Number : 57-1000335-01
    Certification : CE UL
    Price : price is negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 100pcs per month
    Delivery Time : 2-3 working days
    • Product Details
    • Company Profile

    57-1000335-01 FC SFP+ Transceiver XBR-000278 32G ELWL 25Km For X6 G610 G620 G630

    Brocade 57-1000335-01 FC SFP+ Transceiver XBR-000278 32G ELWL 25Km for X6 G610 G620 G630


    Brocade 32Gb/s ELWL FC SFP transceiver Specifications


    The Brocade® 32G extended long wavelength (ELWL) SFP+, part of the Brocade family of optical transceivers, is optimized for Brocade 32G director and switch products. Together, these optical transceivers provide state-of-the-art performance, while extending data center connectivity over a distance of 25 km. This optical transceiver operates over single-mode fiber and uses an industry-standard LC connector.


    Diagnostic features of the Brocade 32G ELWL SFP+ optical transceiver comply with SFF-8472 Rev.12.3, providing real-time monitoring of the following:

    • Transmitted optical power

    • Received optical power

    • Laser bias current

    • Temperature

    • Supply voltage


    Parameters for the 32Gb/s ELWL FC SFP Transceiver Module:


    Performance

    Fibre Channel: 8.5Gb/s, 14.025Gb/s, and 28.05Gb/s line speed, full duplex;

    MediaHot-pluggable, industry-standard SFP+, LC connector; ELWL 25 km; minimum distance of 10 km required. This transceiver is targeted for long-reach applications with high-power transmitters. Attenuation of ~6 dB is needed for loopback testing
    Operating Parameters

    Transmit (Tx):

    • Wavelength: 1295 nm to 1310 nm

    • Average power: +2.0 dBm to +7.0 dBm

    • RIN: −130 dB/Hz max.

    • Optical return loss: 26 dB min.

    • OMA: +2.0 dBm to +7 dBm


    Receive (Rx):

    • Average power: 2 dBm max.

    • Optical return loss: 26 dB min.

    • Unstressed sensitivity: 41 µW, −13.9 dBm

    Size

    Width: 14.81 mm (0.58 inches)

    Height: 11.90 mm (0.47 inches)

    Depth: 56.50 mm (2.22 inches)

    Storage Temperature−40°C to +85°C (−40°F to +185°F)
    Power Dissipation1.5W

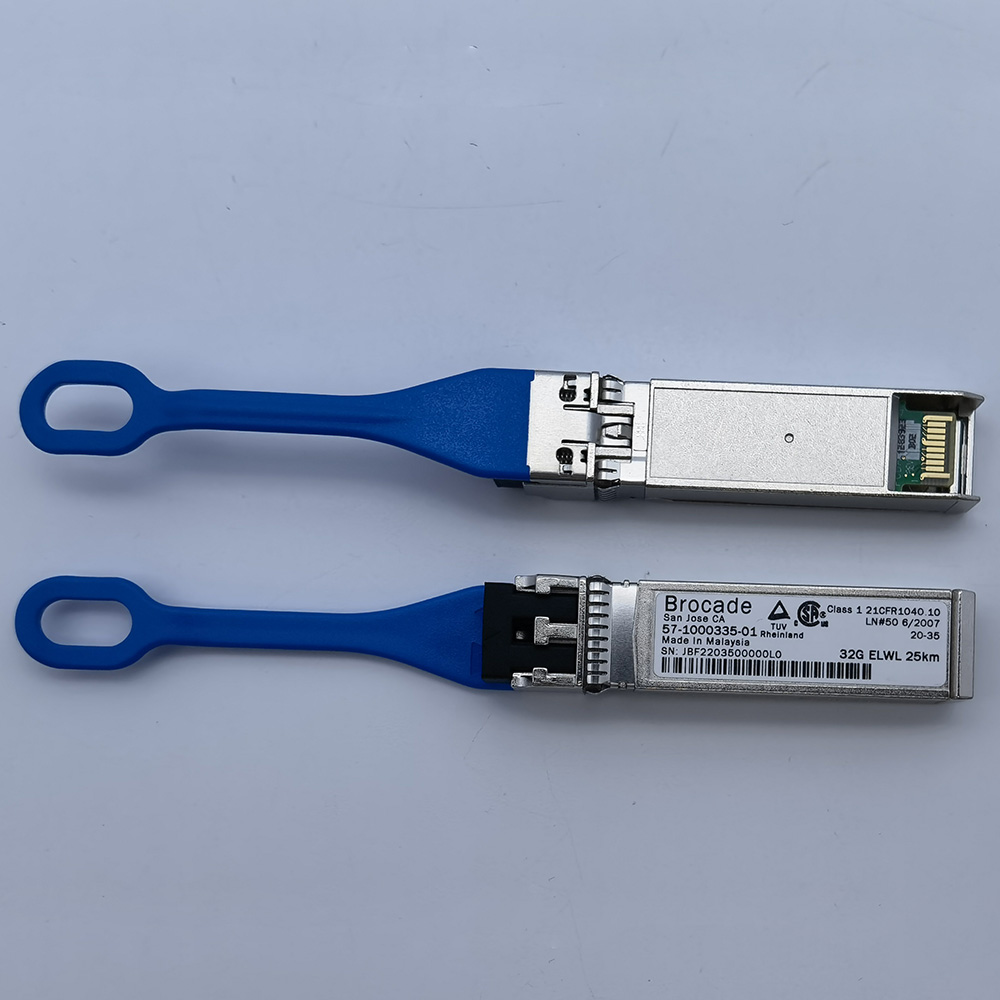

    Photo for Brocade 32Gb/s ELWL FC SFP Transceiver



    FAQ

    Q1. Except for this Brocade 32Gb/s SW FC SFP Transceiver optical modules, what else Brocade sfp can you offer?

    A1: pls check the below form for the Brocade optical module we can offer;


    Data Rate
    Description
    Manufacturing
    Part Number
    Brocade Ordering
    Part Number
    4x32G FC QSFP+
    SWL
    57-1000351-01
    XBR-000275 (1-pack)
    4x32G FC QSFP+
    SWL
    57-1000490-01
    XBR-000475 (1-pack)
    4x32G FC QSFP+
    2 km
    57-1000480-01
    XBR-000285 (1-pack)
    64G FC SFP+
    SWL
    57-1000495-01
    XBR-000462 (1-pack)
    XBR-000463 (8-pack)
    64G FC SFP+
    LWL - 10 km
    57-1000496-01
    XBR-000468 (1-pack)
    XBR-000469 (8-pack)
    64G FC SFP+
    ELWL - 25 km
    57-1000497-01
    XBR-000466 (1-pack)
    32G FC SFP+
    SWL
    57-1000333-01
    XBR-000212 (1-pack)
    XBR-000213 (8-pack)
    32G FC SFP+
    SWL
    57-1000485-01
    XBR-000412 (1-pack)
    XBR-000413 (8-pack)
    32G FC SFP+
    LWL - 10 km
    57-1000332-01
    XBR-000238 (1-pack)
    XBR-000239 (8-pack)
    32G FC SFP+
    LWL - 10 km
    57-1000486-01
    XBR-000438 (1-pack)
    XBR-000439 (8-pack)
    32G FC SFP+
    ELWL - 25 km
    57-1000355-01
    XBR-000278 (1-pack)
    32G FC SFP+
    ELWL - 25 km
    57-1000494-01
    XBR-000478 (1-pack)
    32G FC SFP+
    ELWL - 25 km
    57-1000498-01
    XBR-000479 (1-pack)
    16G FC SFP+
    SWL
    57-0000088-01
    XBR-000192 (1-pack)
    XBR-000193 (8-pack)
    16G FC SFP+
    SWL
    57-1000487-01
    XBR-000492 (1-pack)
    XBR-000493 (8-pack)
    16G FC SFP+
    LWL - 10 km
    57-0000089-01
    XBR-000198 (1-pack)
    XBR-000199 (8-pack)
    16G FC SFP+
    LWL - 10 km
    57-1000488-01
    XBR-000498 (1-pack)
    XBR-000499 (8-pack)
    16G FC SFP+
    ELWL - 25 km
    57-1000262-01
    XBR-000258 (1-pack)
    16G FC SFP+
    ELWL - 25 km
    57-1000489-01
    XBR-000458 (1-pack)
    8G FC SFP+
    SWL
    57-1000117-01
    XBR-000163 (1-pack)
    XBR-000164 (8-pack)
    8G FC SFP+LWL - 10 km
    57-1000027-02
    XBR-000153 (1-pack)
    XBR-000172 (8-pack)
    8G FC SFP+ELWL - 25 km
    57-0000080-01
    XBR-000174 (1-pack)

    Q2:Is this genuine Brocade Original 32G ELWL FC SFP+ Transceiver?
    A2:Yes, Topstar is the top lead Brocade distributor in China, we sell the brand SFP since year 2006 and never sell fake or copy brand items.



    Q3:Does your SFP provide a quality warranty?
    A3:​For brocade SFP, we offer 1-year warranty. Any quality problem, we will replace for you;



    Q4:Can you send this SFP module to my place? and how long does it take?

    ​A4:Yes, we can provide door to door shipment via DHL, FEDEX, Aramex and UPS etc logistic services.
    The express logistic generally takes 5-12 days to global.
