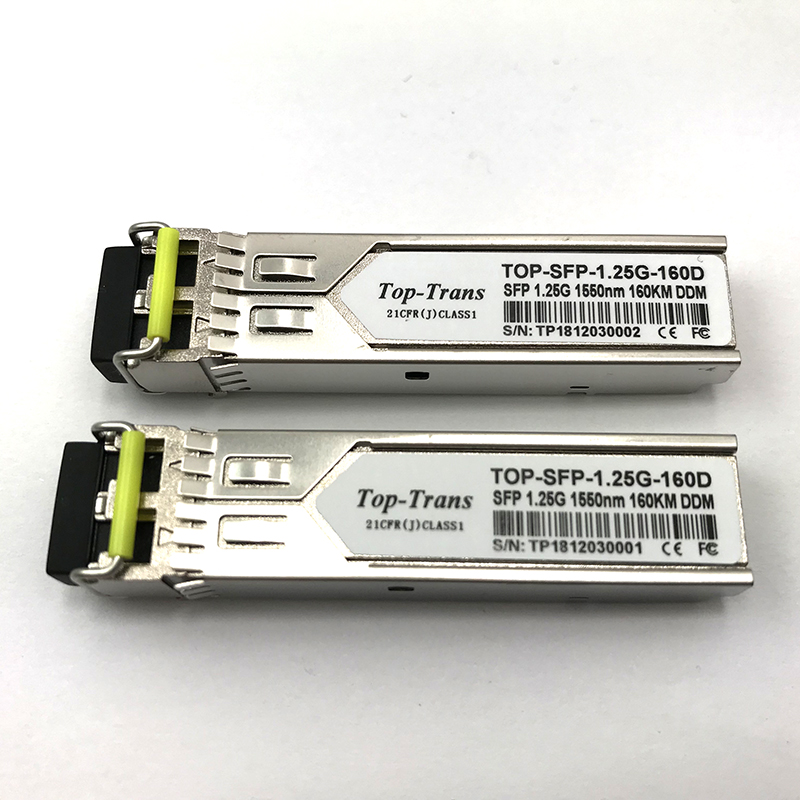

    Juniper SFP-1GE-EZX-160 1.25G SFP Transceiver 1550nm 160km Singlemode

    Ask Lasest Price
    Brand Name : Top-Trans
    Model Number : TSFP-1.25G-160D
    Certification : ISO9001, ROHS, CE, FCC
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 3000pcs per month
    Delivery Time : Negotiable
    • Product Details
    • Company Profile

    Juniper SFP-1GE-EZX-160 1.25G SFP Transceiver 1550nm 160km Singlemode

    Juniper Networks SFP-1GE-EZX-160 1.25G SFP 1550nm 160km Singlemode Transceiver

    Description Of Fiber Optic Transceiver


    Gigabit Ethernet has a long application history in the Telecom metro and backbone network for cross-region communication. The distance between various cities distributes from 40km to 200km above. The single-mode and bidirectional fiber optic networks are the key player in the long-haul metro connection. This 1.25G SFP 160km SMD optics offers the operators stable data transmission at the 1.25Gbps data speed and up to 160km distance via G.652 SMF.

    As an alternative to Juniper EX-1GE-EZX-160, TSFP-1.25G-160D is a cost-effective compatible solution with similar quality and high performance. It uses mature Chinese domestic optical components for cost savings with strict quality control through PCB raw material check, high & low-temperature operation, aging testing, optical parameters check by error detector, oscilloscope, and compatibility testing via online brand switches to ensure the stable fiber optic connection and network quality.

    It is one of our popular selling items for telecom applications.

    Preferred by many operators for the 1000BASE-EZX application

    Our history sales are more than 20kpcs !!!

    Welcome RFQ for any project request

    Specification Of Fiber Optic Transceiver

    Data Speed

    1.25Gbps

    Interface

    SFP port

    Connector

    LC Duplex

    Wavelength

    1550nm

    Transmission

    160km on OS2 SMF

    Lower Power Dispation

    1.2W max

    ROHS compliant

    Yes, Support

    Lead Free

    Yes, Support

    Feature Of Fiber Optic Transceiver

    • Transceiver unit with independent

    • EML laser transmitter and APD photo-detector

    • Dual Data-rate of 1.25Gbps/1.0625Gbps Operation

    • Up to 160KM transmission distance on 9/125μm SMF

    • Standard serial ID information compliant with SFP MSA

    • SFP MSA package with duplex LC connector

    • Digital Diagnostic Monitor Interface

    • Very low EMI and excellent ESD protection

    • +3.3V single power supply

    • Wide operating temperature range

    • RoHS compliant

    • Case operating temperature

    • Commercial: 0°C to +70°C

    • Extended: -10°C to +80°C

    • Industrial: -40°C to +85°C

    Application of Fiber Optic Transceiver

    • Gigabit Ethernet

    • Enterprise, Data Center, Security Network

    SFP Transceiver List

    ModelWavelengthDistanceFiber TypeConnector
    TSFP-1.25G-MMDSX - 850nm550mMMFLC Duplex
    TSFP-1.25G-SMDLX - 1310NM10kmSMFLC Duplex
    TSFP-1.25G-20DLH - 1310NM20kmSMFLC Duplex
    TSFP-1.25G-40DEX - 1310nm40kmSMFLC Duplex
    TSFP-1.25G-60DEX60, 1310nm60kmSMFLC Duplex
    TSFP-1.25G-80DZX, 1550nm80kmSMFLC Duplex
    TSFP-1.25G-100DZX100, 1550nm100kmSMFLC Duplex
    TSFP-1.25G-120DZX120, 1550nm120kmSMFLC Duplex
    TSFP-1.25G-160D

    ZX160, 1550nm

    160kmSMFLC Duplex
    TBD-1.25G-10A/BLX - 1310/1550nm BIDI10kmSMFLC Simplex
    TBD-1.25G-20A/BLH - 1310/1550nm BIDI20kmSMFLC Simplex
    TBD-1.25G-40A/BEX - 1310/1550nm BIDI40kmSMFLC Simplex
    TBD-1.25G-60A/BEX60 - 1310/1550nm BIDI60kmSMFLC Simplex
    TBD-1.25G-80A/BZX - 1490/1550nm BIDI80kmSMFLC Simplex
    TBD-1.25G-100A/BZX100 - 1490/1550nm BIDI100kmSMFLC Simplex
    TBD-1.25G-120A/BZX120 - 1490/1550nm BIDI120kmSMFLC Simplex
    TBD-1.25G-160A/BZX160 - 1490/1550nm BIDI160kmSMFLC Simplex
    TCM-1.25G-20-XXLX/LH - 1271-1611nm CWDM10-20kmSMFLC Duplex
    TCM-1.25G-40-XXEX - 1271-1611nm CWDM40kmSMFLC Duplex
    TCM-1.25G-80-XXZX - 1271-1611nm CWDM80kmSMFLC Duplex
    TCM-1.25G-120-XXZX120 - 1271-1611nm CWDM120kmSMFLC Duplex
    TCM-1.25G-160-XXZX160 - 1271-1611nm CWDM160kmSMFLC Duplex
    TDM-1.25G-40-XXEX - C Band ITU DWDM40kmSMFLC Duplex
    TDM-1.25G-80-XXZX - C Band ITU DWDM80kmSMFLC Duplex
    TDM-1.25G-120-XXZX120 - C Band ITU DWDM120kmSMFLC Duplex
    TDM-1.25G-160-XXZX160 - C Band ITU DWDM160kmSMFLC Duplex
    155M/622M850-1550nm/BIDI0.55-160kmMMF/SMFLC
    2.5G850-1550nm/BIDI/XWDM0.3 -120kmMMF/SMFLC
    6.25G850-1550nm0.3 - 20kmMMF/SMFLC
    4.5G/8.5G850-1550nm/CWDM0.5 - 40kmMMF/SMFLC

    FAQ

    • Can I use your 1.25G Singlemode SFP with other brand SFP?

    Yes, It can interoperate with other brand 1.25G Singlemode 1550nm SFP

    • What's your optic warranty terms?

    1 year free replace, 3 years free repairment for non-human made hardware defects

    • What if I find your optics are not satifiying with our fiber link, occurs critical signal losses?

    Our optics are made up of fresh new components through strict QC control on digital & optical parameters, performance and reliability tests through error detectors, eye diagrams and Industrial ovens. The qualification ratio is over 99.9%. If any quality defects occurs within the warranty, we will arrange the replace/repair service immediately.
