Brocade XBR-000218 57-1000114-01 10G Fibre Channel SFP+ Transceiver 850nm 300m LC MMF Module

TOPSTAR TECHNOLOGY INDUSTRIAL CO., LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Brocade XBR-000218 57-1000114-01 10G Fibre Channel SFP+ Transceiver 850nm 300m LC MMF Module from wholesalers

    Buy cheap Brocade XBR-000218 57-1000114-01 10G Fibre Channel SFP+ Transceiver 850nm 300m LC MMF Module from wholesalers
    • Buy cheap Brocade XBR-000218 57-1000114-01 10G Fibre Channel SFP+ Transceiver 850nm 300m LC MMF Module from wholesalers
    • Buy cheap Brocade XBR-000218 57-1000114-01 10G Fibre Channel SFP+ Transceiver 850nm 300m LC MMF Module from wholesalers

    Brocade XBR-000218 57-1000114-01 10G Fibre Channel SFP+ Transceiver 850nm 300m LC MMF Module

    Ask Lasest Price
    Brand Name : Brocade
    Model Number : 57-1000114-01
    Certification : UL/CSA 60950, CDRH Class 1
    Price : price is negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 100pcs per month
    Delivery Time : 2-3 working days
    • Product Details
    • Company Profile

    Brocade XBR-000218 57-1000114-01 10G Fibre Channel SFP+ Transceiver 850nm 300m LC MMF Module

    Brocade XBR-000218 57-1000114-01 10G Fibre Channel SFP+ Transceiver 850nm 300m LC MMF Module


    Brocade 10Gb/s SWL FC SFP+ Transceiver Specifications

    The Brocade 10.3125Gb/s SR SFP+ is an 850-nm SFP that complies with 10G Ethernet specifications.

    Product highlights include:

    • 850-nm multimode VCSEL transmitter

    • IEEE 802.3ae compliance for 10.3125Gb/s operation

    • Diagnostic features per SFF-8472,

    Diagnostic Monitoring Interface for Optical Transceivers, providing realtime monitoring of:

    − Transmitted optical power

    − Received optical power

    − Laser bias current

    − Temperature

    − Supply voltage

    • Industry-standard LC duplex connector

    • 300m link lengths at 10.3125Gb/s on OM3 fiber

    • IEC 60825-1 Class 1/ CDRH Class 1 laser, eye-safe

    • RoHS compliance Caution

    • Do not look through the optical ports, as it is a potential eye hazard.

    • The SFP is an ESD sensitivity Class 1 device. It should be handled accordingly.


    Ordering Part Number

    • XBR-000180 (1-pack)

    • XBR-000181 (8-pack)


    Regulatory and Standards Compliance

    North America: UL/CSA 60950, CDRH Class 1

    European Union: EN 60950, EN 60825 Class 1


    Parameters for the 10Gb/s SWL 300M FC SFP+ Transceiver Module:

    PerformanceEthernet: 10.3125Gb/s line speed, full duplex
    MediaHot-pluggable, industry-standard SFP+, LC connector; Short Reach (SR)
    Operating Parameters

    Transmit (Tx):

    • Wavelength: 840 nm to 860 nm

    • Average power: ≤ –1 dBm

    • RIN: –128 dB-Hz max

    • Extinction ratio: 3 dB


    Receive (Rx):

    • Wavelength: 840 nm to 860 nm

    • Average power: –1 dBm max

    • Optical return loss: 12 dB min

    • Unstressed sensitivity: 77 µW, −11.1 dBm

    • SRS OMA: 180 µW, –7.5 dBm

    • 3-dB cutoff maximum: 12.3 GHz

    Operating Distances

    OM2 50 µm (500 MHz×km):

    • 10.3125Gb/s Ethernet: Distance: 82 meters max

    OM3 50 µm (2000 MHz×km):

    • 10.3125Gb/s Ethernet: Distance: 300 meters max

    Size

    Width: 14.80 mm (0.58 inches)

    Height: 12.21 mm (0.48 inches)

    Depth: 56.70 mm (2.23 inches)

    Storage Temperature−40°C to 85°C (−40°F to 185°F)
    Power Dissipation1.0W

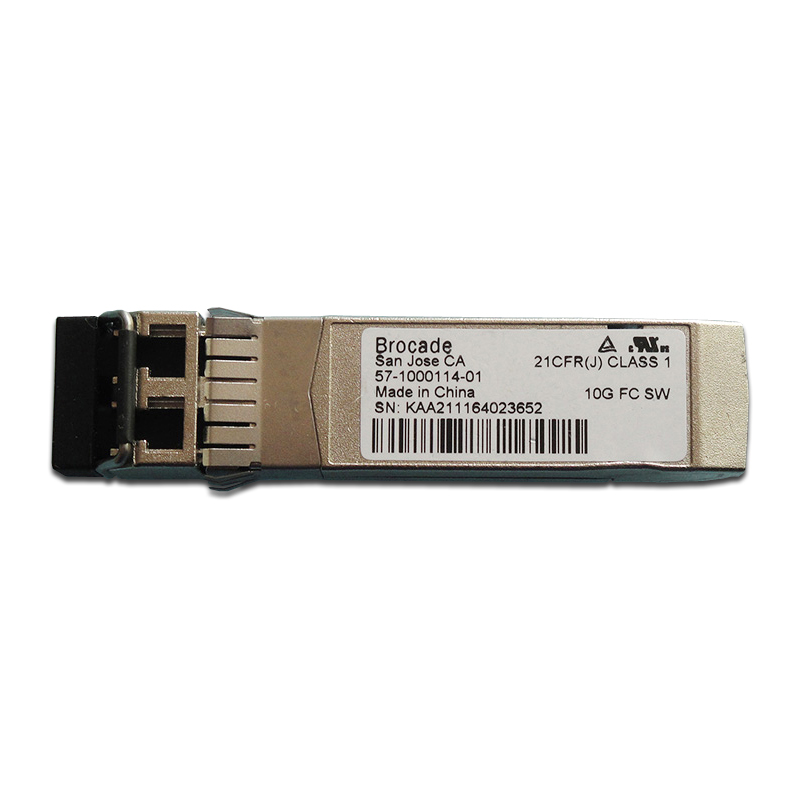

    Photo for Brocade 10Gb/s SWL FC SFP+ Transceiver



    FAQ

    Q1. Except for this Brocade 10Gb/s SWL FC SFP+ Transceiver optical modules, what else Brocade sfp can you offer?

    A1: pls check the below form for the Brocade optical module we can offer;


    Data Rate
    Description
    Manufacturing
    Part Number
    Brocade Ordering
    Part Number
    4x32G FC QSFP+
    SWL
    57-1000351-01
    XBR-000275 (1-pack)
    4x32G FC QSFP+
    SWL
    57-1000490-01
    XBR-000475 (1-pack)
    4x32G FC QSFP+
    2 km
    57-1000480-01
    XBR-000285 (1-pack)
    64G FC SFP+
    SWL
    57-1000495-01
    XBR-000462 (1-pack)
    XBR-000463 (8-pack)
    64G FC SFP+
    LWL - 10 km
    57-1000496-01
    XBR-000468 (1-pack)
    XBR-000469 (8-pack)
    64G FC SFP+
    ELWL - 25 km
    57-1000497-01
    XBR-000466 (1-pack)
    32G FC SFP+
    SWL
    57-1000333-01
    XBR-000212 (1-pack)
    XBR-000213 (8-pack)
    32G FC SFP+
    SWL
    57-1000485-01
    XBR-000412 (1-pack)
    XBR-000413 (8-pack)
    32G FC SFP+
    LWL - 10 km
    57-1000332-01
    XBR-000238 (1-pack)
    XBR-000239 (8-pack)
    32G FC SFP+
    LWL - 10 km
    57-1000486-01
    XBR-000438 (1-pack)
    XBR-000439 (8-pack)
    32G FC SFP+
    ELWL - 25 km
    57-1000355-01
    XBR-000278 (1-pack)
    32G FC SFP+
    ELWL - 25 km
    57-1000494-01
    XBR-000478 (1-pack)
    32G FC SFP+
    ELWL - 25 km
    57-1000498-01
    XBR-000479 (1-pack)
    16G FC SFP+
    SWL
    57-0000088-01
    XBR-000192 (1-pack)
    XBR-000193 (8-pack)
    16G FC SFP+
    SWL
    57-1000487-01
    XBR-000492 (1-pack)
    XBR-000493 (8-pack)
    16G FC SFP+
    LWL - 10 km
    57-0000089-01
    XBR-000198 (1-pack)
    XBR-000199 (8-pack)
    16G FC SFP+
    LWL - 10 km
    57-1000488-01
    XBR-000498 (1-pack)
    XBR-000499 (8-pack)
    16G FC SFP+
    ELWL - 25 km
    57-1000262-01
    XBR-000258 (1-pack)
    16G FC SFP+
    ELWL - 25 km
    57-1000489-01
    XBR-000458 (1-pack)
    8G FC SFP+
    SWL
    57-1000117-01
    XBR-000163 (1-pack)
    XBR-000164 (8-pack)
    8G FC SFP+LWL - 10 km
    57-1000027-02
    XBR-000153 (1-pack)
    XBR-000172 (8-pack)
    8G FC SFP+ELWL - 25 km
    57-0000080-01
    XBR-000174 (1-pack)

    Q2:Is this genuine Brocade Original 10G SWL FC SFP+ Transceiver?
    A2:Yes, Topstar is the top lead Brocade distributor in China, we sell the brand SFP since year 2006 and never sell fake or copy brand items.



    Q3:Does your SFP provide a quality warranty?
    A3:​For brocade SFP, we offer 1-year warranty. Any quality problem, we will replace for you;



    Q4:Can you send this SFP module to my place? and how long does it take?

    ​A4:Yes, we can provide door to door shipment via DHL, FEDEX, Aramex and UPS etc logistic services.
    The express logistic generally takes 5-12 days to global.
