    Brocade 57-1000294-02 FC QSFP+ Optical Transceiver 64G 4x16G SWL XBR-000245 Module

    Ask Lasest Price
    Brand Name : Brocade
    Model Number : 57-1000294-02
    Certification : UL/CSA 62368, CDRH Class 1
    Price : price is negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 100pcs per month
    Delivery Time : 2-3 working days
    • Product Details
    • Company Profile

    Brocade 57-1000294-02 FC QSFP+ Optical Transceiver 64G 4x16G SWL XBR-000245 Module

    Brocade 57-1000294-02 FC QSFP+ Optical Transceiver 64G 4x16G SWL XBR-000245 module


    Brocade 4x16G SWL FC SFP+Transceiver Specification

    Brocade® 4×16 GFC Short Wavelength (SWL) (100 M) Quad Small Form-Factor Pluggables (QSFPs), part of the Brocade family of optical transceivers, are optimized to fully leverage Brocade 16 GFC backbone and switch products. Together, these optical transceivers provide state-of-theart performance, helping IT organizations achieve new levels of infrastructure consolidation while expanding the capabilities of their applications and services.


    Brocade 4×16 GFC SWL QSFPs are multi-rated 850 nm QSFPs that comply with 14.025 Gbps Fibre Channel specifications. Product highlights include:

    • 850 nm multimode VCSEL transmitter

    • Diagnostic features per SFF-8472 “Diagnostic Monitoring Interface for Optical Transceivers,”

    providing real-time monitoring of:

    – Transmitted optical power

    – Received optical power

    – Laser bias current

    – Temperature

    – Supply voltage

    • Industry-standard MTP 1×12 ribbon cable connector

    • 100 M link length on OM4 fiber

    • IEC 60825-1 Class 1/CDRH Class 1 laser, eye-safe

    • Compliance with Restriction on Hazardous Substances (RoHS) directive


    Brocade XBR-000245 4x16G FC QSFP+ SWL transceiver module - the perfect solution for high-performance data center networks. This powerful module boasts impressive speed and reliability, making it ideal for handling even the most demanding workloads.

    With its compact form factor and easy-to-install design, the Brocade XBR-000245 is a must-have for any modern data center. Whether you're building a new network from scratch or upgrading an existing one, this transceiver module is sure to exceed your expectations.


    Ordering Part Number

    XBR-000245


    Parameters for the 4x16G SWL FC SFP+ Transceiver Module:


    PerformanceFibre Channel: 4×14.025 Gbps line speed, full duplex
    MediaHot-pluggable, industry-standard Quad Small Form-Factor Pluggable (QSFP), MTP 1×12 ribbon cable connector, Short Wavelength (SWL)
    Operating Parameters

    Transmit (Tx):

    Wavelength: 840 to 860 nm Spectral width: 0.50 nm

    Average power: −7.6 to +2.4 dBm per channel

    RIN: −128 dB/Hz max

    Optical return loss: 12 dB max

    OMA: −2.5 to +3 dBm per channel


    Receive (Rx):

    Wavelength: 840 to 860 nm

    Average power: 2.4 dBm max per channel

    Optical return loss: −12 dB min SRS

    OMA: −10 dBm max per channel

    3 dB cutoff maximum: 18 GHz

    Size

    Width: 18.35 mm (0.72 in.)

    Height: 12.67 mm (0.50 in.)

    Depth: 71.00 mm (2.82 in.)

    Storage Temperature−40°C to +85°C (−40°F to +185°F)
    Power Dissipation1.5W

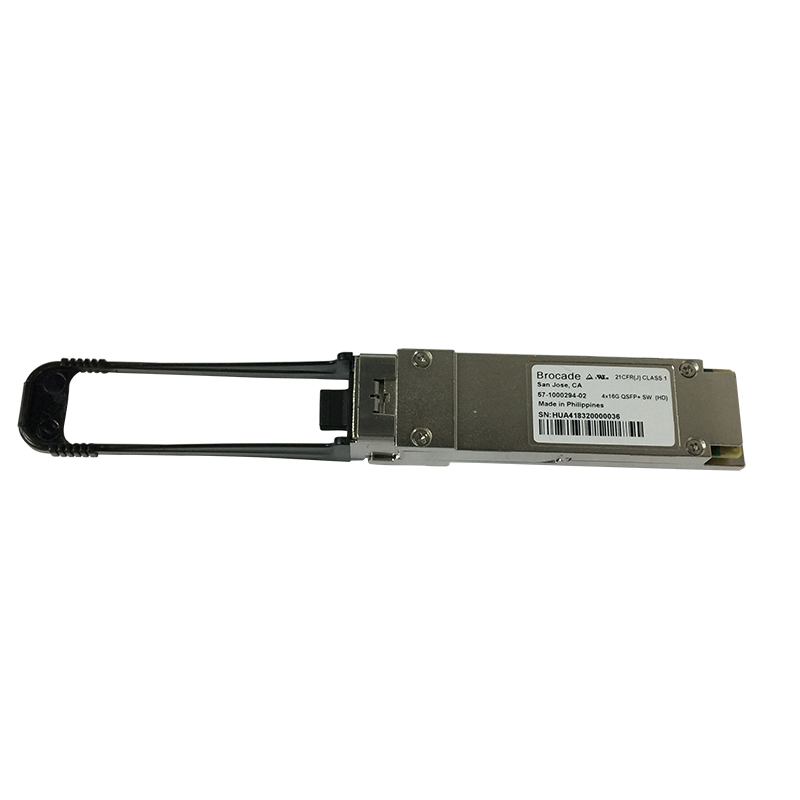

    Photo for Brocade 4x16G SWL FC SFP+ Transceiver



    FAQ

    Q1. Except for this Brocade 4x16G SWL FC SFP+ Transceiver optical modules, what else Brocade sfp can you offer?

    A1: pls check the below form for the Brocade optical module we can offer;


    Data Rate
    Description
    Manufacturing
    Part Number
    Brocade Ordering
    Part Number
    4x32G FC QSFP+
    SWL
    57-1000351-01
    XBR-000275 (1-pack)
    4x32G FC QSFP+
    SWL
    57-1000490-01
    XBR-000475 (1-pack)
    4x32G FC QSFP+
    2 km
    57-1000480-01
    XBR-000285 (1-pack)
    64G FC SFP+
    SWL
    57-1000495-01
    XBR-000462 (1-pack)
    XBR-000463 (8-pack)
    64G FC SFP+
    LWL - 10 km
    57-1000496-01
    XBR-000468 (1-pack)
    XBR-000469 (8-pack)
    64G FC SFP+
    ELWL - 25 km
    57-1000497-01
    XBR-000466 (1-pack)
    32G FC SFP+
    SWL
    57-1000333-01
    XBR-000212 (1-pack)
    XBR-000213 (8-pack)
    32G FC SFP+
    SWL
    57-1000485-01
    XBR-000412 (1-pack)
    XBR-000413 (8-pack)
    32G FC SFP+
    LWL - 10 km
    57-1000332-01
    XBR-000238 (1-pack)
    XBR-000239 (8-pack)
    32G FC SFP+
    LWL - 10 km
    57-1000486-01
    XBR-000438 (1-pack)
    XBR-000439 (8-pack)
    32G FC SFP+
    ELWL - 25 km
    57-1000355-01
    XBR-000278 (1-pack)
    32G FC SFP+
    ELWL - 25 km
    57-1000494-01
    XBR-000478 (1-pack)
    32G FC SFP+
    ELWL - 25 km
    57-1000498-01
    XBR-000479 (1-pack)
    16G FC SFP+
    SWL
    57-0000088-01
    XBR-000192 (1-pack)
    XBR-000193 (8-pack)
    16G FC SFP+
    SWL
    57-1000487-01
    XBR-000492 (1-pack)
    XBR-000493 (8-pack)
    16G FC SFP+
    LWL - 10 km
    57-0000089-01
    XBR-000198 (1-pack)
    XBR-000199 (8-pack)
    16G FC SFP+
    LWL - 10 km
    57-1000488-01
    XBR-000498 (1-pack)
    XBR-000499 (8-pack)
    16G FC SFP+
    ELWL - 25 km
    57-1000262-01
    XBR-000258 (1-pack)
    16G FC SFP+
    ELWL - 25 km
    57-1000489-01
    XBR-000458 (1-pack)
    8G FC SFP+
    SWL
    57-1000117-01
    XBR-000163 (1-pack)
    XBR-000164 (8-pack)
    8G FC SFP+LWL - 10 km
    57-1000027-02
    XBR-000153 (1-pack)
    XBR-000172 (8-pack)
    8G FC SFP+ELWL - 25 km
    57-0000080-01
    XBR-000174 (1-pack)

    Q2:Is this genuine Brocade Original 4x16G 100M FC SFP Transceiver?
    A2:Yes, Topstar is the top lead Brocade distributor in China, we sell the brand SFP since year 2006 and never sell fake or copy brand items.



    Q3:Does your SFP provide a quality warranty?
    A3:​For brocade SFP, we offer 1-year warranty. Any quality problem, we will replace for you;



    Q4:Can you send this SFP module to my place? and how long does it take?

    ​A4:Yes, we can provide door to door shipment via DHL, FEDEX, Aramex and UPS etc logistic services.
    The express logistic generally takes 5-12 days to global.
