    Brocade 57-0000088-01 Multi Mode Fiber Channel Transceiver SFP+ Module

    Ask Lasest Price
    Brand Name : Brocade
    Model Number : 57-0000088-0
    Certification : UL/CSA 60950, CDRH Class 1
    Price : price is negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 100pcs per month
    Delivery Time : 2-3 working days
    • Product Details
    • Company Profile

    Brocade 57-0000088-01 Multi Mode Fiber Channel Transceiver SFP+ Module

    Brocade 57-0000088-01 SFP+ Optical Module 16G Multi Mode Fiber Channel Transceiver


    Brocade 57-0000088-01 16Gb/s SWL FC SFP+ Transceiver Specifications

    Brocade 16 Gbit/sec SWL SFPs are hot-swappable, low-voltage (3.3 V) digital diagnostic optical transceivers that support high-speed serial links over multimode optical fiber at signaling rates up to 8.5 Gbit/sec. They comply with SFP+ mechanical (SFF-8432), optical, and electrical specifications (FC-PI-4) for LC duplex transceivers.


    The Brocade 16 Gbit/sec SWL optical transceiver is a multi-rated 850 nm SFP that complies with 8.5/4.25/2.125 Gbit/ sec Fibre Channel specifications.


    Product Brocade 57-0000088-01 16Gb/s highlights include:

    • 850 nm multimode VCSEL transmitter

    • FC-PI-4 compliance for 8.5/4.25/2.125 Gbit/sec operation

    • Diagnostic features per SFF-8472 “Diagnostic Monitoring Interface for Optical Transceivers,”

    providing real-time monitoring of:

    – Transmitted optical power

    – Received optical power

    – Laser bias current

    – Temperature

    – Supply voltage

    • Industry-standard LC duplex connector

    • 150 m link lengths at 8.5 Gbit/secon OM3 fiber

    • IEC 60825-1 Class 1/CDRH Class 1 laser, eye-safe

    • Compliance with Restriction on Hazardous Substances (RoHS) directive


    Parameters for the 16Gb/s SWL FC SFP+ Transceiver Module:

    PerformanceFibre Channel: 2.125, 4.250, and 8.5 Gbit/sec line speed, full duplex; auto-sensing of 2, 4, and 8 Gbit/sec port speeds
    Media

    Hot-pluggable, industry-standard Small Form-Factor Pluggable (SFP+), LC connector; Short Wavelength (SWL)

    Operating Parameters

    Transmit (Tx):

    Wavelength: 840 to 860 nm

    Spectral width: 0.65 nm

    Average power: -8 dBm

    RIN: -128 dB/Hz max

    Optical return loss: -12 dB

    minimum OMA: 302 μW, -5.2 dBm


    Receive (Rx):

    Wavelength: 770 to 860 nm

    Average power: 0 dBm

    Optical return loss: -12 dB

    Unstressed sensitivity: 76 μW, -11.2 dBm

    SRS OMA: 148 μW, -8.3 dBm

    3 dB cutoff maximum: 12 GHz

    Operating distances

    OM1 62.5 μm (200-500 MHz*km) Distance Loss

    2 Gbit/sec Fibre Channel 0.5 to 150 m 2.10 dB

    4 Gbit/sec Fibre Channel 0.5 to 70 m 1.78 dB

    8 Gbit/sec Fibre Channel 0.5 to 21 m 1.58 dB


    OM2 50 μm (500 MHz*km) Distance Loss

    2 Gbit/sec Fibre Channel 0.5 to 300 m 2.62 dB

    4 Gbit/sec Fibre Channel 0.5 to 150 m 2.06 dB

    8 Gbit/sec Fibre Channel 0.5 to 50 m 1.68 dB


    OM3 50 μm (1500 MHz*km) Distance Loss

    2 Gbit/sec Fibre Channel 0.5 to 500 m 3.31 dB

    4 Gbit/sec Fibre Channel 0.5 to 380 m 2.88 dB

    8 Gbit/sec Fibre Channel 0.5 to 150 m 2.04 dB

    Size

    Width: 14.00 mm (0.55 inches)

    Height: 12.40 mm (0.49 inches)

    Depth: 57.50 mm (2.26 inches)

    Storage Temperature−40°C to 85°C (−40°F to 185°F)
    Power Dissipation0.8W

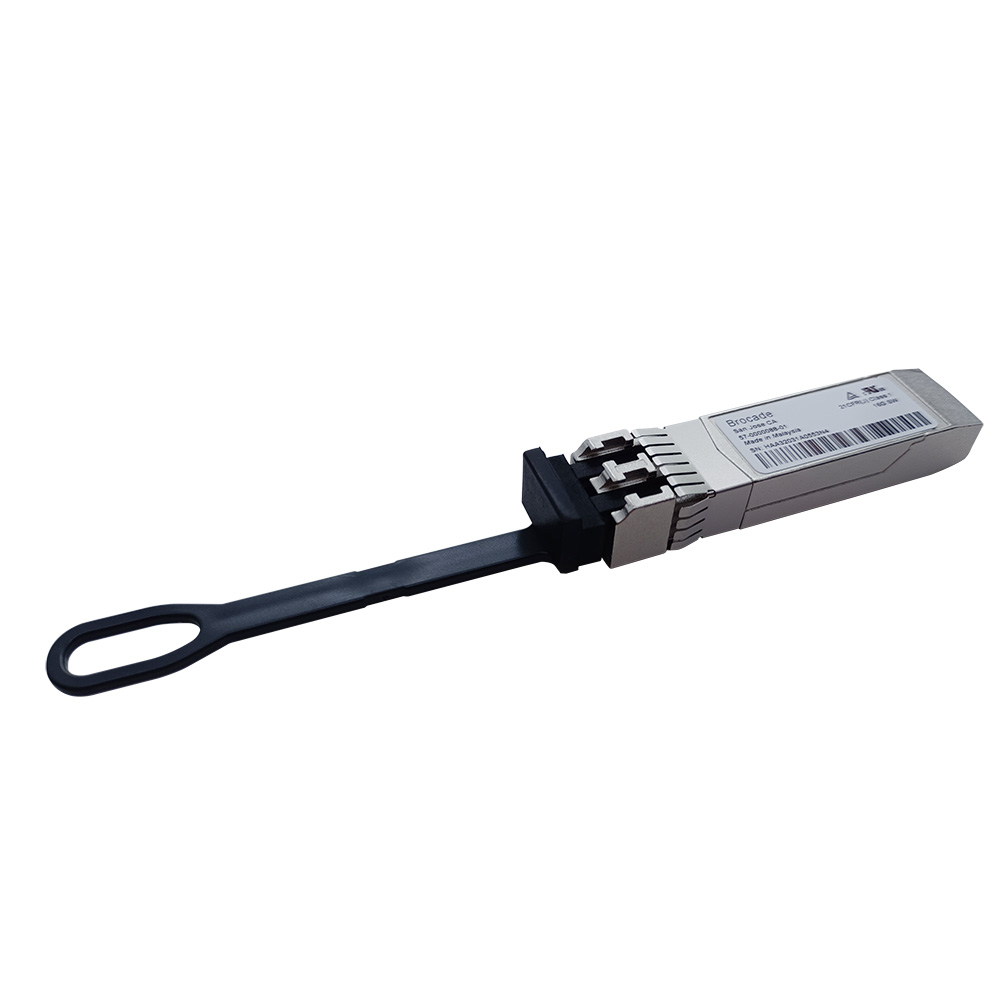

    Photo for Brocade 16Gb/s 57-0000088-01 SWL FC SFP+ Transceiver



    FAQ

    Q1. Except for this Brocade 8Gb/s SWL FC SFP+ Transceiver optical modules, what else Brocade sfp can you offer?

    A1: pls check the below form for the Brocade optical module we can offer;


    Data Rate
    Description
    Manufacturing
    Part Number
    Brocade Ordering
    Part Number
    4x32G FC QSFP+
    SWL
    57-1000351-01
    XBR-000275 (1-pack)
    4x32G FC QSFP+
    SWL
    57-1000490-01
    XBR-000475 (1-pack)
    4x32G FC QSFP+
    2 km
    57-1000480-01
    XBR-000285 (1-pack)
    64G FC SFP+
    SWL
    57-1000495-01
    XBR-000462 (1-pack)
    XBR-000463 (8-pack)
    64G FC SFP+
    LWL - 10 km
    57-1000496-01
    XBR-000468 (1-pack)
    XBR-000469 (8-pack)
    64G FC SFP+
    ELWL - 25 km
    57-1000497-01
    XBR-000466 (1-pack)
    32G FC SFP+
    SWL
    57-1000333-01
    XBR-000212 (1-pack)
    XBR-000213 (8-pack)
    32G FC SFP+
    SWL
    57-1000485-01
    XBR-000412 (1-pack)
    XBR-000413 (8-pack)
    32G FC SFP+
    LWL - 10 km
    57-1000332-01
    XBR-000238 (1-pack)
    XBR-000239 (8-pack)
    32G FC SFP+
    LWL - 10 km
    57-1000486-01
    XBR-000438 (1-pack)
    XBR-000439 (8-pack)
    32G FC SFP+
    ELWL - 25 km
    57-1000355-01
    XBR-000278 (1-pack)
    32G FC SFP+
    ELWL - 25 km
    57-1000494-01
    XBR-000478 (1-pack)
    32G FC SFP+
    ELWL - 25 km
    57-1000498-01
    XBR-000479 (1-pack)
    16G FC SFP+
    SWL
    57-0000088-01
    XBR-000192 (1-pack)
    XBR-000193 (8-pack)
    16G FC SFP+
    SWL
    57-1000487-01
    XBR-000492 (1-pack)
    XBR-000493 (8-pack)
    16G FC SFP+
    LWL - 10 km
    57-0000089-01
    XBR-000198 (1-pack)
    XBR-000199 (8-pack)
    16G FC SFP+
    LWL - 10 km
    57-1000488-01
    XBR-000498 (1-pack)
    XBR-000499 (8-pack)
    16G FC SFP+
    ELWL - 25 km
    57-1000262-01
    XBR-000258 (1-pack)
    16G FC SFP+
    ELWL - 25 km
    57-1000489-01
    XBR-000458 (1-pack)
    8G FC SFP+
    SWL
    57-1000117-01
    XBR-000163 (1-pack)
    XBR-000164 (8-pack)
    8G FC SFP+LWL - 10 km
    57-1000027-02
    XBR-000153 (1-pack)
    XBR-000172 (8-pack)
    8G FC SFP+ELWL - 25 km
    57-0000080-01
    XBR-000174 (1-pack)

    Q2:Is this genuine Brocade Original 8G SWL FC SFP+ Transceiver?
    A2:Yes, Topstar is the top lead Brocade distributor in China, we sell the brand SFP since year 2006 and never sell fake or copy brand items.



    Q3:Does your SFP provide a quality warranty?
    A3:​For brocade SFP, we offer 1-year warranty. Any quality problem, we will replace for you;



    Q4:Can you send this SFP module to my place? and how long does it take?

    ​A4:Yes, we can provide door to door shipment via DHL, FEDEX, Aramex and UPS etc logistic services.
    The express logistic generally takes 5-12 days to global.
