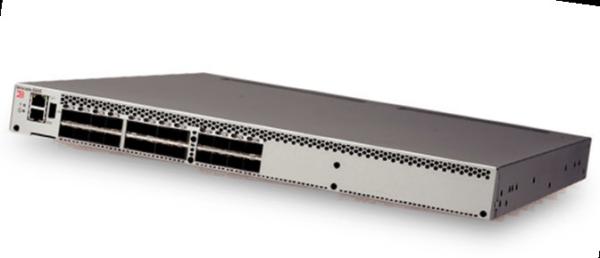

    Brocade BR-6505-24-16G-1R 16gb Fibre Channel Switch With 24 Active Port

    Ask Lasest Price
    Brand Name : Brocade
    Model Number : BR-6505-24-16G-1R
    Certification : CE SA KCC
    Price : Price is negotiable
    Payment Terms : T/T, Western Union, MoneyGram, Paypal,Credit Card
    Supply Ability : 500pcs per month
    Delivery Time : 3-5 working days
    • Product Details
    • Company Profile

    Brocade BR-6505-24-16G-1R 16gb Fibre Channel Switch With 24 Active Port

    Brocade BR-6505-24-16G-1R 16GB FC Switch With 24 Licensed Active Port


    The Gen 5 Brocade 6505 switch's Fibre Channel ports is Switch mode (default): 12- and 24-port configurations (12-port increment through

    Ports on Demand [PoD] license); E, F, M, D ports Brocade Access Gateway default port mapping: 16 F_Ports, 8 N_Ports; It use Media types including 8 Gbps and 16 Gbps SFP, Brocade 6505 requires Brocade hot-pluggable SFP+, LC connector; 8 Gbps SWL, LWL, ELWL;It also requires Brocade hot-pluggable SFP+, LC connector; 16 Gbps SWL, LWL, ELWL Fibre Channel distance subject to fiber optic cable and port speed; It's maximum fabric latency for locally switched ports is 700 ns;Forward Error Correction (FEC) adds 400ns between E_Ports (enabled by default).

    Main featuresSystems Architecture
    Power consumption80 W with all 24 ports populated with 16 Gbps SWL optics 60 W for empty chassis with no optics
    ScalabilityFull-fabric architecture with a maximum of 239 switches
    Certified maximum6000 active nodes; 56 switches, 19 hops in Brocade Fabric OS® fabrics; larger fabrics certified as required
    Management access10/100 Mbps Ethernet (RJ-45), in-band over Fibre Channel, serial port (RJ-45), and one USB port
    ISL TrunkingFrame-based Trunking with up to eight 16 Gbps ports per ISL trunk; up to 128 Gbps per ISL trunk. Exchange-based load balancing across ISLs with DPS included in Brocade Fabric OS.
    USBOne USB port for system log file downloads or firmware upgrades
    VibrationOperating: 0.5 g sine, 0.4 grms random, 5 Hz to 500 Hz Non-operating: 2.0 g sine, 1.1 grms random, 5 Hz to 500 Hz
    Power supply

    Base switch includes a single, hot-swappable power supply with integrated system cooling fans.

    Optional dual redundant hot-swappable power supply.


    HIGHLIGHTS

    Fabric services
    Note: Some fabric services do not apply or are unavailable in Brocade Access Gateway mode.
    Monitoring and Alerting Policy Suite (MAPS); Flow Vision; Top Talkers for E_ Ports, F_Ports, and Fabric mode; Brocade Adaptive Networking (Ingress Rate Limiting,Traffic Isolation, QoS); Bottleneck Detection; Brocade Advanced Zoning (default zoning, port/WWN zoning, broadcast zoning, peer zoning); Dynamic Fabric Provisioning (DFP); Dynamic Path Selection (DPS); Brocade Extended Fabrics; Enhanced credit recovery; FDMI; Frame Redirection; Frame-based Trunking; FSPF; IPoFC; Brocade ISL Trunking; Management Server; NPIV; NTP v3; Port Fencing; Registered State Change Notification (RSCN); Reliable Commit Service (RCS); Server Application Optimization (SAO); Simple Name Server
    (SNS)
    Supported management software
    HTTP, SNMP v1/v3 (FE MIB, FC Management MIB), SSH; Auditing, Syslog; Brocade Advanced Web Tools; Brocade Network Advisor SAN Enterprise or Brocade Network Advisor SAN Professional/Professional Plus; Command Line Interface (CLI); SMI-S compliant; Administrative
    Domains; trial licenses for add-on capabilities;

    FAQ

    Q1. What Brocade SFP optical module can be used on this Brocade 6505 switch?

    A1:57-1000488-01 57-1000262-01 XBR-000258 etc Brocade 2G 4G 8G 16G whole series SFP optical modules can be used;


    Q2. How does your company do regarding quality control?

    A2: All our Brcoade switch were from formal channels, and we only sell original type products for the past 16 years;


    Q3. What are the trade terms?

    A3: Ex-w, COF, CIP, FOB as client requested;
