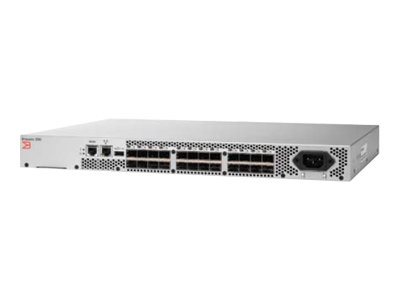

    BR-310-0008 Brocade 300 San Switch For 8G Fiber Channel Network

    Ask Lasest Price
    Brand Name : Brocade
    Model Number : BR-310-0008
    Certification : CE SA
    Price : Price is negotiable
    Payment Terms : T/T, Western Union, MoneyGram, Paypal,Credit Card
    Supply Ability : 100pcs per month
    Delivery Time : 3-5 working days
    • Product Details
    • Company Profile

    BR-310-0008 Brocade 300 San Switch For 8G Fiber Channel Network

    BR-310-0008 Brocade 300 SAN Fabric Switch For 8G Fiber Channel Network


    Brocade 300 FC Storage Area Network Switch up to 24 ports

    The Brocade 300 significantly increases performance and functionality for SANs at an entry-level price. Based on sixth-generation Brocade technology, the Brocade 300 combines auto-sensing 1, 2, 4, and 8 Gbps throughput with features that greatly enhance fabric operation. The evolutionary design provides these capabilities while consuming less than 2.5 watts of power per port for exceptional power and cooling efficiency.
    The 8 Gbps Fibre Channel Brocade 300 provides a simple, affordable, single-switch solution for both new and existing SANs. To simplify deployment, the Brocade 300 features the EZSwitchSetup wizard and other usability and configuration enhancements, aswell as the optional Brocade Access Gatewaymode of operation. Moreover, it provides state-of-the-art performance and Ports On Demand scalability to support SAN expansion and enable long-term investment protection.

    Main featuresSystems Architecture
    Power consumption
    Nominal 48 watts; maximum 57 watts with 24 ports at 8 Gbps
    Input voltage
    85 to 264 VAC nominal
    Power supply
    Single, fixed power supply
    Management access
    10/100 Ethernet (RJ-45), in-band over Fibre Channel; serial port (RJ-45); USB; call-home integration enabled through Brocade DCFM,EFCM, and Fabric Manager
    ISL Trunking
    Frame-based trunking with up to eight 8 Gbps ports per ISL trunk with optional license;up to 64 Gbps per ISL trunk (8 ports × 8 Gbps [data rate])
    Exchange-based load balancing across ISLs with DPS included in Fabric OS
    USB
    1 USB port for firmware download, supportsave, and configuration upload/download
    Vibration
    Operating: 0.5 g sine, 0.4 grms random, 5 to 500Hz Non-operating and storage: 2.0 g sine, 1.1 grms random, 5 to 500 Hz


    The BR-310-0008 provides the following features:

    HIGHLIGHTS
    • Provides an affordable, flexible foundation for entry-level SANs, and an edge switch for core-to-edge SAN environments
    • Delivers up to 24 ports of 8 Gbps performance in an energy-efficient,optimized 1U form factor to support the most demanding server and virtual
    server deployments
    • Simplifies configuration and management with easy-to-use tools such as the Brocade EZSwitchSetup wizard, and is Microsoft Simple SAN- compatible
    • Enables “pay-as-you-grow” expansion with Ports On Demand scalability from 8 to 16 or 24 ports in 8-port increments
    • Offers dual functionality as either a full-fabric SAN switch or as an NPIV-enabled Brocade Access Gateway that simplifies server connectivity in
    heterogeneous enterprise fabrics
    • Protects existing device investments with auto-sensing 1, 2, 4, and 8 Gbps capabilities and native operation with Brocade and Brocade M-Series fabrics
    • Future-proofs investments by enabling organizations to use 4 Gbps SFPs today and upgrade to 8 Gbps SFPs when required

    FAQ

    Q1. What transceiver module can be used on this BR-310-0008 switch?

    A1: 57-0000080-01 XBR-000153 XBR-000174 etc 2G 4G 8G 16G whole series SFP optical modules can be used;


    Q2. What's the warranty time of your Brocade switch

    A2: 1 year for brand switch if any quality problem;


    Q3. what is the data traffic types for this switch?

    A3: Fabric switches supporting unicast, multicast (255 groups) and broadcast
