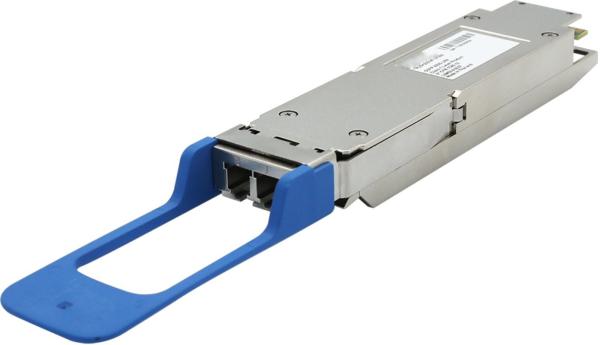

    OSFP 400G 1310NM 10KM LC LR4 TOSFP-400G-LR4 Fiber Optic Transceivers Enterprise Network

    Ask Lasest Price
    Brand Name : Top-Trans
    Model Number : TOSFP-400G-LR4
    Certification : CE FCC RoHS
    Price : Price is negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000pcs per Day
    Delivery Time : 1-3 working days
    • Product Details
    • Company Profile

    OSFP 400G 1310NM 10KM LC LR4 TOSFP-400G-LR4 Fiber Optic Transceivers Enterprise Network

    OSFP 400G 1310NM 10KM LC LR4 TOSFP-400G-LR4 Fiber Optic Transceivers Enterprise Network

    Fiber Optic Transceivers Enterprise Network of TOSFP-400G-LR4


    400GBASE-LR4 OSFP Transceiver for Single-mode data transmissions with 400G in optical fiber networks. Supports Ethernet, Fibre Channel or SONET/SDH applications in switches, routers, storage systems and other related hardware. TOPSTAR 400GBASE-LR4 OSFP Transceivers will be delivered with Digital Monitoring (DDM / DOM) function (for detailed information on the power supply, the laser bias current, laser output power, the laser input power and temperature) and can have different temperature ranges.


    Parameters of TOSFP-400G-LR4

    Fiber TypeSMF
    ConnectorLC
    TxEML CWDM
    RxPin
    Power Consumption (W)12W
    TX_Min (dBm)-1.4dBm
    TX_Max (dBm)4.5 dBm
    Single Power Supply3.3 V

    PRODUCT FEATURES of TOSFP-400G-LR4

    • 400 Gigabit Ethernet (425 Gbit/s) Transceiver
    • Aggregate data rate of 425 Gbit/s
    • Optical Interface: To be Compliant to 53.125 GBd PAM4 x 4 CWDM wavelength 400GBASE-LR4
    • Electrical Interface: Compliant to 26.5625 GBd PAM4 x 8 lane 400GAUI-8
    • Reach: Up to 6 km (IEEE)/10km (MSA) over duplex single mode fiber
    • Form Factor: Compliant to OSFP MSA hardware specification
    • Optical Transmitter: CWDM EA-DFB
    • Optical Receiver: PIN photodetector
    • Power consumption: 12 W max
    • Operating case temperature: 0C to 70C
    • Hot Z-Pluggable to 60-pad OSFP electrical connector
    • Latching mechanism: Pull tab
    • Management Interface: Two-wire common management interface
    • Environment: RoHS10 (2011/65/EU + 2015/863) compliant

    Application of TOSFP-400G-LR4

    • For data center, enterprise, and telecom applications

    FAQ

    Q1. Are your transceiver modules compatible with Cisco?

    A1: Yes, Topstar transceivers can compatible with Cisco. All the brand Topstar's SFP compatible as the fellowing:Cisco, Nortel, Juniper, 3COM, H3C, Alcatel-lucent, FOUNDRY, D-Link, EXTREME, Ruijie, NETGEAR, ZTE, Enterasys, ZyXEL, Linksys, Ericsson, DCN, Allied, SMC, Brocade, Force10, Hirschmann, Planet, Adtran, ASNTE, Trendnet, BDCOM, BLADE, BITWAY, Telco, Feixun...etc.


    Q2. How does your company do regarding quality control?

    A2: Every single optic individually tested in our test center , and also tested for compatibility on a variety of different brands of network equipment.


    Q3. What are the trade terms?

    A3: Lead Time: we keep 40,000pcs SFP in stock ready to ship.

    Payment term: T/T, Western Union, Alipay, Paypal, L/C and so on for your option.


    Q4. What is operating temperature range of optical modules?

    A4: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)


    Storage temperature range:-40 to +85°C(-40 to 185°F)

    We can supply according to your request.
