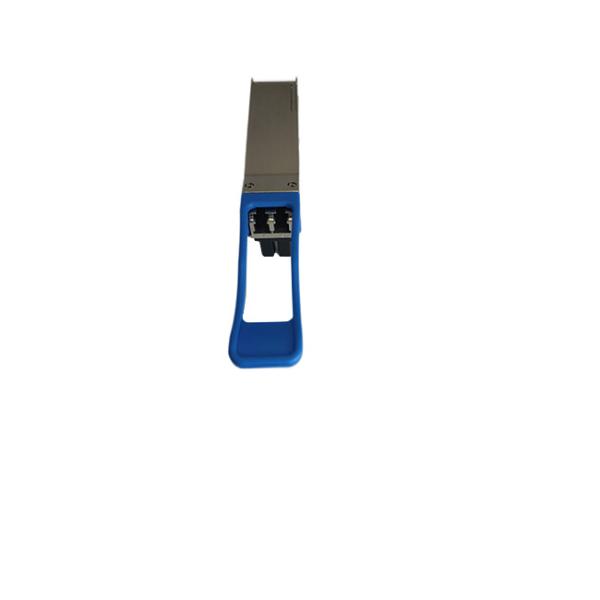

    Dell 407-BBQV Compatible 40G QSFP+ Transceiver 10KM SMF 40G PLR4 QSFP+ PSM

    Ask Lasest Price
    Brand Name : Top-Trans
    Model Number : TQSFP+-40G-PLR4
    Certification : ISO9001, ROHS, CE, FCC
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal,
    Supply Ability : 3000pcs per month
    Delivery Time : Negotiable
    • Product Details
    • Company Profile

    Dell 407-BBQV Compatible 40G QSFP+ Transceiver 10KM SMF 40G PLR4 QSFP+ PSM

    Dell 407-BBQV Compatible Transceiver 40GbE-PLR4 QSFP+ PSM MTP MPO 10KM SMF

    Top-Trans QSFP+-40G-PLR4 is a Dell Networking 407-BBQV Compatible QSFP+ Optical Transceiver, of excellent interoperation on Dell PowerSwitch S4128, S4148U-ON, Z9264-ON, Z9332F-ON Series. This PLR4 module extends the fiber network connection in the data centers, HPC centers, enterprise core and distribution etc applications. This PLR4 module is fully compliant with the QSFP+ MSA and IEEE 802.3ae standards.


    Top-Trans QSFP+-40G-PLR4 uses 4 integrated silicon modulators to create four parallel optical paths each capable of 10Gbps for the aggregate rate of 40Gbps. It is ideal for the fibre link of 10KM over eight cores single-mode fibre wires with MPO/MTP connectors. With build-in DDM/DOM functions, this module can monitor operation status and diagnose voltage, bias current, RX power, and TX power.

    Key Features

    • 4 Parallel lanes design

    • Up to 11.2Gbps per channel bandwidth

    • Aggregate bandwidth of > 40Gbps

    • MTP/MPO optical connector

    • Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-LR4 Standard

    • QSFP MSA compliant

    • Up to 10 km transmission

    • Compliant with QDR/DDR Infiniband data rates

    • Single +3.3V power supply operating

    • Built-in digital diagnostic functions

    • Temperature range from 0°C to 70°C

    • RoHS-6 Compliant

    Protocol

    • 40GBASE Ethernet

    • Infiniband QDR/DDR/SDR

    • 40G Datacom connections

    Parameters

    Data Speed

    40Gbps

    Center Wavelength

    1310NM

    Fiber Type

    Singlemode

    Transmission

    10KM via OS2 SMF

    Connector

    MPO/MTP

    Lasers

    DML + PIN

    Tx power

    -6- +1 dBm

    Rx sensitivity

    -14.5 - -2 dBm

    Extinction Ratio

    4.5 dB

    Power Consumption

    < 3.5 W

    Single Power Supply

    3.3 v

    FAQ

    • Which Dell network device do you use for the compatibility test?

    Dell S6000-ON Switches

    • Who is Topstar?

    Topstar is an integrated SFP transceiver solution provider

    Distribute brand original cisco, Finisar, brocade, lNNO LIGHT, dell-EMC, Avago, source etc transceiver

    OEM & ODM for 1G to 800G bandwidth Optical Transceiver, MM, SM, BIDI, RJ45, CWDM, DWDM, AOC, DAC

    • ​​Does your SFP provide a quality warranty?

    Yes, for every OEM SFP, we offer 3 years warranty

    • How can I make the order?

    ​Please send an inquiry with the details of the demand (product, qty, compatible/original) and your valid contact

    Our Sales will touch you shortly and they will help handle your order
