    Qlogic QLE2562 Dual Port 8Gb Fibre Channel To PCI Express Hba Adapter

    Ask Lasest Price
    Brand Name : QLogic
    Model Number : QLE2562
    Certification : RoHS、FCC
    Price : Price is negotiable
    Payment Terms : T/T, Western Union, MoneyGram, Paypal,Credit Card
    Supply Ability : 500pcs/month
    Delivery Time : 3-5 working days
    • Product Details
    • Company Profile

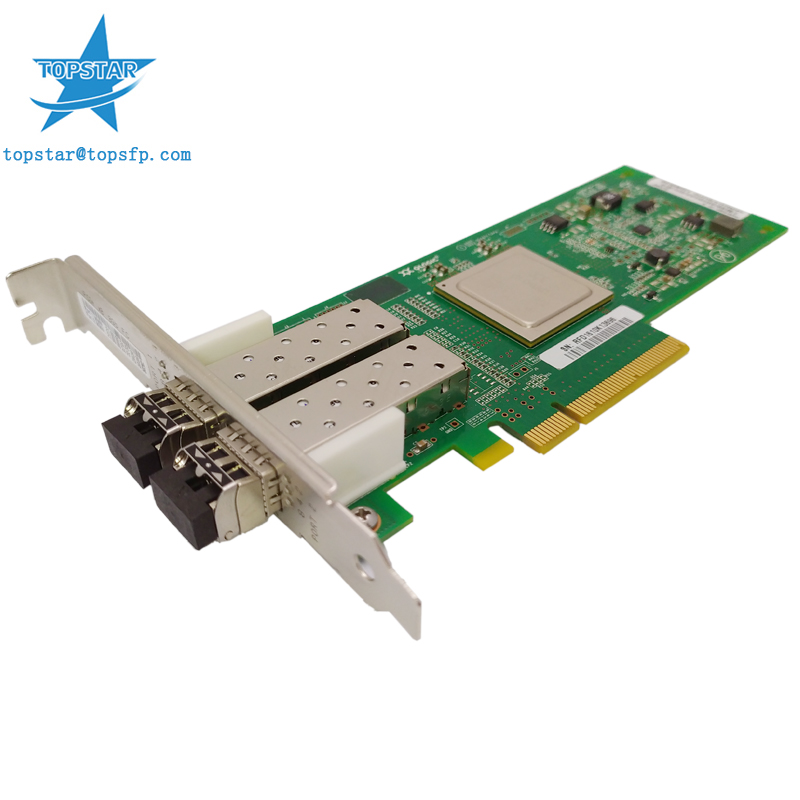

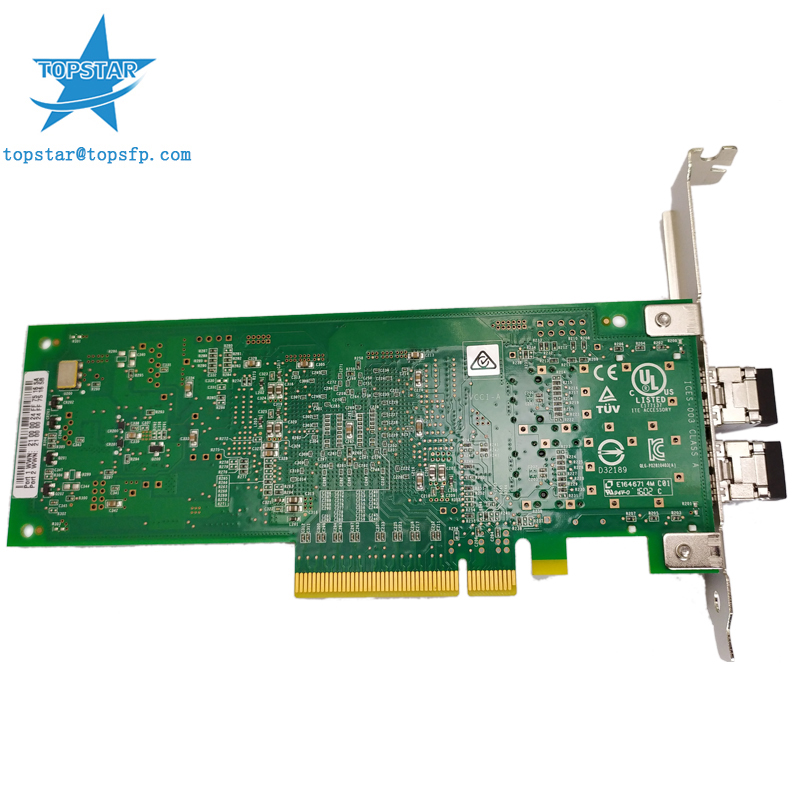

    Qlogic QLE2562 Dual Port 8Gb Fibre Channel To PCI Express Hba Adapter

    qlogic qle2562 8gb 2port fibre channel adapter Dual Port 8Gb Fibre Channel to PCI Express Host Bus Adapter


    QLE2562 Dual Port Fibre Channel Adapters


    The QLE2562 is a PCI Express, dual port, Fibre Channel Host Bus Adapter. The HBA offers the next generation 8Gb Fibre Channel technology, meeting the business requirements of the enterprise data center.
    A wide range of supported Operating Systems and certifications for storage devices ensure a broad set of application scenarios.
    The HBA supplies unrivalled performance by leveraging a single ASIC design and combines a unique hardware architecture to deliver over 200,000 IOPS, a throughput of nearly 1.6 Gb/s, and support for PCI Express x8 bus speeds.

    Features


    • Fibre Channel dual port 8Gb to PCI Express x8

    • Exceptional performance and data throughput of nearly 1600 MBps (full-duplex); delivers up to 200,000 IOPS

    • StarPower™ technology

    • Provides industry-standard application programming interfaces (APIs, FC HBAs)

    • Newest technology for existing 4Gb and 2Gb SANs

    Technical Features


    Controller typeFibre Channel Host Bus Adapter
    Connector typeLC-style
    Number of ports2
    Bus interfacePCIe 2.0 x8
    Fibre Channel interfaceMMF
    Power consumption6.2 W (typical)

    Benefits


    • Delivers enhanced security, Quality of Service (QoS), and enables dynamic provisioning. The Adapter allows multiple logical (virtual) connections to share the same physical port. Each logical connection has its own resources and the ability to be managed independently.

    • The Fibre Channel HBA provides the highest data integrity by ensuring Overlapping Protection Domains (OPD) on both the control and data paths. He also utilizes Enhanced Hardware Assist Firmware Tracing (EHAFT), allowing more comprehensive debugging with standard drivers.

    • The Fibre Channel HBA takes advantage of StarPower technology, ensuring power efficiency. The StarPower technology offers dynamic and adaptive power management features such as power and bandwidth optimized intelligent PCI Express link training, lowpower switching power supplies, and thermally efficient layout requiring lower airflows.



    FAQ


    Q1. Are your network adapter original?

    A1.Yes, all our network adapter are guaranteed 100% original!


    Q2. What will you do if I found the product has any quality problem?

    A2.We back up every sale with our risk-free money-back guarantee! You can buy with confidence from a company in good faith that has been serving its clients for over 10 years! Our dream is to build a famous 100 years enterprise!


    Q3. How about the shipment?
    A3. We deliver products by FEDEX, DHL, ARAMEX, EMS, UPS, TNT and Ocean transportation.
