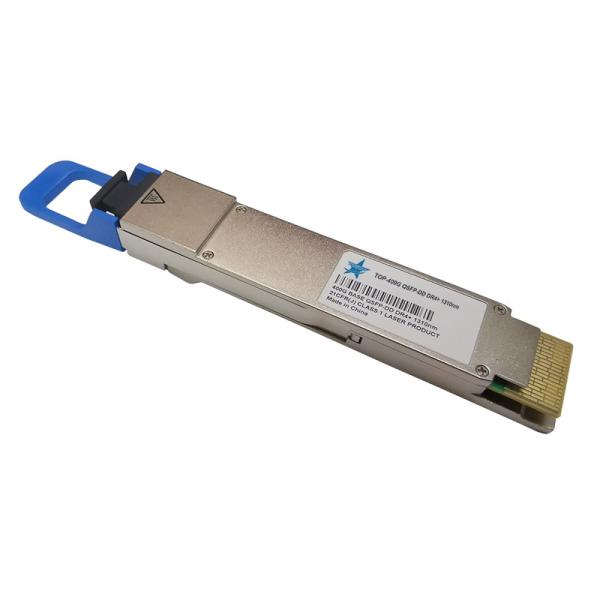

    QSFP-DD MSA Fiber Optic Transceiver 400G 2km DR4+ MPO Connector

    Ask Lasest Price
    Brand Name : Top-Trans
    Model Number : TQSFPDD400G-DR4+
    Certification : CE FCC RoHS
    Price : Price is negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000pcs per Day
    Delivery Time : 1-3 working days
    • Product Details
    • Company Profile

    QSFP-DD MSA Fiber Optic Transceiver 400G 2km DR4+ MPO Connector

    Fiber Optic Transceiver QSFP-DD 400G 1310nm 2km DR4+ MPO Connector Sfp Switch Port

    Fiber Optic Transceiver Sfp Switch Port


    This product is a 400Gb/s Quad Small Form Factor Pluggable-double density (QSFP-DD) optical module designed for 2km optical communication applications. The module converts 8 channels of 50Gb/s (PAM4) electrical input data to 4 channels of parallel optical signals, each capable of 100Gb/s operation for an aggregate data rate of 400Gb/s. Reversely, on the receiver side, the module converts 4 channels of parallel optical signals of 100Gb/s each channel for an aggregate data rate of 400Gb/s into 8 channels of 50Gb/s (PAM4) electrical output data.

    An optical fiber cable with an MTP/MPO-12 connector can be plugged into the QSFP-DD DR4 module receptacle. Proper alignment is ensured by the guide pins inside the receptacle. The cable usually cannot be twisted for proper channel to channel alignment. Electrical connection is achieved through a QSFP-DD MSA-compliant edge type connector.


    Parameters

    Fiber TypeSMF
    ConnectorMPO-12
    Lasers and TIAEML PIN
    Tx Power-2.4 to 4 dBm
    Rx Sensitivity-6.4 to 4.5 dBm
    Extinction Ratio3.5 dB
    Power Consumption12 W
    Single Power Supply3.3 V

    PRODUCT FEATURES

    • QSFP-DD MSA compliant
    • Parallel 4 Optical Lanes
    • 100G Lambda MSA 100G-FR Specification compliant
    • Up to 2km transmission on single mode fiber (SMF) with FEC
    • Operating case temperature: 0 to 70oC
    • 8x53.125Gb/s electrical interface (400GAUI-8)
    • Data Rate 106.25Gbps (PAM4) per channel.
    • Maximum power consumption 12W
    • MPO-12 connector
    • RoHS compliant

    APPLICATIONS

    • 400G Ethernet
    • Infinib interconnects
    • Datacenter Enterprise networking

    FAQ

    Q1. Are your transceiver modules compatible with Cisco?

    A1: Yes, Topstar transceivers can compatible with Cisco. All the brand Topstar's SFP compatible as the fellowing:Cisco, Nortel, Juniper, 3COM, H3C, Alcatel-lucent, FOUNDRY, D-Link, EXTREME, Ruijie, NETGEAR, ZTE, Enterasys, ZyXEL, Linksys, Ericsson, DCN, Allied, SMC, Brocade, Force10, Hirschmann, Planet, Adtran, ASNTE, Trendnet, BDCOM, BLADE, BITWAY, Telco, Feixun...etc.


    Q2. How does your company do regarding quality control?

    A2: Every single optic individually tested in our test center , and also tested for compatibility on a variety of different brands of network equipment.


    Q3. What are the trade terms?

    A3: Lead Time: we keep 40,000pcs SFP in stock ready to ship.

    Payment term: T/T, Western Union, Alipay, Paypal, L/C and so on for your option.


    Q4. What is operating temperature range of optical modules?

    A4: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)


    Storage temperature range:-40 to +85°C(-40 to 185°F)

    We can supply according to your request.
