    32 Port 16Gb Brocade POD License FC16-32 Chassis FC Port Blade For DCX 8510 Backbone

    Ask Lasest Price
    Brand Name : Brocade
    Model Number : FC16-32
    Certification : CE SA KCC
    Price : Price is negotiable
    Payment Terms : T/T, Western Union, MoneyGram, Paypal,Credit Card
    Supply Ability : 500pcs per month
    Delivery Time : 3-5 working days
    • Product Details
    • Company Profile

    32 Port 16Gb Brocade POD License FC16-32 Chassis FC Port Blade For DCX 8510 Backbone

    FC16-32 32 Port 16Gb Chassis FC Port Blade for Brocade DCX 8510 Backbone


    BR-DCX8510-0102 32 port 16Gbps SFP FC Blade

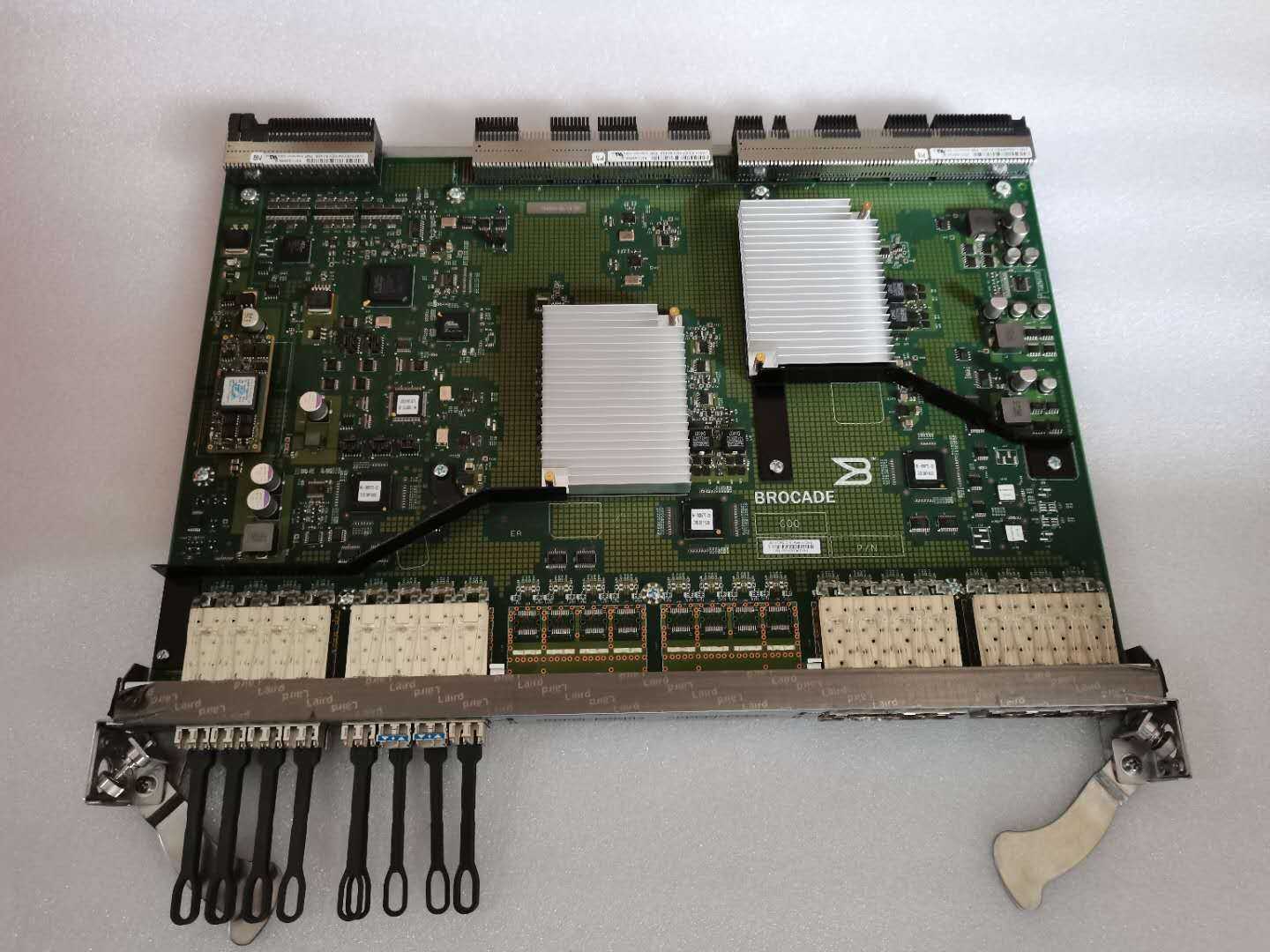

    Product Description:Industry-Leading, High-Density Fibre Channel Port Blade
    The Brocade FC16-32, a high-density 32-port Fibre Channel port blade, combines industry-leading port density, performance, scalability, and
    reliability to maximize the benefits of SAN and server consolidation. Withthe Brocade FC16-32, mid-size to large enterprises can deploy highdensity, modular chassis-based solutions that minimize their physical footprint without compromising performance. These Fibre Channel port
    blades increase chassis density by 33 percent over a chassis populated with 32 port blades, enabling the Brocade DCX® 8510-8 Backbone to
    scale up to 512 ports and the Brocade DCX 8510-4 to scale up to 256 ports with 16 Gbps performance. In addition, the Brocade FC16-32 Port
    Blade offers Gen 5 Fibre Channel performance, the industry’s lowest power consumption, and, with Brocade Fabric Vision technology,extends Brocade Gen 5 Fibre Channel capabilities to maximize SAN reliability, availability, and management.

    .

    Main featuresSystems Architecture
    Media types
    FC32-48 port blade: supports Brocade hot-pluggable 32 Gbps SWL/LWL SFP28, 16 Gbps SWL/LWL/ELWL SFP+, 10 Gbps SWL/LWL SFP
    Switch latency
    FC32-48 blade: <900ns (including FEC) any port to any port local switching and 2.7 μsec blade to blade (including FEC) at 32-Gbps, cut-through routing.
    Slot bandwidth
    1.5 Tbps
    Maximum power118 watts when fully populated with 16 standard SWL QSFP 134 watts maximum power consumption
    Switch latency
    Brocade FC32-48 blade at Gen 6 32 Gbps speeds: <900 ns (including FEC); any-port-to-any-port local switching and 2.7 μs blade to blade at 32 Gbps, cut-through routing

    Supported management software

    HTTP, SNMP v1/v3 (FE MIB, FC Management MIB), SSH; Auditing, Syslog; Brocade Advanced Web Tools, Brocade Network Advisor SAN Enterprise or Brocade Network Advisor SAN Professional Plus; Command Line Interface (CLI); SMI-S compliant; Administrative Domains; trial licenses for add-on capabilities
    Diagnostics
    Built-in flow generator, ClearLink cable diagnostics (no support for electrical/optical loopback), link traffic/latency/ distance; POST and embedded online/offline diagnostics, including environmental monitoring, FCping and Pathinfo (FC traceroute), flow mirroring, frame viewer, non-disruptive daemon restart, port mirroring, optics health monitoring, power monitoring (16 Gbps blades-only), RAStrace logging, and Rolling Reboot Detection (RRD)


    HIGHLIGHTS
    •Increases port density by 33 percent for unmatched scalability and performance
    • Optimizes data center connectivity with industry-standard, high-performance,energy-efficient QSFPs
    • Eliminates issues from unexpected design changes by enabling a quick connection to structured cablingsystems
    • Delivers industry-leading performance,providing unmatched chassis, slot-toslot, and port throughput and bandwidth
    • Reduces energy expenditures with theindustry’s lowest power consumption
    • Leverages Brocade Fabric Vision technology’s powerful monitoring, management, and diagnostic tools tosimplify administration, increase uptime,and reduce costs
    • Helps pinpoint problems faster andsimplify SAN configuration and management with customizableBrocade Network Advisor health and performance dashboard
