    40GBASE-CR4 QSFP To 4 10GBASE-CU Fiber Patch Cable SFP+ DAC Cable QSFP-4SFP10G-CU3M Compatible

    Ask Lasest Price
    Brand Name : Top-Trans
    Model Number : QSFP-4SFP10G-CU3M
    Certification : CE ROHS
    Price : Price is negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 20000pcs per month
    Delivery Time : 2-3 working days
    • Product Details
    • Company Profile

    40GBASE-CR4 QSFP To 4 10GBASE-CU Fiber Patch Cable SFP+ DAC Cable QSFP-4SFP10G-CU3M Compatible

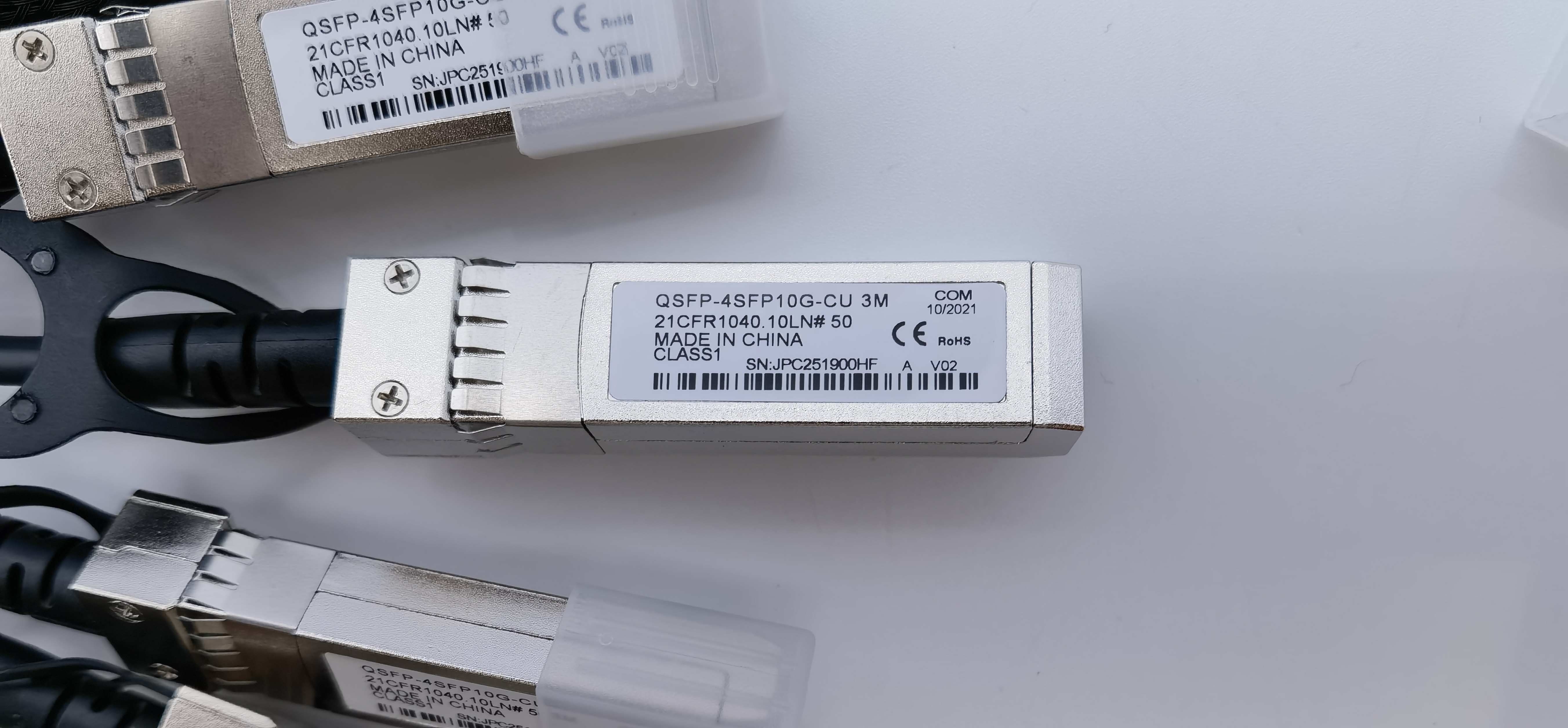

    QSFP-4SFP10G-CU3M compatible Cisco 40GBASE-CR4 QSFP to 4 10GBASE-CU SFP+ Direct Attach Breakout Cable


    40G QSFP+ to 4xSFP+ Direct Attach Cable Passive Twinax 3m

    Cisco compatible QSFP to four SFP+ copper direct-attach breakout cables are suitable for very short distances and offer a very cost-effective way to connect within racks and across adjacent racks. These breakout cables connect to a 40G QSFP port of a Cisco switch on one end and to four 10G SFP+ ports of a Cisco switch on the other end. Cisco currently offers passive cables in lengths of .5, 1, 2, 3, 4 and 5 meters;


    Features

    ● Connector A: 1x QSFP 40Gbps Rated Connector (QSFP+ MSA SFF-8436 Compliant)

    ● Connector B: 4x SFP+ 10Gbps Rated Connector (SFP+ MSA SFF-8431 Compliant)

    ● Economically Links up a QSFP port with an upstream 10GbE-SFP+ Switch

    ● Compliant with IEEE 802.3ba 40GBASE-CR4 standard

    ● Up to 10.3125 Gbps transfer rate per SFP+ channel (40 Gbps aggregate)

    ● Bridge the gap between your 10G and 40G capable switches/host adapters

    ● High-Density QSFP 38-PIN and 4x SFP 20-PIN Connector

    ● Reduced power budget and lower port cost compared to transceiver and AOC

    ● RoHS Compliant and Lead-Free

    ● 24AWG to 30AWG cable available

    ● Operating temperature range: 0 to 70°C

    ● RoHS Compliant and Lead-Free


    Applications

    ● 10/40 Gigabit Ethernet links

    ● 40G Ethernet transmission (40GBASE-CR4)

    ● InfiniBand 4x SDR, DDR, QDR

    ● 10G/40G Ethernet Switches, Routers, and HBAs

    ● Data center interconnect

    ● Networked storage systems

    ● High density connections between networking equipment


    Max Data Rate40Gbps
    Minimum Bend Radius21mm
    Jacket MaterialPVC
    Cable TypeCopper Cable
    DDM/DOMNA
    Wire AWG30 AWG
    Cable impedance100 Ω
    Power supply3.3V
    Protocols40G InfiniBand 8x DDR, 4x QDR, 10G/40Gigabit Ethernet, Fibre Channel


    Description

    The QSFP-4SFP10G-CU3M is suitable for very short distances and offers a highly cost-effective way to establish a interconnect between the devices using QSFP+ ports and SFP+ ports. The QSFP+ to 4xSFP+ DAC breakout cable is designed for 40Gb/s high-speed interconnecting networking applications such as high-performance computing (HPC), enterprise networking including top-of-rack switching and network storage markets. It fully complies with QSFP+ Multi-Source Agreement (MSA) standards SFF-8436 and SFP+ MSA SFF-8431. This passive DAC cable has no signal amplification built into the cable assembly.


    The QSFP-4SFP10G-CU3M DAC copper cable is programmed to be compatible with a wide range of Cisco network equipment for intra-rack connections in data centers such as Ethernet Switches, Routers, Network Interface Cards (NICs) and Network Servers. It’s a cost-effective alternative to high-cost Cisco QSFP-4SFP10G-CU3M 40Gb/s QSFP+ 3m DAC breakout cable
