    5m LC UPC To SC UPC Duplex Fiber Patch Cable OS2 Single Mode

    Ask Lasest Price
    Brand Name : Top-Trans
    Model Number : PT-SM-LCU-SCU-DX-5M
    Certification : CE ROHS
    Price : Price is negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 20000pcs per month
    Delivery Time : 2-3 working days
    • Product Details
    • Company Profile

    5m LC UPC To SC UPC Duplex Fiber Patch Cable OS2 Single Mode


    5m LC UPC To SC UPC Duplex OS2 Single Mode PVC3.0mm Fiber Patch Cable


    High Quality and Cost-effective 9/125μm Single Mode Bend Insensitive Fiber Optic Cable

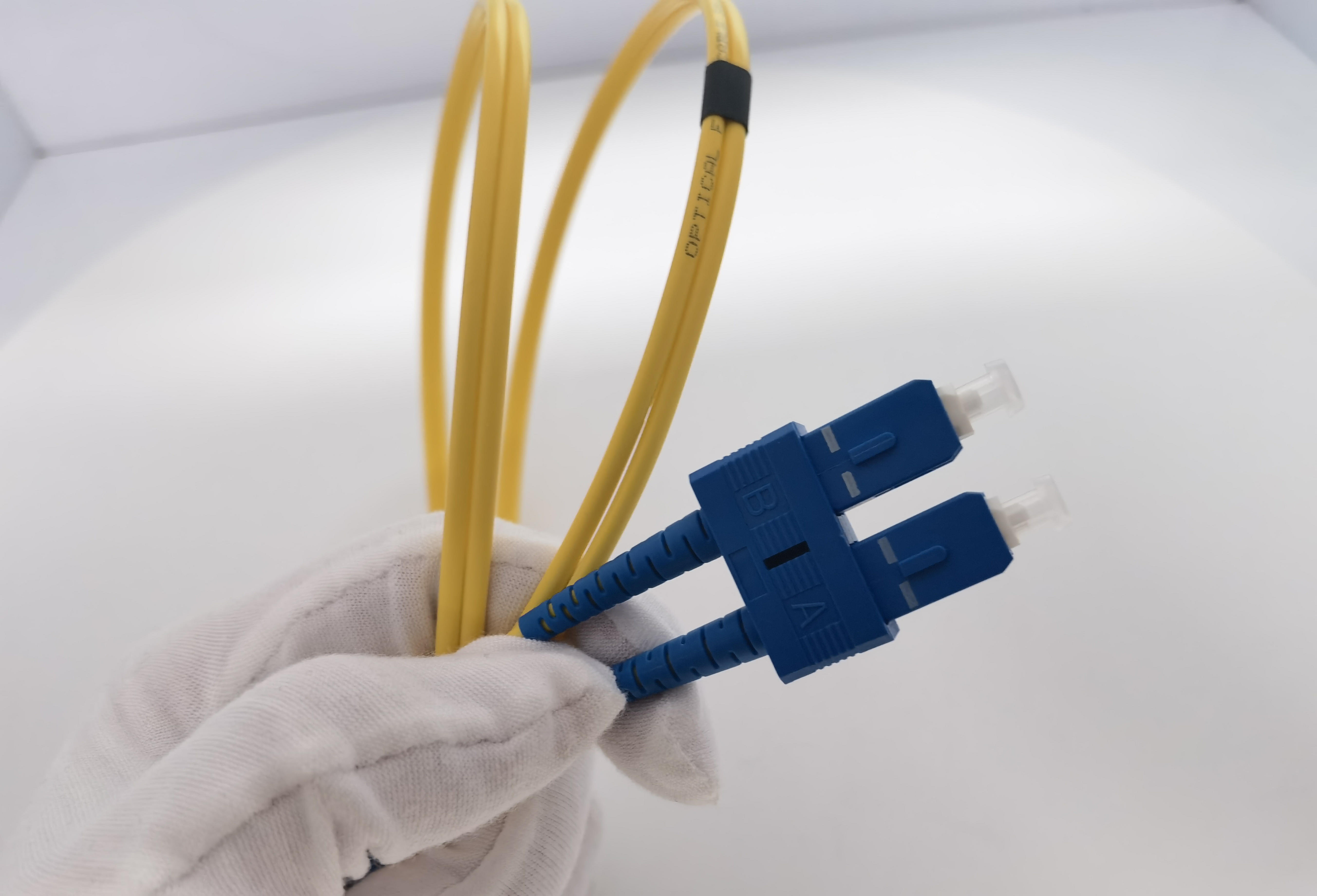

    The LC/UPC-SC/UPC Fiber Patch Cord Duplex SM G.657.A1 2.0mm 1m Yellow (Part number: PT-SM-LCU-SCU-DX-5M) from Topstar is a Duplex patch cord with LC/UPC connector at one side and a SC/UPC connector at the other one. Fiber patch cords are a type of cables that have two connectors on both ends. Optic patch cords can come in simplex (1 fiber), duplex (2 fibers) or in MPO (12 fibers). The connectors on both sides of the patch cord, allow it to be quickly connected to another device such as an optical switch or other telecommunications/computer device.

    • Singlemode
    • Polishing UPC
    • Return loss ≥ 55 dB (unmated), >60 dB (mated)
    • Insertion loss ≤ 0,25 dB (Grade B1)
    • Ferrule material Ceramic (zirconia)
    • Ferrule diameter 1.25 mm / 2.5 mm
    • Insertion / extraction cycles Min. 1000

    Cable Mechanical Properties

    • Cabled optical fiber OS2
    • Nominal diameter core / sheath 9 / 125 μm
    • Color Yellow
    • Outer diameter 1.6 mm to 3 mm
    • Sheath material LSZH, UL-94 V0
    • Bending radius (static) 45 mm
    • Temperature range -20°C +70°C
    • Attenuation @ 850 / 1300 nm (dB/km) ≤ 3,2 / ≤ 0,8
    • Attenuation @ 1310 / 1383 / 1550 nm (dB/km) ≤ 0,4 / ≤ 0,4 / ≤0,4
    Fiber GradeG.657.A1 (Compatible with G.652.D)
    Fiber ModeOS2 9/125μm
    Wavelength1310/1550nm
    Cable Diameter3.0mm
    Min. Bend Radius (Fiber Core)10mm
    Min. Bend Radius(Fiber Cable)10/5D (Dynamic/Static)
    Attenuation at 1310 nm0.36 dB/km
    Attenuation at 1550 nm
    0.22 dB/km
    Cable JacketPVC
    PolarityA (Tx) to B (Rx)
    Fiber countDuplex
    Storage Temperature
    -40~80°C


    FAQ

    Q1. Can you offer OEM/ODM serivce for those fiber patch cables?

    A1:Topstar has rich expiriences inproducing OEM/ODM cases becaused of Profession R & D team

    • Customized Logo
    • Printing on Cable
    • Label/PE bag/Carton design
    • Different Color & Different Lengths Available

    Q2. How does your company do regarding quality control?

    A2: we offer 1 year warranty for those fiber accessories;


    Q3. What are the trade terms?

    A3: Ex-w, COF, CIP, FOB as client requested;
