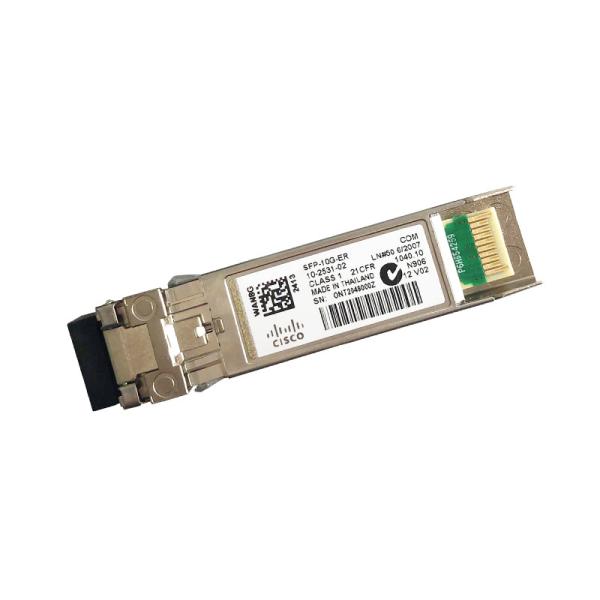

    10GBASE-ER SFP+ 1550nm 40km 10Gb/s DOM Module SFP-10G-ER

    Ask Lasest Price
    Brand Name : Cisco
    Model Number : SFP-10G-ER
    Certification : RoHS
    Price : Price is negotiable
    Payment Terms : T/T, Paypal、Credit card
    Supply Ability : 5000pcs/month
    Delivery Time : within 24 hours
    • Product Details
    • Company Profile

    10GBASE-ER SFP+ 1550nm 40km 10Gb/s DOM Module SFP-10G-ER

    10GBASE-ER SFP+ 1550nm 40km DOM SFP-10G-ER Optical Modules Transceiver


    The features of SFP-10G-ER


    Fiber TypeSMF
    ConnectorDual-LC
    Warranty1 year
    Tx power-2.0 to +3.0 dBm
    Rx sensitivity-20.0 to + 2.0 dBm
    Extinction Ratio8.2dB
    Power Consumption1.5W
    Single Power Supply

    3.3V




    Features and Benefits

    • Hot-pluggable SFP+ footprint

    • 3.1G through 11.3G bit rates

    • 40km link length

    • Cooled 1550nm EML laser

    • Limiting electrical interface receiver

    • 0°C to 70°C temperature range

    • Duplex LC connector

    • Built-in digital diagnostic functions

    • RoHS-6 compliant (lead-free)

    The Applications of SFP-10G-ER

    • 10GBASE-ER/EW

    • OTN G.709 OTU1e/2/2e FEC bit rates

    • 4x, 8x and 10x Fibre Channel

    • CPRI option 2 through 8

    The Description of SFP-10G-ER
    10Gb/s Pluggable SFP+ transceivers are Enhanced Small Form Factor Pluggable SFP+ transceivers designed for use in 10-Gigabit multirate links up to 40km of G.652 single mode fiber.
    They are compliant with SFF-8431 1 , SFF-8432 2 and 10GBASE- ER/EW; support 4x, 8x and 10x Fibre Channel, as well as CPRI option 2 through 8, over 40km links.
    Digital diagnostics functions are available via a 2-wire serial interfacee, as specified in SFF-8472 . The transceivers are RoHS compliant per Directive 2011/65/EU.

    FAQ


    Q1. Are your Optical Transceivers original?


    A1.Yes, all our optical transceivers are guaranteed 100% original!


    Q2. What will you do if I found the product has any quality problem?


    A2.We back up every sale with our risk-free money-back guarantee! You can buy with confidence from a company in good faith that has been serving its clients for over 10 years! Our dream is to build a famous 100 years enterprise!


    Q3. What is the operating temperature range of optical modules?


    A3: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)


    Extended temperature range(EXT):-5 to 85°C(23 to 185°F)


    Industrial temperature range(IND)::-40 to 85°C(-40 to 185°F)


    Storage temperature range:-40 to +85°C(-40 to 185°F)


    Q4.How do you guarantee the quality of SFP?


    A4.We have professional testing equipment and QC team. Every unit will be fully tested with perfect performance before shipping.

    Q5. Do you have compatible ones?


    A5.Yes, we have our own brand:Top-trans, including 1X9,SFP, XFP, SFP+, BIDI in all kinds of specifications.
