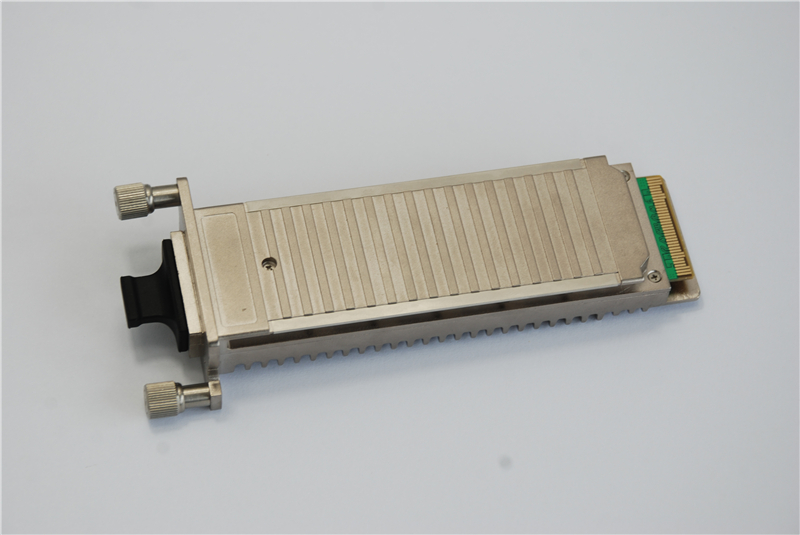

    XENPAK 10G SFP Module 10GBASE-LR 1310nm 10km SMF Hot Pluggable

    Ask Lasest Price
    Brand Name : Finisar
    Model Number : XENPAK 10GBASE-LR
    Certification : Rohs
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram,Paypal
    Supply Ability : 20000pcs per month
    Delivery Time : 3-4days
    • Product Details
    • Company Profile

    XENPAK 10G SFP Module 10GBASE-LR 1310nm 10km SMF Hot Pluggable


    Optical Transceiver XENPAK 10GBASE-LR 1310nm 10km Reach Modules


    PRODUCT FEATURES

    • Compatible with XENPAK MSA Rev.3.0
    • Support of IEEE802.3ae 10GBASE-LR
    • Transmission Distance up to 10km(SMF)
    • Uncooled directly modulated 1310nm DFB Laser
    • Temperature Range 0 to 70°C
    • Adaptable Power Supply (APS:+1.2V)
    • SC duplex Optical connector
    • Hot pluggable 70-pin connector with XAUI electrical interface
    • Management and control via MDIO 2-wire interface
    • Compatible with RoHS

    Optical Module XENPAK 10GBASE-LR Specification


    Application10Gb/s
    Wavelength1310 nm
    Temperature0 to 70°C
    Distance10Km
    Form FactorXENPAK
    ConnectorSC
    Extinction Ratio6dB
    CertificateROHS

    Applications


    • 10GBASE-LR 10G Ethernet

    The XENPAK Module is a highly integrated,Serial optical transponder module for high-speed, 10Gbit/s data transmission


    applications. 4×3.125Gbps Ethernet Signal Input by XAUI Interface.An integrated Coder / Decoder and multiplexer /


    demultiplexer (SERDES: Serializer / Deserializer). Designing for 10GBASE-LR Transmission with an uncooled directly


    modulated 1310nm DFB Laser. The transponder operates within a wide case temperature range of 0°C to +70°C and offers


    optimum heat dissipation and excellent electromagnetic shielding which enables high port densities for 10 GbE systems. A 70


    pin electrical connector and a duplex SC connector optical interface assure that connectivity is compliant to the XENPAK MSA


    Rev.3.0.
