    1 Pack 16G FC SFP+ LWL Transceiver 57-0000089-01 XBR-000198

    Ask Lasest Price
    Brand Name : Brocade
    Model Number : 57-000088/XBR-000192
    Certification : ISO9001, ROHS, CE, FCC
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal,
    Supply Ability : 3000pcs per month
    Delivery Time : Negotiable
    • Product Details
    • Company Profile

    1 Pack 16G FC SFP+ LWL Transceiver 57-0000089-01 XBR-000198

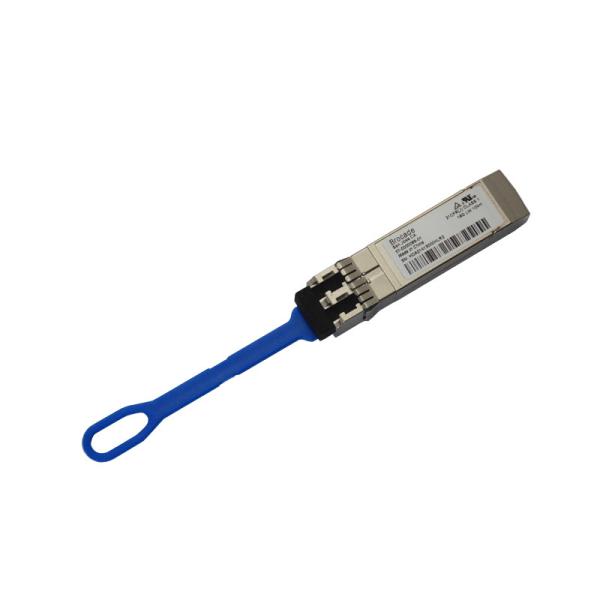

    Brocade Original 57-0000089-01 XBR-000198 16G FC SFP+ LWL 1-pack Transceiver

    Today’s enterprise data centers are undergoing an infrastructure transformation, requiring higher speeds, greater scalability, and higher levels of performance and reliability to meet the increasing demands of business. As speed and performance needs increase, optical transceivers have become an integral part of overall system design.

    The Brocade® 16Gb/s Long Wavelength (LWL) 10-km optical transceiver, part of the Brocade family of Small Form-Factor Pluggable (SFP) optical transceivers, is optimized to fully leverage Brocade 16Gb/s director and switch products. The Brocade 16Gb/s LWL 10-km SFPs are hot-swappable, low-voltage (3.3V), digital diagnostic optical transceivers that support high-speed serial links over single-mode optical fiber at signaling rates up to 14.025Gb/s. They comply with SFP mechanical (SFF-8432), optical, and electrical specifications (FC-PI-5) for LC duplex transceivers.

    The Brocade LWL SFPs are the standard choice for use in mainframe environments, connecting to IBM System z channels and FICON devices over distance for business continuity and disaster recovery. Together with Brocade switching products, they provide state-of-the-art performance, helping IT organizations achieve new levels of infrastructure consolidation while expanding the capabilities of their applications and services.


    Key Features

    • 1310-nm DFB laser

    • FC-PI-5 compliance for 14.025/8.5/4.25Gb/s operation

    • Diagnostic features per SFF-8472, Diagnostic Monitoring Interface for Optical Transceivers, providing real-time monitoring of:

    – Transmitted average optical power

    – Received average optical power

    – Laser bias current

    – Temperature

    – Supply voltage

    • Industry-standard LC duplex connector

    • 10-km link lengths at 14.025Gb/s on 9-µm single-mode fiber

    • IEC 60825-1 Class 1/CDRH Class 1 laser, which is eye-safe

    • Compliance with the Restriction on Hazardous Substances (RoHS) directive


    Protocol

    • 16G Fiber Channel

    Parameters

    Data Speed

    FC 4G 8G 16G

    Center Wavelength

    1310NM

    Fiber Type

    Singlemode

    Transmission

    10km

    Connector

    Dual LC

    Lasers

    DFB + PIN

    Tx power

    2.0 - 5.0 dBm

    Rx sensitivity

    2.0 dBm max

    Power Consumption

    < 1.08 W

    Single Power Supply

    3.3 v

    FAQ

    • Is this genuine Brocade Original Transceiver?

    Yes, Topstar is the top lead Brocade distributor in China, we sell the brand SFP since 2006 and never sell fake or copy brand items.

    • Does your SFP provide a quality warranty?

    For brocade SFP, we offer a 1-year warranty.

    • Can you send this SFP module to my place? and how long does it take?


    Yes, we can provide door to door shipment via DHL, FEDEX, Aramex and UPS etc logistic services.

    The express logistic generally takes 5-12 days to global.

    ​​

    • Do you have regular stock of this Brocade transceiver?

    Yes, we have regular stock of thousands of pcs, ready for a big volume order
