    150M MMF FC SFP Transceiver 57-1000117-01 XBR-000163 8GFC SWL SFP+

    Ask Lasest Price
    Brand Name : Brocade
    Model Number : XBR-000163/57-1000117-01
    Certification : ISO9001, ROHS, CE, FCC
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal,
    Supply Ability : 3000pcs per month
    Delivery Time : Negotiable
    • Product Details
    • Company Profile

    150M MMF FC SFP Transceiver 57-1000117-01 XBR-000163 8GFC SWL SFP+

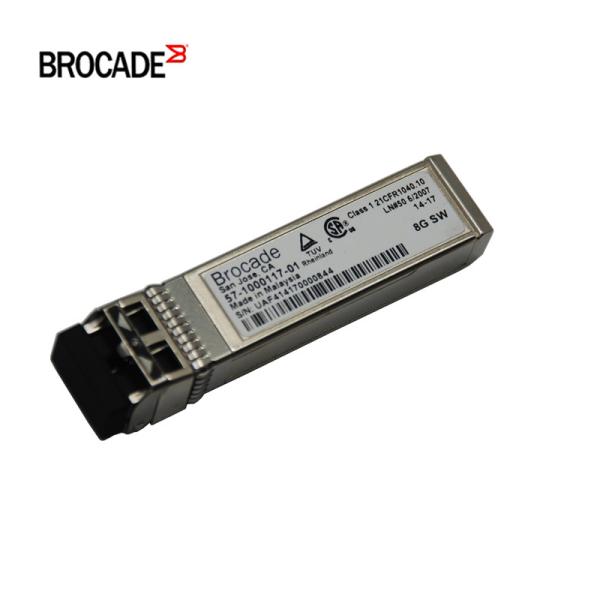

    Brocade Original 8G FC SWL Transceiver 57-1000117-01 XBR-000163 SFP+ 150M MMF

    Today’s enterprise data centers are undergoing an infrastructure transformation, requiring higher speeds, greater scalability, and higher levels of performance and reliability to better meet the demands of business. As speed and performance needs increase, optical transceivers—once considered a generic component of Fibre Channel switching technologies—have become an integral part of overall system design. However, optical transceiver design margins and parameters vary widely, and can be the difference between an optimized, highly reliable fabric and incompatibility issues that drive up support costs.

    The Brocade® 8 Gbit/sec Short Wavelength (SWL) optical transceiver, part of the Brocade family of Small Form-Factor Pluggable (SFP) optical transceivers, is optimized to fully leverage Brocade 8 Gbit/sec backbone, director, and switch products. Together, these optical transceivers provide state-of-theart performance, helping IT organizations achieve new levels of infrastructure consolidation while expanding the capabilities of their applications and services.

    Brocade 8 Gbit/sec SWL optical transceivers support highly reliable operations in data center fabrics and are optimized for Brocade 8 Gbit/ sec switching platforms. They undergo rigorous qualification and certification testing that results in an end-to-end solution that is easier to maintain— helping improve the availability of data center fabrics supporting mission-critical applications.

    Key Features

    • 850 nm multimode VCSEL transmitter

    • FC-PI-4 compliance for 8.5/4.25/2.125 Gbit/sec operation

    • Diagnostic features per SFF-8472, Diagnostic Monitoring Interface for Optical Transceivers, providing real-time monitoring of the following:

    − Transmitted optical power

    − Received optical power

    − Laser bias current

    − Temperature

    − Supply voltage

    • Industry-standard LC duplex connector

    • 150 m link lengths at 8.5 Gbit/s OM3 fiber

    • IEC 60825-1 Class 1/CDRH Class 1 laser, eye-safe

    • Compliance with the Restriction on Hazardous Substances (RoHS) directive

    • Provides high system reliability through rigorous qualification and certification processes

    • Leverages unique design parameters to provide the highest performance with industry-leading Brocade switch and director platforms to support business continuity and disaster recovery.

    • Helps eliminate issues related to SFP incompatibility, reducing downtime and support costs.

    • Helps eliminate issues resulting from unexpected design changes, providing ongoing end-to-end compatibility.

    • Optimizes connectivity with Brocade platforms to enable maximum cable distance.

    Protocol

    • 8G Fiber Channel

    Parameters

    Data Speed

    FC 2G 4G 8G

    Center Wavelength

    850NM

    Fiber Type

    Multimode

    Transmission

    150M OM3 MMF

    Connector

    Dual LC

    Lasers

    VCSEL+ PIN

    Tx power

    -8.0dBm

    Rx sensitivity

    0 dBm

    Extinction Ratio

    2 dB

    Power Consumption

    0.8 W

    Single Power Supply

    3.3 v

    FAQ

    • Is this genuine Brocade Original Transceiver?

    Yes, Topstar is the top lead Brocade distributor in China, we sell the brand SFP since 2006 and never sell fake or copy brand items.

    • Does your SFP provide a quality warranty?

    For brocade SFP, we offer a 1-year warranty.

    • Can you send this SFP module to my place? and how long does it take?


    Yes, we can provide door to door shipment via DHL, FEDEX, Aramex and UPS etc logistic services.

    The express logistic generally takes 5-12 days to global.

    ​​

    • Do you have regular stock of this Brocade transceiver?

    Yes, we have regular stock of thousands of pcs, ready for a big volume order
