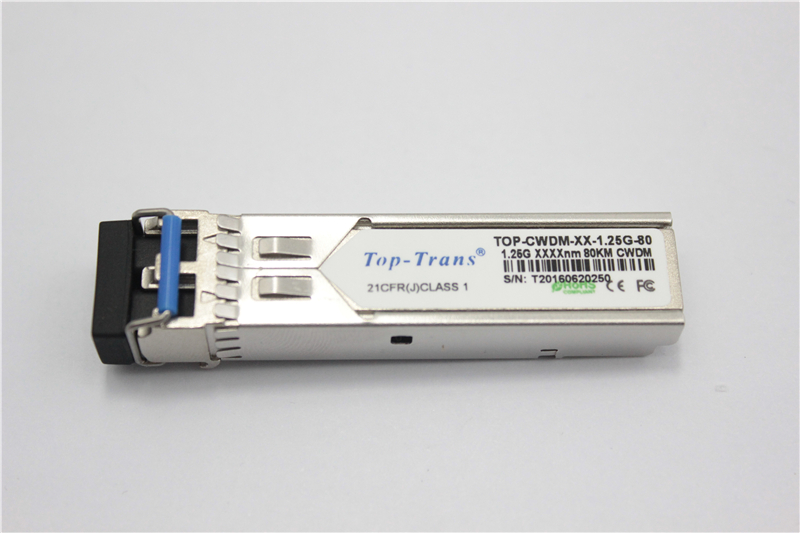

    1.25g SFP Transceiver Module Fiber Optic LC Connector 80Km Fast Ethernet Single Mode

    Ask Lasest Price
    Brand Name : Top-trans
    Model Number : Top-SFP-CWDM-XX-1.25-80
    Certification : Rohs
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram,Paypal
    Supply Ability : 2500pcs per day
    Delivery Time : 3-4days
    • Product Details
    • Company Profile

    1.25g SFP Transceiver Module Fiber Optic LC Connector 80Km Fast Ethernet Single Mode


    1.25G SFP Optical Transceiver 80Km Fast Ethernet Single Mode Fiber


    80Km 1.25G Optical Transceiver Fetures:


    Up to 1.25Gb/s data links


    DFB laser transmitter


    PIN photo-detector


    Up to 80KM on 9/125μmSMF


    Hot-pluggable SFP footprint


    Duplex LC/UPC type pluggable optical interface


    Low power dissipation


    Metal enclosure, for lower EMI


    RoHS compliant and lead-free


    Single +3.3Vpower supply


    Support Digital Diagnostic Monitoring interface


    Compliant with SFF-8472


    Case operating temperature:0°C to+70°C


    APPLICATIONS


    Switch to Switch Interface


    Fast Ethernet


    Switched Backplane Applications


    Router/Server Interface


    Other Optical Links


    STANDARD


    SFP+MSA Compliant


    SFF-8472reversion9.5compliant


    IEEE802.3-2005compliant


    Telcordia GR-468-COREcompliant


    FCC47CFRPart15, Class B compliant


    FDA21CFR1040.10and1040.11,class1compliant


    RoHS compliant


    PRODUCT DESCRIPTIONS

    SFP 1.25G 80KM CWDM optical transceivers are designed for optical interfaces for data communications with


    single mode fiber(SMF). The transceiver designs are optimized for high performance and cost effective to supply customers


    the best solutions for telecom applications.


    CWDM Sfp Module Optical Specification


    Fiber TypeSMF

    Relative Humidity

    95%

    Extinction Ratio :9dB

    Supply Voltage

    3.3V

    Operating Wavelength

    1270 nm-1610 nm
    Carton Size22cmx17cmx7cm
    Warranty3 years
    Packing10pcs /box

    Distance :

    80Km

    Certificate

    ROHS

    Digital Diagnostic Functions


    TOP-CWDM-XX-1.25-80 transceivers support the 2-wire serial communication protocol as defined in the SFPMSA. It is very


    closely related to the E2PROM defined in the GBIC standard, with the same electrical specifications.


    The standard SFP serial ID provides access to identification information that describes the transceiver’s capabilities, standard


    interfaces, manufacturer, and other information.


    Additionally, SFP 1.25G 80KM CWDM transceivers provide a unique enhanced digital diagnostic monitoring interface, which


    allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical


    power, received optical power and transceiver supply voltage. It also defines a sophisticated system of alarm and warning flags,


    which alerts end-users when particular operating parameters are outside of a factory set normal range.


    FAQ :


    Q1. Are your Optical Transceivers original?


    A1.Yes, all our optical transceivers are guaranteed 100% original!


    Q2.How do you guarantee the quality of SFP?


    A2.We have professional testing equipment and QC team. Every unit will be fully tested with perfect performance before shipping.


    Q3. What will you do if I found the product has any quality problem?


    A3.We back up every sale with our risk-free money-back guarantee! You can buy with confidence from a company in good faith


    that has been serving its clients for over 10 years! Our dream is to build a famous 100 years enterprise!


    Q4. Do you have compatible ones?


    A5.Yes, we have our own brand:Top-trans, including 1X9,SFP, XFP, SFP+, BIDI in all kinds of specifications.


    Q5: How many years warranty for the modules ?


    OEM 3 years ,brand modules 1 year .


    Q6:What's the packing way ?


    ususlly inner box is 10pcs per pack,0.025kg/pcs ,and carton size :22cmx17cmx7cm
