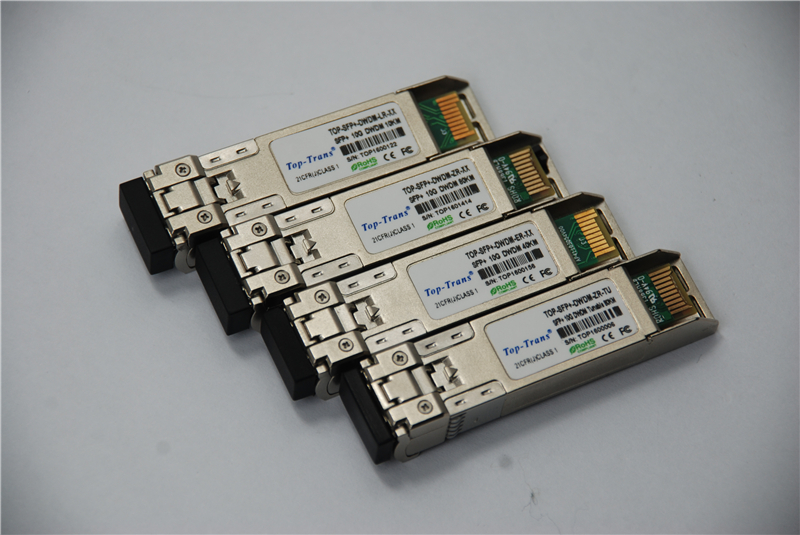

    EML 10G Smf Sfp Module 40KM DWDM Single Mode Fiber Transceiver

    Ask Lasest Price
    Brand Name : Top-trans
    Model Number : Top-SFP+-DWDM-ER
    Certification : Rohs
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram,Paypal
    Supply Ability : 2500pcs per day
    Delivery Time : 3-4days
    • Product Details
    • Company Profile

    EML 10G Smf Sfp Module 40KM DWDM Single Mode Fiber Transceiver

    DWDM SFP Single Mode Optical Transceiver 10G Fibre Module 40KM


    Optical Transceiver 10G 40KM Optical Transceiver Fetures:


    Compliant with SFF-8431,SFF-8432 and IEE802.3ae


    Cooled EML transmitter and PIN receiver


    Suitable for use in 100GHz channel spacing DWDM systems


    Digital Diagnostic Monitor Interface


    Hot pluggable


    link length up to 40km


    10GBASE-ER, and 2G/4G/ 8G/10G Fiber Channel applications.


    Low power consumption


    Operating case temperature: 0 to 70 °C


    PRODUCT DESCRIPTIONS

    This SFP+ER DWDM transceiver is designed to transmit and receive optical data over single mode optical fiber for link length 40km.


    The transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And the receiver section consists of a PIN


    photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Digital diagnostics functions are available via a 2-wire


    serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser


    bias current, transmitted optical power, received optical power and transceiver supply voltage.



    CWDM Sfp Module Optical Specification


    Fiber TypeSMF

    Relative Humidity

    95%

    Extinction Ratio :4.5dB

    Supply Voltage

    4V

    Operating Wavelength

    1270 nm-1610 nm
    Carton Size22cmx17cmx7cm
    Warranty3 years
    Packing10pcs /box

    Distance :

    40Km

    Certificate

    ROHS

    FAQ :


    Q1. Are your Optical Transceivers original?


    A1.Yes, all our optical transceivers are guaranteed 100% original!


    Q2.How do you guarantee the quality of SFP?


    A2.We have professional testing equipment and QC team. Every unit will be fully tested with perfect performance before shipping.


    Q3. What will you do if I found the product has any quality problem?


    A3.We back up every sale with our risk-free money-back guarantee! You can buy with confidence from a company in good faith


    that has been serving its clients for over 10 years! Our dream is to build a famous 100 years enterprise!


    Q4. Do you have compatible ones?


    A5.Yes, we have our own brand:Top-trans, including 1X9,SFP, XFP, SFP+, BIDI in all kinds of specifications.


    Q5: How many years warranty for the modules ?


    OEM 3 years ,brand modules 1 year .


    Q6:What's the packing way ?


    ususlly inner box is 10pcs per pack,0.025kg/pcs ,and carton size :22cmx17cmx7cm
