10Gb/S 60km BIDI Optical Transceiver Sfp Duplex LC Connector

TOPSTAR TECHNOLOGY INDUSTRIAL CO., LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 10Gb/S 60km BIDI Optical Transceiver Sfp Duplex LC Connector from wholesalers

    Buy cheap 10Gb/S 60km BIDI Optical Transceiver Sfp Duplex LC Connector from wholesalers
    • Buy cheap 10Gb/S 60km BIDI Optical Transceiver Sfp Duplex LC Connector from wholesalers
    • Buy cheap 10Gb/S 60km BIDI Optical Transceiver Sfp Duplex LC Connector from wholesalers

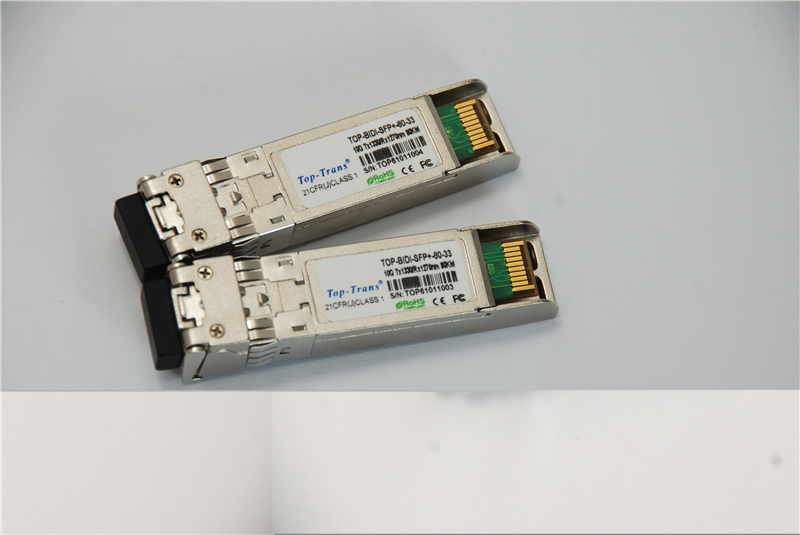

    10Gb/S 60km BIDI Optical Transceiver Sfp Duplex LC Connector

    Ask Lasest Price
    Brand Name : Finisar
    Model Number : TOP-BIDI-SFP+-ER+-27
    Certification : Rohs
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram,Paypal
    Supply Ability : 20000pcs per month
    Delivery Time : 3-4days
    • Product Details
    • Company Profile

    10Gb/S 60km BIDI Optical Transceiver Sfp Duplex LC Connector

    10Gb/S Tx1270/Rx1330nm 60km BIDI Optical Transceiver For 10G Ethernet


    TX1270/RX1330nm Optical Module Fetures:


    SFP MSA package with duplex LC connector


    ● Very low EMI and excellent ESD protection


    ● Digital Diagnostic Monitor Interface


    ● Hot pluggable


    ● 10Gb/s serial optical interface


    ● Up to 60km distance


    ● Compliant with SFP+ MSA


    ● High transmission margin


    ● +3.3V single power supply


    ● Below <1.8W power consumption


    APPLICATIONS


    ● 10GBASE-BX at 10.3125 Gb/s


    ● 10GBASE-BX at 9.953 Gb/s


    STANDARD


    ● SFP+ MSA Compliant


    ● SFF-8472 reversion 9.5 compliant


    ● IEEE802.3-2005 compliant


    ● Telcordia GR-468-CORE compliant


    ● FCC 47 CFR Part 15,Class B compliant


    ● FDA 21 CFR 1040.10 and 1040.11,class1 compliant


    ● RoHS compliant


    60km BIDI Specification


    Fiber TypeSMF

    Conector

    LC

    power supply

    3.3V

    Distance

    60Km

    Rate

    10G

    wavelength

    1270/1330 nm

    Application

    10GBASE-SR/SW 10G Ethernet

    Optical Extinction Ratio

    3.5dB
    Power dissipation< 1.8W
    CertificateROHS


    SFP+10G 60KM 1270 is hot pluggable 3.3V Small-Form-Factor transceiver module. It designed expressly for high-speed


    communication applications that require rates up to 10.7Gb/s,it designed to be compliant with SFF-8472 SFP+ MSA. The


    module data link up to 60km in 9/125um single mode fiber. The optical output can be disabled by a LVTTL logic high-level input


    of Tx Disable. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate


    the loss of an input optical signal of receiver or the link status with partner.


    FAQ


    Q1. Are your Optical Transceivers original?

    A1.Yes, all our optical transceivers are guaranteed 100% original!


    Q2.How do you guarantee the quality of SFP?

    A2.We have professional testing equipment and QC team. Every unit will be fully tested with perfect performance before shipping.


    Q3. What will you do if I found the product has any quality problem?

    A3.We back up every sale with our risk-free money-back guarantee! You can buy with confidence from a company in good faith that has been serving its clients for over 10 years! Our dream is to build a famous 100 years enterprise!


    Q4. What are the trade terms?

    A4.Lead Time: 1 day after confirm your payment (In stock, we need 1 day to fully test them)

    Payment term: Western Union, T/T, Alipay, Escow, Money Gram

    Warranty: 1 Year


    Q5. Do you have compatible ones?

    A5.Yes, we have our own brand:Top-trans, including 1X9,SFP, XFP, SFP+, BIDI in all kinds of specifications.
