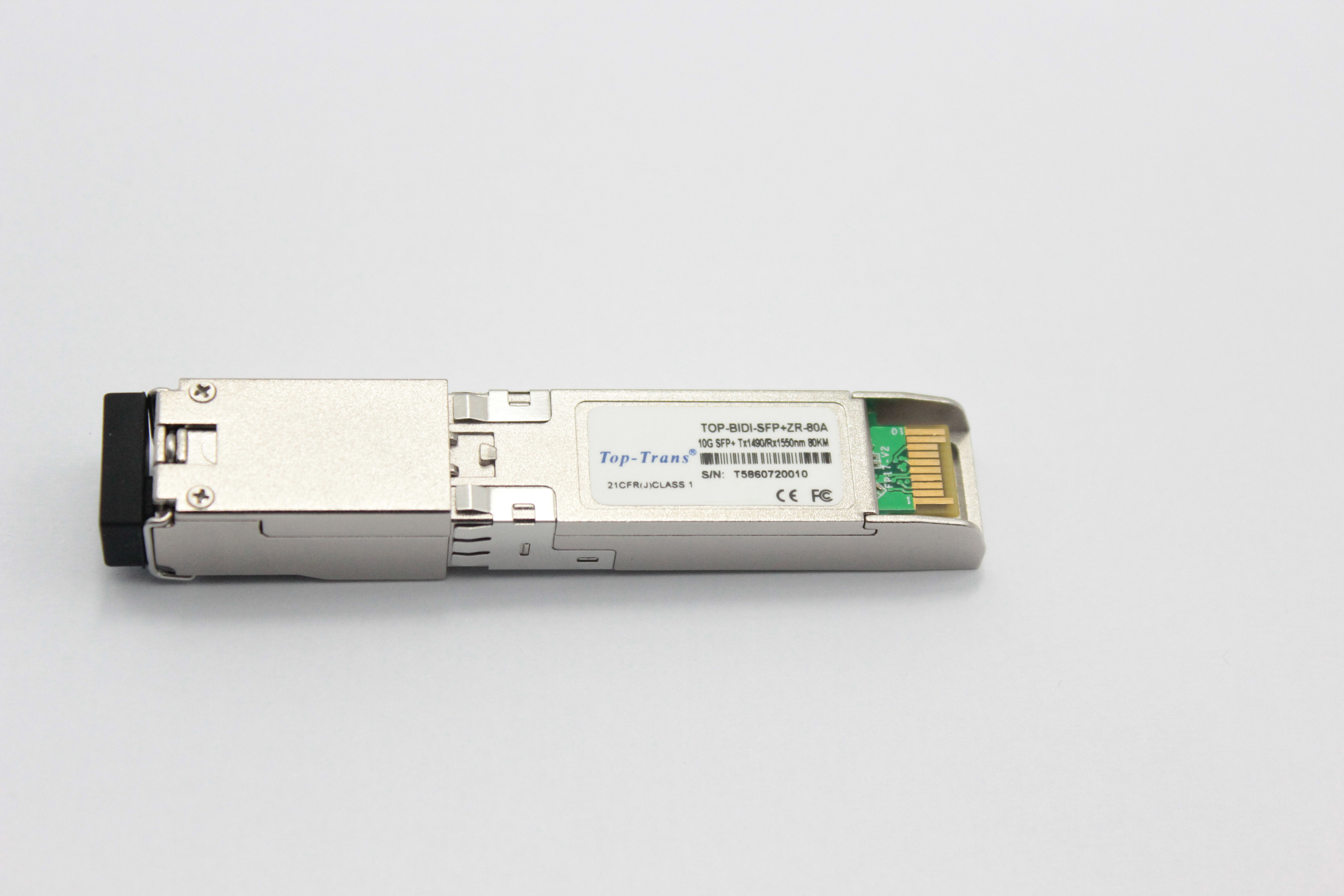

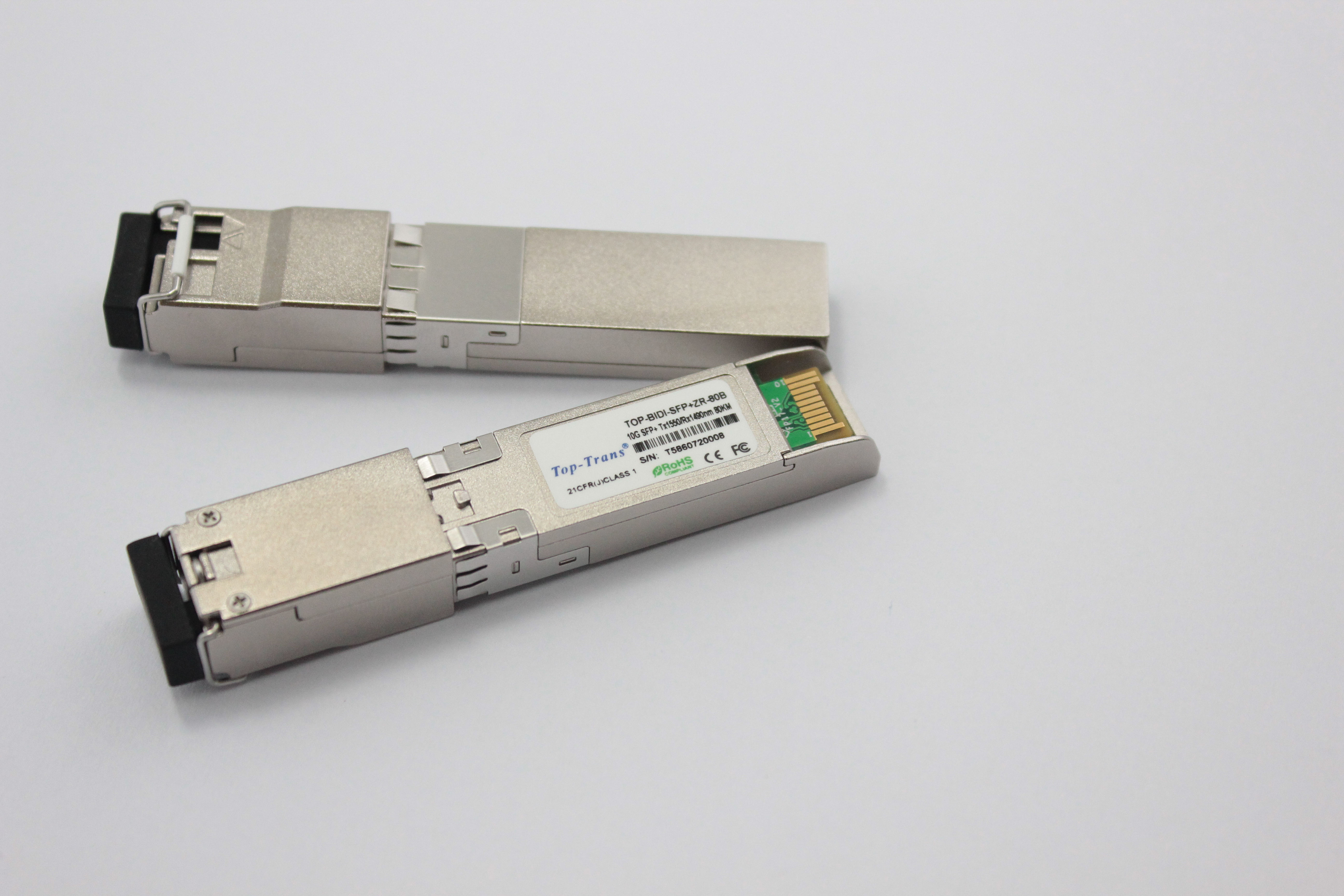

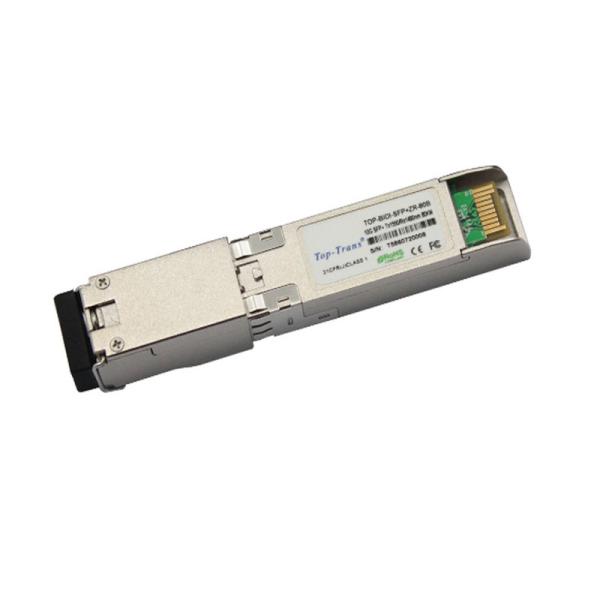

    1490nm 1550nm 10G SFP Module 80Km 3.3V SFP BIDI Transceiver

    Ask Lasest Price
    Brand Name : Finisar
    Model Number : TOP-BIDI-SFP+-ZR-49/55
    Certification : Rohs
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram,Paypal
    Supply Ability : 20000pcs per month
    Delivery Time : 3-4days
    • Product Details
    • Company Profile

    1490nm 1550nm 10G SFP Module 80Km 3.3V SFP BIDI Transceiver

    10G Optical Module 80Km 1490nm/1550nm SFP Module BIDI Transceiver


    Optical Module BIDI 80Km Fetures:


    This model Supports 9.95 to 11.3Gb/s bit rates,with Simplex LC Connector ,Hot pluggable SFP+ footprint,


    Cooled 1490nm EML transmitter 1550nm APD receiver, Cooled 1550nm EML transmitter, 1490nm APD receiver


    Applicable for 80km SMF connection, Low power consumption< 1.5W ,Power Saving ,support Digital Diagnostic Monitor Interface


    Optical interface compliant to IEEE 802.3ae 10GBASE-ZR,Electrical interface compliant to SFF-8431


    Operating case temperature: Commerical:0 to 70 °C


    APPLICATIONS


    10.3125Gbps Ethernet


    Other optical link


    80km BIDI Specification


    Fiber TypeSMF

    Lasers

    EMI

    power supply

    3.3V

    Distance

    80Km

    Form-Factor

    SFP

    wavelength

    1490/1550 nm

    Operating case temperature

    Commercial 0°C-70°C

    Optical Extinction Ratio

    9dB
    Power dissipation< 1.5W
    CertificateROHS


    TOP-BIDI-SFP+-ZR-49/55 series single mode transceiver is small form factor pluggable module for optical data


    communications such as 10G Ethernet. It is with the SFP+ 20-pin connector to allow hot plug capability. The TOP-BIDI-SFP+-


    ZR-49/50 module is designed for single mode fiber and operates at a nominal wavelength of 1490nm or 1550nm; The


    transmitter section uses a EML laser, which is class 1 laser compliant according to International Safety Standard IEC-60825.


    The receiver section consists of a APD photodiode integrated with a TIA. The transceiver designs are optimized for high


    perform -ance and cost effective to supply customers the best solutions for telecommunication.


    FAQ


    Q1. Are your Optical Transceivers original?


    A1.Yes, all our optical transceivers are guaranteed 100% original!


    Q2.How do you guarantee the quality of SFP?


    A2.We have professional testing equipment and QC team. Every unit will be fully tested with perfect performance before shipping.


    Q3. What will you do if I found the product has any quality problem?


    A3.We back up every sale with our risk-free money-back guarantee! You can buy with confidence from a company in good faith


    that has been serving its clients for over 10 years! Our dream is to build a famous 100 years enterprise!


    Q4. What are the trade terms?


    A4.Lead Time: 1 day after confirm your payment (In stock, we need 1 day to fully test them)


    Payment term: Western Union, T/T, Alipay, Escow, Money Gram

    Warranty: 1 Year


    Q5. Do you have compatible ones?


    A5.Yes, we have our own brand:Top-trans, including 1X9,SFP, XFP, SFP+, BIDI in all kinds of specifications.
