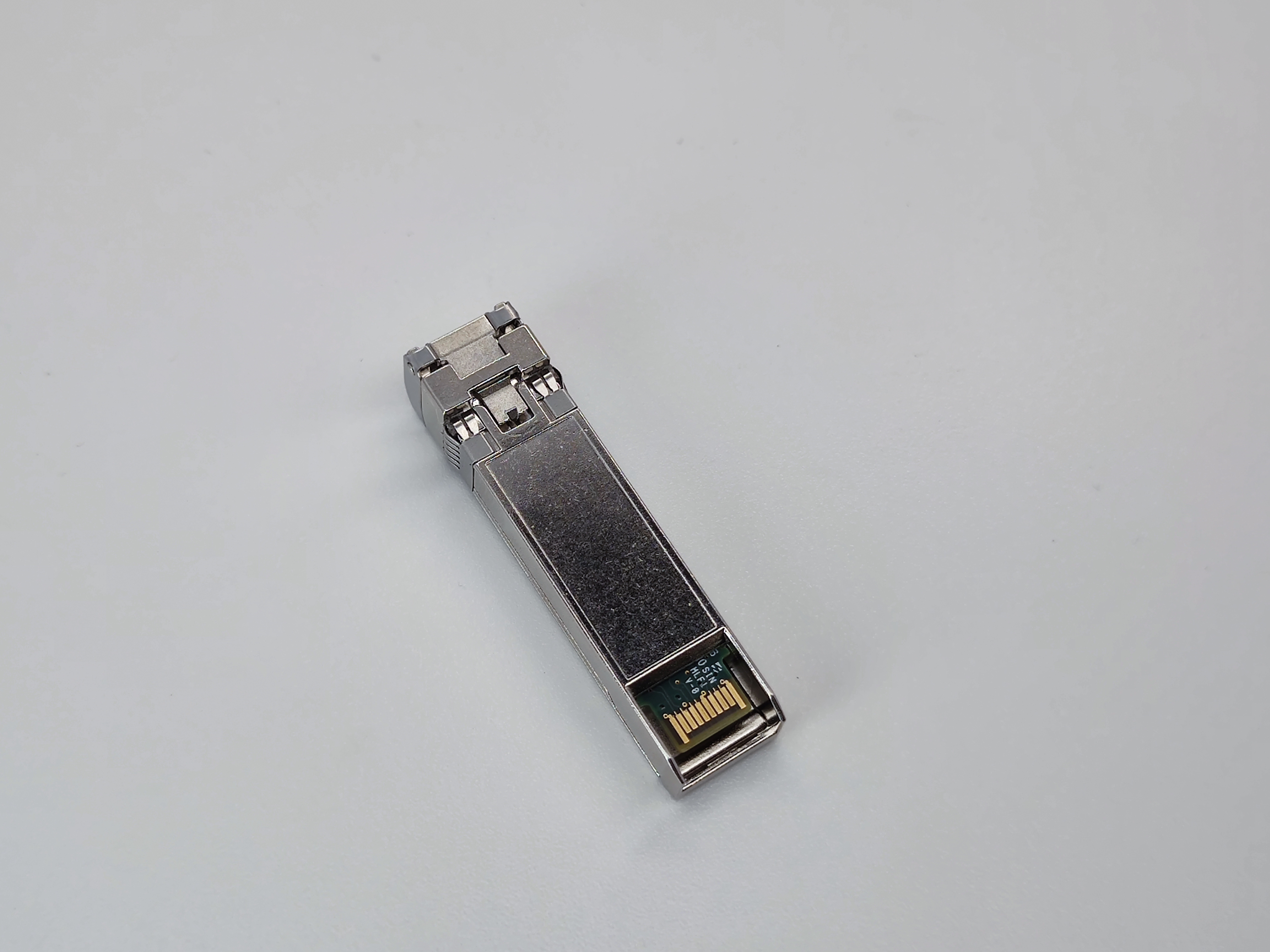

    Industrial Temperature FTLX8573D3BTL Optical Transceiver 850nm 300M Fiber Module

    Ask Lasest Price
    Brand Name : Finisar
    Model Number : FTLX8573D3BTL
    Certification : Rohs
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram,Paypal
    Supply Ability : 20000pcs per month
    Delivery Time : 3-4days
    • Product Details
    • Company Profile

    Industrial Temperature FTLX8573D3BTL Optical Transceiver 850nm 300M Fiber Module


    Industrial Temperature FTLX8573D3BTL Optical Transceiver 850nm 300M Fiber Module



    FTLX8573D3BTL Optical Module Fetures:


    Hot-pluggable SFP+ footprint


    Supports 9.95 to 10.5 Gb/s bit rates


    Power dissipation < 1W


    RoHS-6 compliant (lead-free)


    Industrial temperature range -40°C to 85°C


    Single 3.3Vpower supply


    Maximum link length of 400m on 4700 MHZ-km OM4 MMF


    Heated 850nm VCSEL laser


    Receiver limiting electrical interface


    Duplex LC connector


    Built-in digital diagnostic functions


    APPLICATIONS


    10GBASE-SR/SW 10G Ethernet


    1200-Mx-SN-I 10G Fibre Channel



    850nm 400m Fiber Module Specification

    Fiber TypeMMF

    Conector

    LC

    Temperature

    -40°C to 85°C

    Distance

    400m

    Rate

    10G

    wavelength

    850 nm

    Application

    10GBASE-SR/SW 10G Ethernet

    Optical Extinction Ratio5.5 dB
    Power dissipation< 1W


    Finisar’s FTLX8573D3BTL Industrial Temperature 10Gb/s SFP+ transceivers are designed for use in 10-Gigabit Ethernet


    links over multimode fiber. They are compliant with SFF-84311 , SFF-84322 , IEEE 802.3ae 10GBASE-SR/SW3 and 10G


    Fibre Channel 1200-Mx-SN-I4 . Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-


    84725 . The FTLX8573D3BTL is a “limiting module”, i.e., it employs a limiting receiver. Host board designers using an EDC


    PHY IC should follow the IC manufacturer’s recommended settings for interoperating the host-board EDC PHY with a


    limiting receiver SFP+ module. The optical transceivers are compliant per the RoHS Directive 2011/65/EU. See Finisar


    Application Note AN-2038 for more details.
