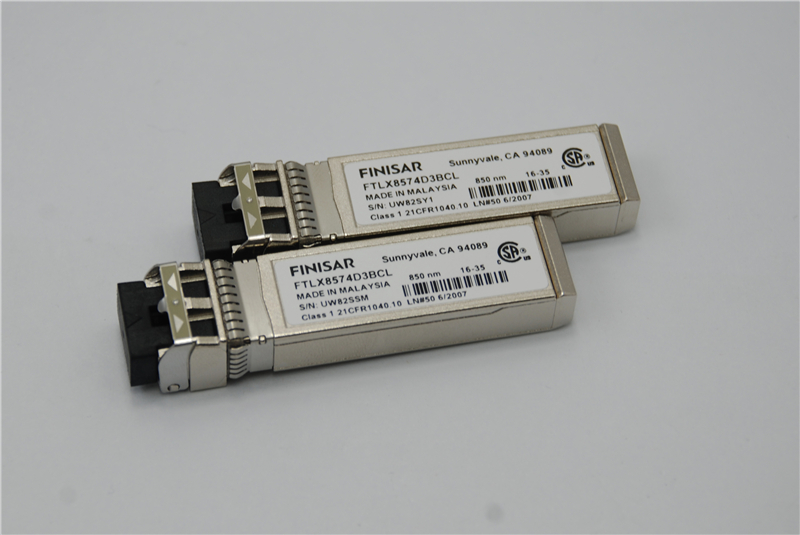

MMF 10G SFP Module 400m 850nm Multimode Fiber Transceiver

TOPSTAR TECHNOLOGY INDUSTRIAL CO., LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap MMF 10G SFP Module 400m 850nm Multimode Fiber Transceiver from wholesalers

    Buy cheap MMF 10G SFP Module 400m 850nm Multimode Fiber Transceiver from wholesalers
    • Buy cheap MMF 10G SFP Module 400m 850nm Multimode Fiber Transceiver from wholesalers
    • Buy cheap MMF 10G SFP Module 400m 850nm Multimode Fiber Transceiver from wholesalers

    MMF 10G SFP Module 400m 850nm Multimode Fiber Transceiver

    Ask Lasest Price
    Brand Name : Finisar
    Model Number : FTLX8574D3BCL
    Certification : Rohs
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram,Paypal
    Supply Ability : 20000pcs per month
    Delivery Time : 3-4days
    • Product Details
    • Company Profile

    MMF 10G SFP Module 400m 850nm Multimode Fiber Transceiver


    Multimode 10G Transceiver 850nm Fiber Module Low Consumption Optical Module


    Low Consumption Optical Module Fetures:


    Hot-pluggable SFP+ footprint


    • Supports 9.95 to 10.5 Gb/s bit rates*


    • Power dissipation < 1W


    • RoHS-6 compliant (lead-free)


    • Commercial temperature range -5°C to 70°C


    • Single 3.3Vpower supply


    • Maximum link length of 400m on OM4 MMF


    • Uncooled 850nm VCSEL laser


    • Receiver limiting electrical interface


    • Duplex LC connector


    • Built-in digital diagnostic functions


    APPLICATIONS


    • 10GBASE-SR/SW 10G Ethernet


    • 1200-Mx-SN-I 10G Fibre Channel


    Multimode 10G Transceiver Specification

    Fiber TypeMMF

    Conector

    LC

    power supply

    3.3V

    Distance

    400m

    Rate

    10G

    wavelength

    850 nm

    Application

    10GBASE-SR/SW 10G Ethernet

    Optical Extinction Ratio5.5 dB
    Power dissipation< 1W
    TransmitterVCSEL


    Finisar’s FTLX8574D3BCL 10Gb/s SFP+ transceivers are designed for use in 10-Gigabit Ethernet links over multimode


    fiber. They are compliant with SFF-84311 , SFF-84322 , IEEE 802.3-2012 10GBASE-SR/SW3 and 10G Fibre Channel


    1200-Mx-SN-I 4 . Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF84725 . The


    FTLX8574D3BCL is a “limiting module”, i.e., it employs a limiting receiver. Host board designers using an EDC PHY IC


    should follow the IC manufacturer’s recommended settings for interoperating the host-board EDC PHY with a limiting


    receiver SFP+ module. The optical transceiver is compliant per the RoHS Directive 2011/65/EU6 . See Finisar Application


    Note AN-20387 for more details .10G 850 nm 400m long distance make your network running smoothly .


    FAQ


    Q1. Are your Optical Transceivers original?


    A1.Yes, all our optical transceivers are guaranteed 100% original!


    Q2.How do you guarantee the quality of SFP?


    A2.We have professional testing equipment and QC team. Every unit will be fully tested with perfect performance before shipping.


    Q3. What will you do if I found the product has any quality problem?


    A3.We back up every sale with our risk-free money-back guarantee! You can buy with confidence from a company in good faith


    that has been serving its clients for over 10 years! Our dream is to build a famous 100 years enterprise!


    Q4. What are the trade terms?


    A4.Lead Time: 1 day after confirm your payment (In stock, we need 1 day to fully test them)


    Payment term: Western Union, T/T, Alipay, Escow, Money Gram


    Q5 .How many years warranty and lead time ?


    OEM compatible with 3 years warranty and lead time about 3-4 days .
