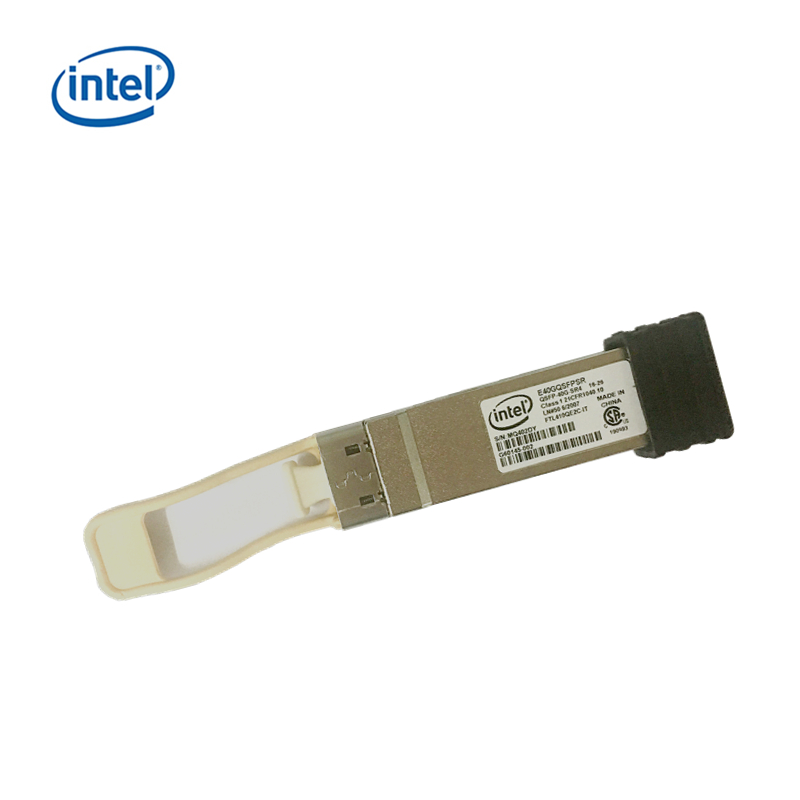

    850nm 40G SR4 100m QSFP+ Optical Transceiver INTEL FTL410QE2C-IT

    Ask Lasest Price
    Brand Name : Intel
    Model Number : FTL410QE2C-IT
    Certification : RoHS
    Price : Price is negotiable
    Payment Terms : T/T, Paypal、Credit card
    Supply Ability : 5000pcs/month
    Delivery Time : 3-5 working day
    • Product Details
    • Company Profile

    850nm 40G SR4 100m QSFP+ Optical Transceiver INTEL FTL410QE2C-IT

    INTEL FTL410QE2C-IT 850nm 40G SR4 100m QSFP+ Original Optical Transceiver Module


    Fiber TypeSingle mode
    Weight0.06kg
    Warranty1 year
    Tx power-7.60 to -1.00 dBm
    Rx sensitivity-9.5 to -2.40 dBm
    Extinction Ratio3.0dB
    Power Consumption1.5W
    Single Power Supply3.3V

    FTL410QE2C-IT Features


    • Four-channel full-duplex transceiver module

    • Hot Pluggable QSFP+ form factor

    • Maximum link length of 100m on OM3 Multimode Fiber (MMF) and 150m on OM4 MMF

    • Multirate capability: 1.06Gb/s to 10.5Gb/s per channel

    • Unretimed XLPPI electrical interface

    • Maximum power dissipation <1.5W

    • Reliable VCSEL array technology

    • Commercial operating case temperature range: 0ºC to 70ºC

    • Single 1x12 MPO receptacle

    • RoHS-6 Complian

    APPLICATIONS


    40GBASE-SR4 40G Ethernet


    Breakout to 10GBASE-SR Ethernet


    Proprietary interconnections


    FTL410QE2C-IT description


    Finisar’s FTL410QE2C QSFP+ transceiver modules are designed for use in 40 Gigabit per second links over multimode fiber.


    They are compliant with the QSFP+ MSA1,2 and IEEE 802.3ba 40GBASE-SR43 .


    Module-level digital diagnostic functions are available via an I2C interface, as specified by the QSFP+ MSA.




    FAQ


    Q1. Are your Optical Transceivers original?


    A1.Yes, all our optical transceivers are guaranteed 100% original!


    Q2.How do you guarantee the quality of SFP?


    A2.We have professional testing equipment and QC team. Every unit will be fully tested with perfect performance before shipping.


    Q3. What is the operating temperature range of optical modules?


    A3: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)


    Extended temperature range(EXT):-5 to 85°C(23 to 185°F)


    Industrial temperature range(IND)::-40 to 85°C(-40 to 185°F)


    Storage temperature range:-40 to +85°C(-40 to 185°F)


    Q4. What payment terms do you accept?
    A4. T/T, Paypal,Credit card.

    Q5. What are the trade terms?


    A5.Lead Time: 1 day after confirm your payment (In stock, we need 1 day to fully test them)


    Payment term: Western Union, T/T, Alipay, Escow, Money Gram


    Warranty: 1 Year
