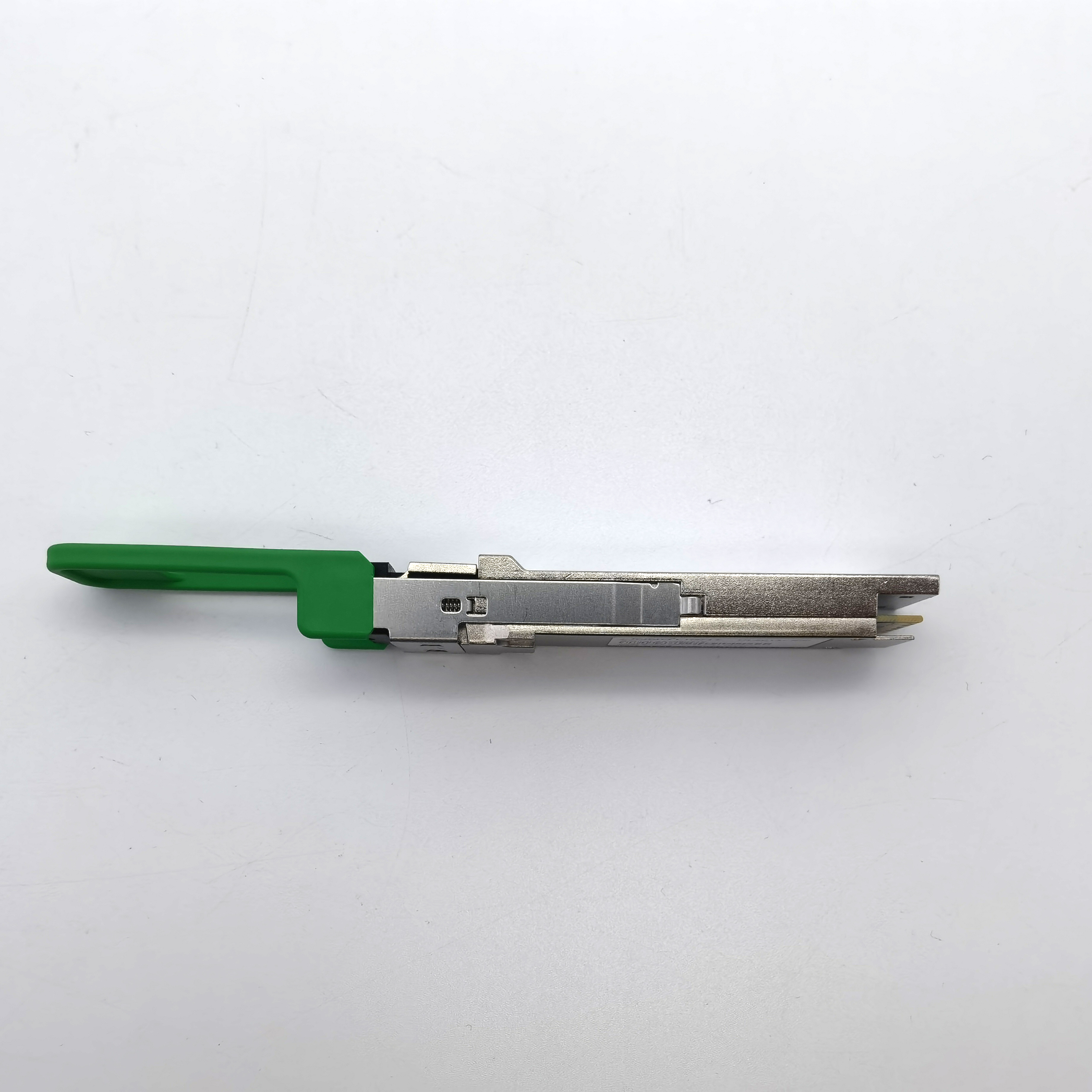

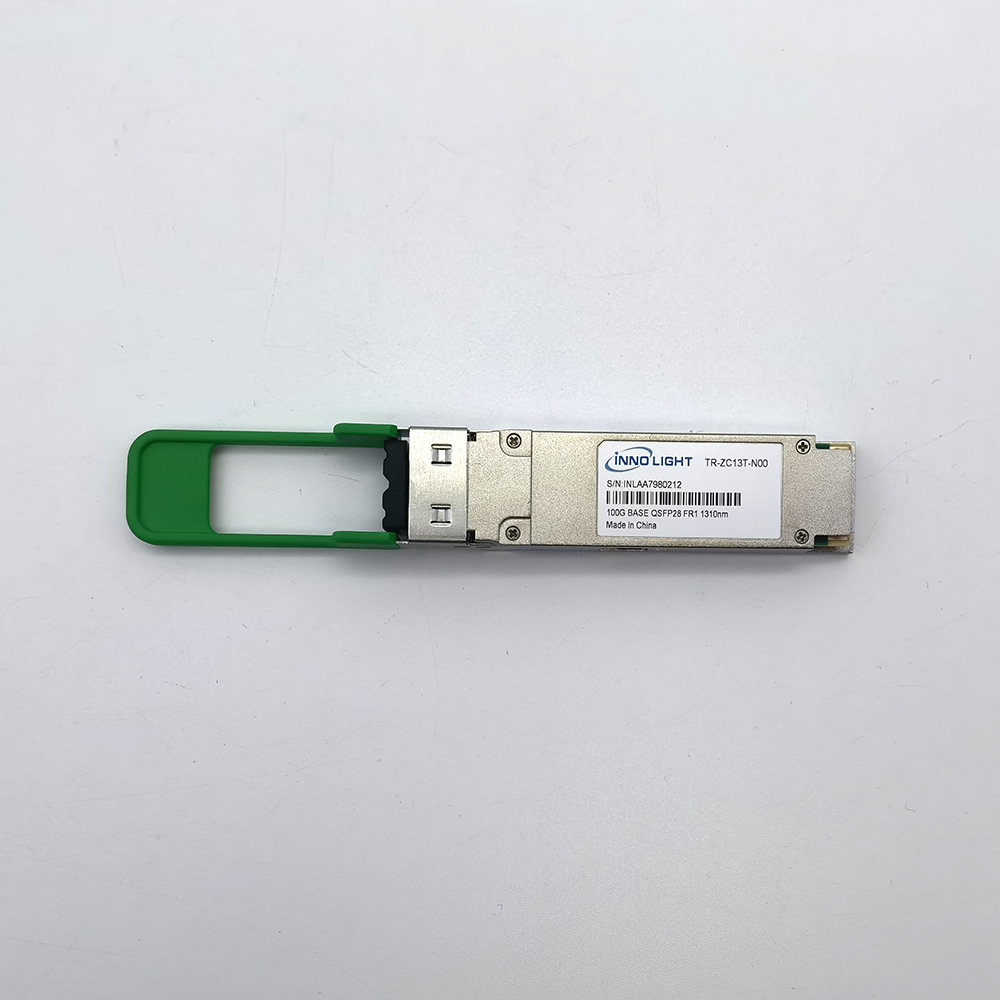

    1310nm Original SFP Module 100Gbps QSFP28 TR-ZC13T-N00 Innolight

    Ask Lasest Price
    Brand Name : Innolight
    Model Number : TR-ZC13T-N00
    Certification : RoHS
    Price : Price is negotiable
    Payment Terms : T/T, Paypal、Credit card
    Supply Ability : 5000pcs/month
    Delivery Time : 3-5 working day
    • Product Details
    • Company Profile

    1310nm Original SFP Module 100Gbps QSFP28 TR-ZC13T-N00 Innolight

    Innolight 100Gb/s QSFP28 Single TR-ZC13T-N00 Original Optical Transceiver Module


    Fiber TypeSingle mode
    Weight0.06kg
    Warranty1 year
    Tx power-2.0 to +2.0dBm
    Rx sensitivity

    -2.0 to +2.0 dBm

    Extinction Ratio3.5dB
    Power Consumption4.5W
    ApplicationsData Center Interconnect

    TR-ZC13T-N00 Features


    • QSFP28 MSA compliant

    • Supports 53.125Gbaud

    • 100G Lambda MSA 100G-FR Specification compliant

    • Up to 2km transmission on single mode fiber (SMF) with FEC

    • Operating case temperature: 0 to 70oC

    • 4x25G electrical interface (OIF CEI-28GVSR)

    • Maximum power consumption 4.5W

    • LC duplex connector RoHS compliant

    APPLICATIONS


    • Data Center Interconnect

    • 100G Ethernet

    • Enterprise networking

    TR-ZC13T-N00 description


    This product is a transceiver module designed for 2km optical communication applications.


    The module incorporates one channel optical signal, on 1310nm center wavelength, operating at 50Gbaud data rate.


    The transmitter path incorporates an EML Driver and a cooled EML together.


    On the receiver path, the input optical signal is coupled to a Pin photodiode detector.


    A DSP based gearbox is used to convert 4x25Gbps NRZ signals to 1x50Gbaud PAM4 signal.


    Also a 4-channel retimer and FEC block are integrated in this DSP.


    The electrical interface is compliant with IEEE 802.3cd and QSFP28 MSA in the transmitting and receiving directions, and optical interface is compliant to IEEE 802.3cd and 100G Lambda MSA with Duplex LC connector.


    The module has a maximum power consumption of 4.5W.




    FAQ


    Q1. Are your Optical Transceivers original?


    A1.Yes, all our optical transceivers are guaranteed 100% original!


    Q2.How do you guarantee the quality of SFP?


    A2.We have professional testing equipment and QC team. Every unit will be fully tested with perfect performance before shipping.


    Q3. What is the operating temperature range of optical modules?


    A3: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)


    Extended temperature range(EXT):-5 to 85°C(23 to 185°F)


    Industrial temperature range(IND)::-40 to 85°C(-40 to 185°F)


    Storage temperature range:-40 to +85°C(-40 to 185°F)


    Q4. What payment terms do you accept?
    A4. T/T, Paypal,Credit card.

    Q5. What are the trade terms?


    A5.Lead Time: 1 day after confirm your payment (In stock, we need 1 day to fully test them)


    Payment term: Western Union, T/T, Alipay, Escow, Money Gram


    Warranty: 1 Year
