100Gb/s LR4 QSFP28 Optical Transceiver Innolight TR-FC13L-N00

TOPSTAR TECHNOLOGY INDUSTRIAL CO., LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 100Gb/s LR4 QSFP28 Optical Transceiver Innolight TR-FC13L-N00 from wholesalers

    Buy cheap 100Gb/s LR4 QSFP28 Optical Transceiver Innolight TR-FC13L-N00 from wholesalers
    • Buy cheap 100Gb/s LR4 QSFP28 Optical Transceiver Innolight TR-FC13L-N00 from wholesalers
    • Buy cheap 100Gb/s LR4 QSFP28 Optical Transceiver Innolight TR-FC13L-N00 from wholesalers

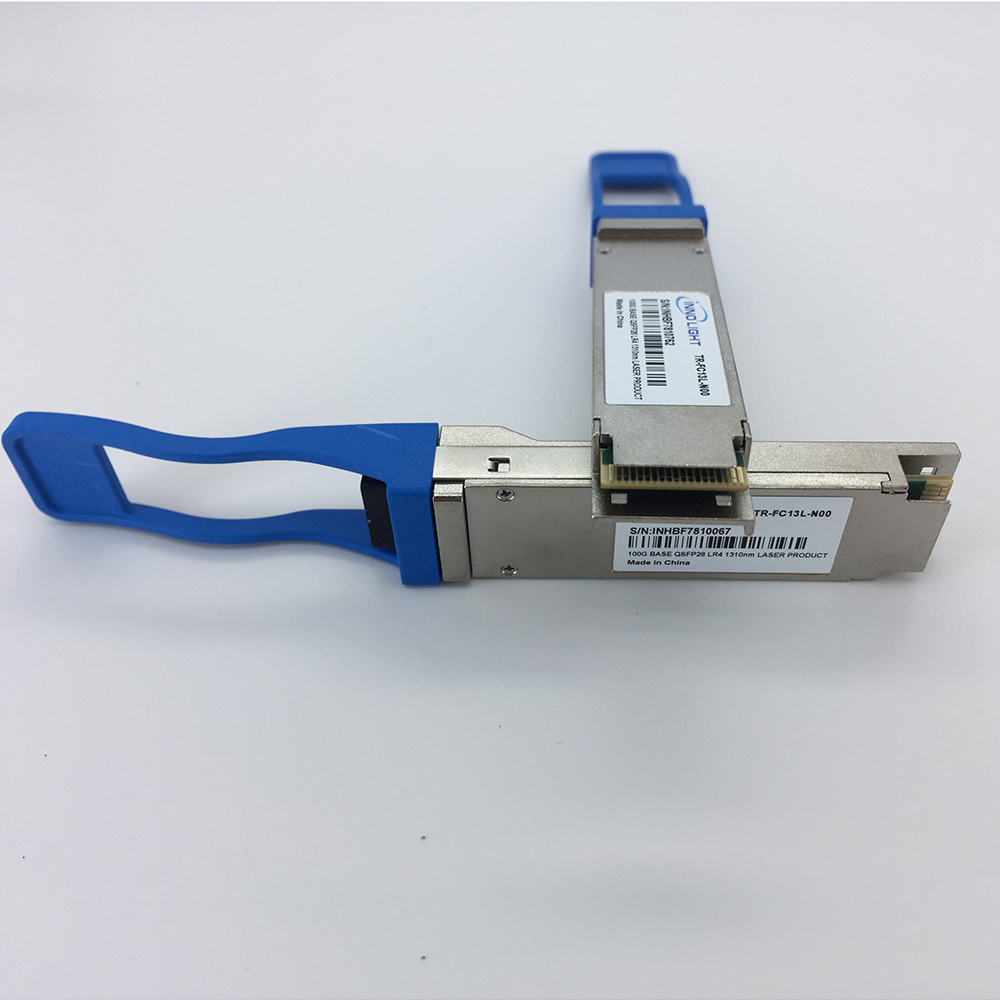

    100Gb/s LR4 QSFP28 Optical Transceiver Innolight TR-FC13L-N00

    Ask Lasest Price
    Brand Name : Innolight
    Model Number : TR-FC13L-N00
    Certification : RoHS
    Price : Price is negotiable
    Payment Terms : T/T, Paypal、Credit card
    Supply Ability : 5000pcs/month
    Delivery Time : 3-5 working day
    • Product Details
    • Company Profile

    100Gb/s LR4 QSFP28 Optical Transceiver Innolight TR-FC13L-N00

    Innolight 100Gb/s QSFP28 LR4 Optical Module Transceiver TR-FC13L-N00


    Fiber TypeSingle mode
    Weight0.06kg
    Warranty1 year
    Tx power-2.0 to +5.5dBm
    Rx sensitivity

    -10.6 to +8.5 dBm

    Extinction Ratio4.0 dB
    Power Consumption4.5W
    Applications100GBASE-LR4 Ethernet Links

    TR-FC13L-N00 Features


    • Hot pluggable QSFP28 MSA form factor

    • Compliant to IEEE 802.3ba 100GBASE-LR4

    • Supports 103.1Gb/s aggregate bit rate

    • Up to 10km reach for G.652 SMF

    • Single +3.3V power supply

    • Operating case temperature: 0~70oC

    • Transmitter: cooled 4x25Gb/s LAN WDM EML TOSA (1295.56, 1300.05, 1304.58, 1309.14nm)

    • Receiver: 4x25Gb/s PIN ROSA

    • 4x25G electrical interface (OIF CEI-28G-VSR)

    • Maximum power consumption 4.5W

    • Duplex LC receptacle RoHS-6 compliant

    APPLICATIONS


    • 100GBASE-LR4 Ethernet Links

    • Infiniband QDR and DDR interconnects

    • Client-side 100G Telecom connections

    TR-FC13L-N00 description


    This product is a 100Gb/s transceiver module designed for optical communication applications compliant to 100GBASE-LR4 of the IEEE 802.3ba standard.


    The module converts 4 input channels of 25Gb/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission.


    Reversely on the receiver side, the module de-multiplexes a 100Gb/s optical input into 4 channels of LAN WDM optical signals and then converts them to 4 output channels of electrical data.




    FAQ


    Q1. Are your Optical Transceivers original?


    A1.Yes, all our optical transceivers are guaranteed 100% original!


    Q2.How do you guarantee the quality of SFP?


    A2.We have professional testing equipment and QC team. Every unit will be fully tested with perfect performance before shipping.


    Q3. What is the operating temperature range of optical modules?


    A3: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)


    Extended temperature range(EXT):-5 to 85°C(23 to 185°F)


    Industrial temperature range(IND)::-40 to 85°C(-40 to 185°F)


    Storage temperature range:-40 to +85°C(-40 to 185°F)


    Q4. What payment terms do you accept?
    A4. T/T, Paypal,Credit card.

    Q5. What are the trade terms?


    A5.Lead Time: 1 day after confirm your payment (In stock, we need 1 day to fully test them)


    Payment term: Western Union, T/T, Alipay, Escow, Money Gram


    Warranty: 1 Year
