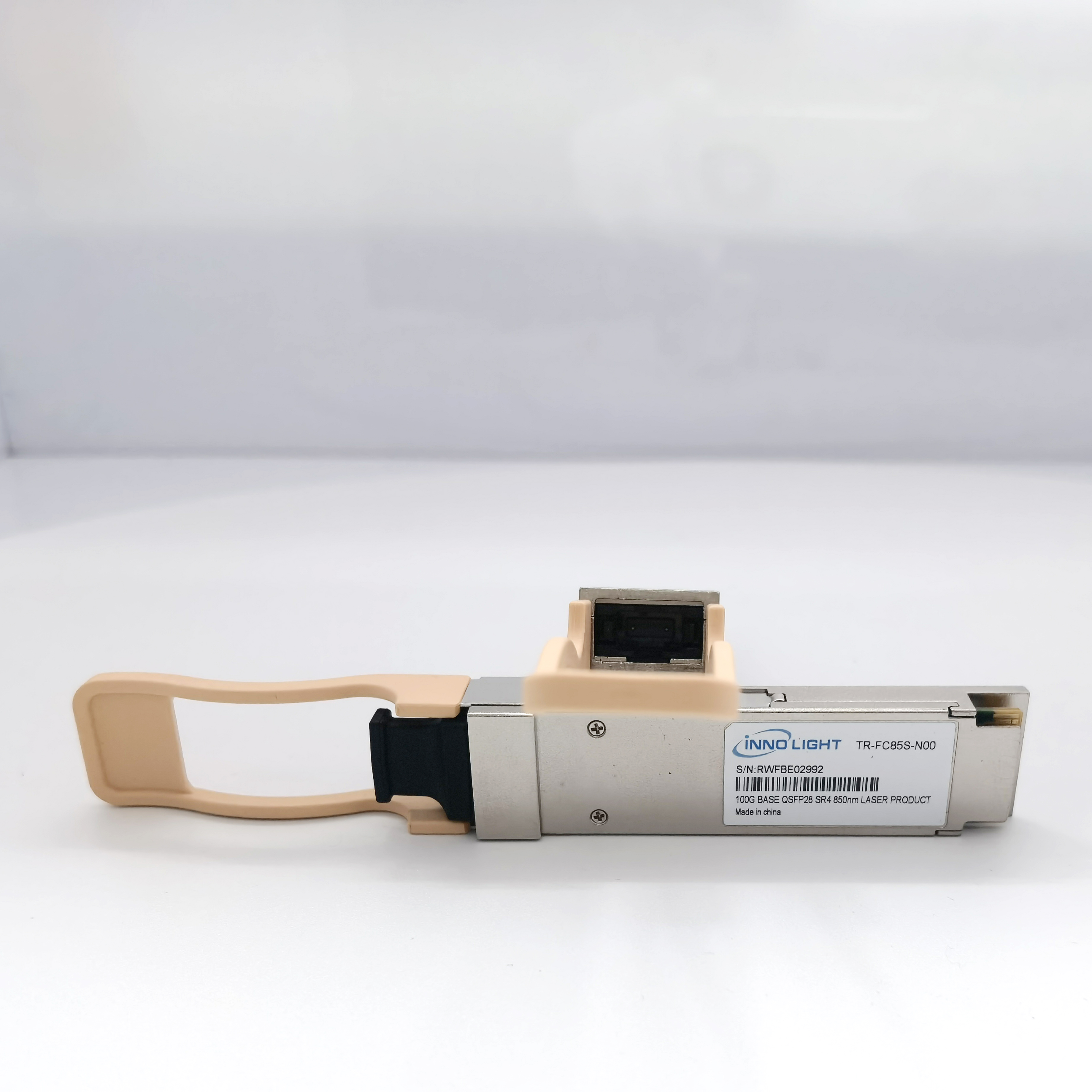

    100GBASE-SR4 Original SFP Module Innolight 100G QSFP28 SR4 TR-FC85S-N00

    Ask Lasest Price
    Brand Name : Innolight
    Model Number : TR-FC85S-N00
    Certification : RoHS
    Price : Price is negotiable
    Payment Terms : T/T, Paypal、Credit card
    Supply Ability : 5000pcs/month
    Delivery Time : 3-5 working day
    • Product Details
    • Company Profile

    100GBASE-SR4 Original SFP Module Innolight 100G QSFP28 SR4 TR-FC85S-N00

    Innolight 100Gb/s QSFP28 SR4 Optical Transceiver Module TR-FC85S-N00


    Fiber TypeSingle mode
    Weight0.06kg
    Warranty1 year
    Tx power-2.4 to +8.4dBm
    Rx sensitivity

    -3.0 to +9.2 dBm

    Extinction Ratio2.0 dB
    Power Consumption2.5W
    ApplicationsData Center

    TR-FC85S-N00 Features


    • QSFP28 MSA compliant

    • Compliant to IEEE 802.3bm 100GBASE-SR4

    • Four independent full-duplex channels

    • Supports 103.1Gb/s aggregate bit rate

    • Up to 100m OM4 MMF transmission

    • Operating case temperature: 0 to 70oC

    • Single 3.3V power supply

    • 4x25G electrical interface (OIF CEI-28GVSR)

    • Maximum power consumption 2.5W

    • MTP/MPO optical connector

    • RoHS-6 compliant

    APPLICATIONS


    • ​Rack to Rack

    • Data Center

    • Infiniband QDR, DDR and SDR

    • 100G Ethernet

    TR-FC85S-N00 description


    This product is a parallel 100Gb/s Quad Small Form-factor Pluggable (QSFP28) optical module.


    It provides increased port density and total system cost savings.


    The QSFP28 full-duplex optical module offers 4 independent transmit and receive channels, each capable of 25Gb/s operation for an aggregate data rate of 100Gb/s on 100 meters of OM4 multi-mode fiber.


    This product converts parallel electrical input signals into parallel optical signals, by a driven Vertical Cavity Surface Emitting Laser (VCSEL) array.


    The transmitter module accepts electrical input signals compatible with Common Mode Logic (CML) levels.




    FAQ


    Q1. Are your Optical Transceivers original?


    A1.Yes, all our optical transceivers are guaranteed 100% original!


    Q2.How do you guarantee the quality of SFP?


    A2.We have professional testing equipment and QC team. Every unit will be fully tested with perfect performance before shipping.


    Q3. What is the operating temperature range of optical modules?


    A3: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)


    Extended temperature range(EXT):-5 to 85°C(23 to 185°F)


    Industrial temperature range(IND)::-40 to 85°C(-40 to 185°F)


    Storage temperature range:-40 to +85°C(-40 to 185°F)


    Q4. What payment terms do you accept?
    A4. T/T, Paypal,Credit card.

    Q5. What are the trade terms?


    A5.Lead Time: 1 day after confirm your payment (In stock, we need 1 day to fully test them)


    Payment term: Western Union, T/T, Alipay, Escow, Money Gram


    Warranty: 1 Year
