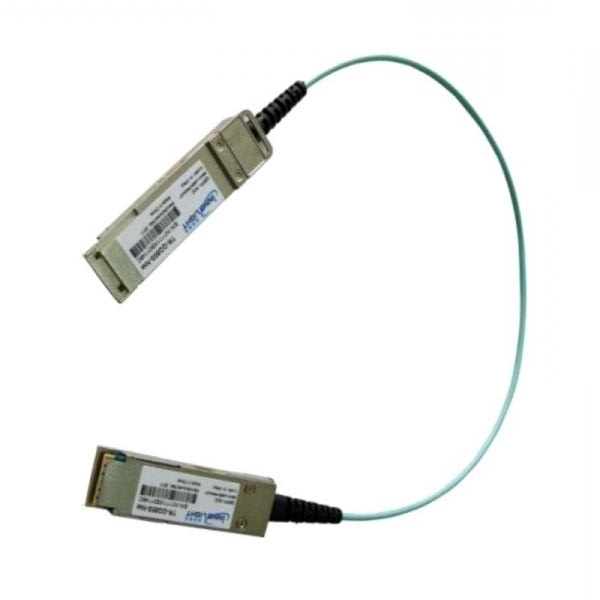

    100Gb/s Parallel Active Optical Cable AOC Innolight QSFP28 TF-FCxxx-N00

    Ask Lasest Price
    Brand Name : Innolight
    Model Number : TF-FCxxx-N00
    Certification : RoHS
    Price : Price is negotiable
    Payment Terms : T/T, Paypal、Credit card
    Supply Ability : 5000pcs/month
    Delivery Time : 3-5 working day
    • Product Details
    • Company Profile

    100Gb/s Parallel Active Optical Cable AOC Innolight QSFP28 TF-FCxxx-N00

    Innolight QSFP28 100Gb/s Parallel Active Optical Cable (AOC) TF-FCxxx-N00


    Fiber TypeSingle mode
    ConnectorLC
    Single power supply+3.3v
    Extinction Ratio3.5 dB
    Power Consumption2.5W
    Applications100G Ethernet links

    QSFP28 100Gb/s TF-FCxxx-N00 Features


    • 4 independent full-duplex channels
    • Up to 28Gb/s data rate per channel
    • QSFP MSA compliant
    • Up to 100m OM4 MMF transmission
    • Operating case temperature: 0 to 70oC
    • Single 3.3V power supply
    • Maximum power consumption 3.5W each terminal
    • RoHS-6 compliant

    QSFP28 100Gb/s TF-FCxxx-N00 APPLICATIONS


    • 100G Ethernet
    • Infiniband EDR

    QSFP28 100Gb/s TF-FCxxx-N00 description


    QSFP28 100Gb/s TF-FCxxx-N00 is a high data rate parallel active optical cable (AOC), to overcome the bandwidth limitation of traditional copper cable.
    The AOC offers 4 independent data transmission channels and 4 data receiving channels via the multimode ribbon fibers, each capable of 25Gb/s operation.
    Consequently, an aggregate data rate of 100Gb/s over 100 meters transmission can be achieved by this product, to support the ultra-fast computing data exchange.

    QSFP28 100Gb/s TF-FCxxx-N00 Functional Description


    QSFP28 100Gb/s TF-FCxxx-N00 converts the parallel electrical input signals into parallel optical signals (light), by a driven Vertical Cavity Surface Emitting Laser (VCSEL) array.


    The light propagates through the ribbon fiber individually, and be captured by the photo diode array.


    The optical signals are converted into parallel electrical signals and outputted.


    Consequently, each terminal of the cable has 8 ports, 4 for data transmission and 4 for data receiving, to provide totally 100Gb/s data exchange.



    FAQ


    Q1. Are your Optical Transceivers original?


    A1.Yes, all our optical transceivers are guaranteed 100% original!


    Q2.How do you guarantee the quality of SFP?


    A2.We have professional testing equipment and QC team. Every unit will be fully tested with perfect performance before shipping.


    Q3. What is the operating temperature range of optical modules?


    A3: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)


    Extended temperature range(EXT):-5 to 85°C(23 to 185°F)


    Industrial temperature range(IND)::-40 to 85°C(-40 to 185°F)


    Storage temperature range:-40 to +85°C(-40 to 185°F)


    Q4. What payment terms do you accept?
    A4. T/T, Paypal,Credit card.

    Q5. What are the trade terms?


    A5.Lead Time: 1 day after confirm your payment (In stock, we need 1 day to fully test them)


    Payment term: Western Union, T/T, Alipay, Escow, Money Gram


    Warranty: 1 Year
