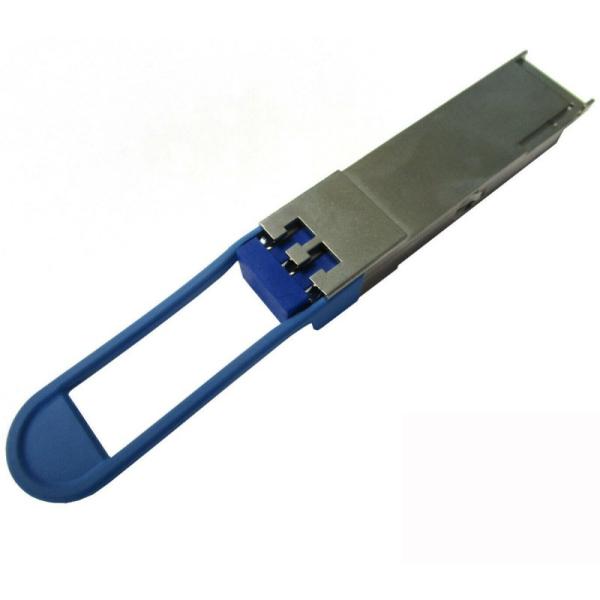

    Duplex LC QSFP28 100G-FR / 100GBASE-FR1 SMF 2km Fiber Optical Transceiver

    Ask Lasest Price
    Brand Name : Juniper
    Model Number : QSFP28 100G-FR/100GBASE-FR1
    Certification : CE ROHS
    Price : price is negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 100pcs per month
    Delivery Time : 2-3 working days
    • Product Details
    • Company Profile

    Duplex LC QSFP28 100G-FR / 100GBASE-FR1 SMF 2km Fiber Optical Transceiver

    QSFP28 100G-FR/100GBASE-FR1 Duplex LC connector SMF 2 km Fiber Optical Transceiver


    Part Number 740-088320

    Speed 100 Gigabit Ethernet

    Breakout Capable No

    Transceiver Type QSFP28

    Product Type Optical Transceiver

    Connector Duplex LC

    Monitoring Available Yes

    Digital Optical MonitoringYes

    Additional InformationThese transceivers interoperate with the QDD-4X100G breakout optics. For example, the QDD-4X100G-FR interconnects with four QSFP-100G-FR transceivers. The QSFP-100G-FR transceivers interconnect in single links (QSFP-100G-FR to QSFP-100G-FR or to QSFP-100G-DR) and interoperate at the shortest link length. The QSFP-100G-FR transceivers are not compatible with earlier-generation 100-Gbps transceivers (for example, QSFP-100G-CWDM4 and QSFP-100G-LR4).Standard: 100G Lambda MSA, 100G-FR IEEE P802.3cu, 100GBASE-FR1MSA compliance (SFF, for e.g. SFF-8665)SFF-8665Digital Diagnostic Monitoring

    Transceiver Temperature

    Transceiver Supply Voltage

    Tx Bias Current

    Tx output power

    Rx received optical power

    Supported applications100G-FR or 100GBASE-FR1 (clause 140), CAUI-4 (no FEC)Signaling rate, each lane

    Host lane: NRZ; 25.78125 GBd ± 100 ppm

    Media lane: PAM4; 53.125 GBd ± 100 ppm

    Transmitter fibers1Transmitter wavelengths (range)1304.5 nm to 1317.5 nmReceive lane wavelengths (range)1304.5 nm to 1317.5 nmTransmitter output power, each lane (minimum)-2.4 dBmTransmitter output power, each lane (maximum)4 dBmTransmitter and dispersion eye closure for PAM4 (TDECQ), each lane (maximum)3.4 dBReceiver input power, each lane (minimum)-7.1 dBmReceiver input power, each lane (maximum)4.5 dBmReceiver sensitivity (OMA), each lane (maximum)

    For TECQ < 1.4 dB: -4.5 dBm

    For 1.4 dB ≤ TECQ ≤ 3.4 dB: -5.9 + TECQ dBm

    Stressed receiver sensitivity (OMA) each lane (maximum)-2.5 dBmCable typeSMFCore size/cladding9/125 µmFiber gradeIEEE Clause 140.10.1: IEC 60793-2-50 type B1.1, type B1.3, or type B6_a or requirements in IEEE Table 140–13 where they differ.Distance2 kmMaximum Power consumption (W)4.0 WOperating Temperature (range)0° C to 70° CStorage temperature–40° C to 85° CTypical Weight & Dimensions

    Weight: 0.2 kg

    Height: 13.5 mm

    Width: 18.35 mm

    Depth: 73.4 mm
