TR-FC13D-N00 100G QSFP28 ER4 Lite Optical Transceiver InnoLight

TOPSTAR TECHNOLOGY INDUSTRIAL CO., LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap TR-FC13D-N00 100G QSFP28 ER4 Lite Optical Transceiver InnoLight from wholesalers

    Buy cheap TR-FC13D-N00 100G QSFP28 ER4 Lite Optical Transceiver InnoLight from wholesalers
    • Buy cheap TR-FC13D-N00 100G QSFP28 ER4 Lite Optical Transceiver InnoLight from wholesalers
    • Buy cheap TR-FC13D-N00 100G QSFP28 ER4 Lite Optical Transceiver InnoLight from wholesalers

    TR-FC13D-N00 100G QSFP28 ER4 Lite Optical Transceiver InnoLight

    Ask Lasest Price
    Brand Name : InnoLight
    Model Number : TR-FC13D-N00
    Certification : RoHS-6
    Price : Price is negotiable
    Payment Terms : T/T, Paypal、Credit card
    Supply Ability : 5000pcs/month
    Delivery Time : 3-5 working day
    • Product Details
    • Company Profile

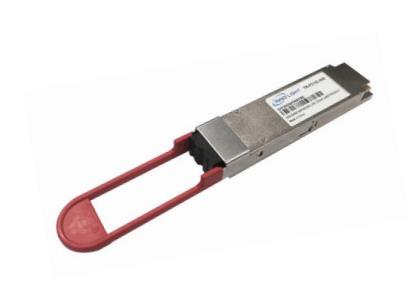

    TR-FC13D-N00 100G QSFP28 ER4 Lite Optical Transceiver InnoLight

    InnoLight 100G QSFP28 ER4 Lite Optical Transceiver TR-FC13D-N00


    Fiber TypeSingle mode
    Weight0.06kg
    Warranty1 Year
    Tx power-2.5 to + 6.5 dBm
    Rx sensitivity-15.65 to -3.5 dBm
    Extinction Ratio2.0dB
    Max Power Consumption
    3.5W
    Applications100GBASE-ER4 Ethernet Links

    Features of TR-FC13D-N00 QSFP28 100G

    • Hot pluggable QSFP28 MSA form factor

    • Compliant to IEEE 802.3ba 100GBASE-ER4

    • Up to 25km reach for G.652 SMF without FEC

    • Single +3.3V power supply

    • Operating case temperature: 0~70oC

    • Transmitter: cooled 4x25Gb/s LAN WDM EML TOSA (1295.56, 1300.05, 1304.58, 1309.14nm)

    • Receiver: 4x25Gb/s APD ROSA

    • 4x28G Electrical Serial Interface (CEI-28G-VSR)

    • Maximum power consumption 4.5W

    • Duplex LC receptacle  RoHS-6 compliant

    Applications of TR-FC13D-N00 QSFP28 100G
    • 100GBASE-ER4 Ethernet Links

    • Infiniband QDR and DDR interconnects

    • Client-side 100G Telecom connections

    General Description of TR-FC13D-N00 QSFP28 100G

    The QSFP28 100G TR-FC13D-N00 is a 100Gb/s transceiver module designed for optical communication applications compliant to 100GBASE-ER4 Lite standard.


    The module converts 4 input channels of 25Gb/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission.


    Reversely on the receiver side, the module de-multiplexes a 100Gb/s optical input into 4 channels of LAN WDM optical signals and then converts them to 4 output channels of electrical data.


    Functional Description of TR-FC13D-N00 QSFP28 100G
    This product is a 100Gb/s transceiver module designed for optical communication applications compliant to 100GBASE-ER4 Lite standard.
    The module converts 4 input channels of 25Gb/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission.
    Reversely on the receiver side, the module de-multiplexes a 100Gb/s optical input into 4 channels of LAN WDM optical signals and then converts them to 4 output channels of electrical data.

    FAQ


    Q1. Are your Optical Transceivers original?


    A1.Yes, all our optical transceivers are guaranteed 100% original!


    Q2.How do you guarantee the quality of SFP?


    A2.We have professional testing equipment and QC team. Every unit will be fully tested with perfect performance before shipping.


    Q3. What is the operating temperature range of QSFP28 100G TR-FC13D-N00?


    A3: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)


    Extended temperature range(EXT): -5 to 85°C(23 to 185°F)


    Industrial temperature range(IND): -40 to 85°C(-40 to 185°F)


    Storage temperature range: -40 to +85°C(-40 to 185°F)


    Q4. What payment terms do you accept?
    A4. T/T, Paypal,Credit card.

    Q5. What are the trade terms?


    A5.Lead Time: 1 day after confirm your payment (In stock, we need 1 day to fully test them)


    Payment term: Western Union, T/T, Alipay, Escow, Money Gram


    Warranty: 1 Year
