Compatible QSFP28 100G base PSM4 optics for up to 500m transmission over parallel SMF

Part Number 740-061406
Speed 4 x 25 Gigabit Ethernet, 100 Gigabit Ethernet
Breakout Capable Yes
Breakout cables MTP-4LC-S1M, MTP-4LC-S3M, MTP-4LC-S5M, MTP-4LC-S10M can be used as break-out cables
Transceiver Type QSFP28
Product Type Optical Transceiver
Connector MPO-12 APC
Monitoring Available Yes
Digital Optical Monitoring Yes
Standard: 100G PSM4 MSA
Diagnostic support Yes
Signaling rate, each lane25.78125 GBd +/- 100 ppm
Transmitter wavelengths (range)1295 nm through 1325 nm
Transmitter output power, each lane (minimum)–9.4 dBm
Transmitter output power, each lane (maximum)2.0 dBm
Receiver input power, each lane (minimum)–12.66 dBm
Receiver input power, each lane (maximum)2.0 dBm
Cable type SMF Core size/cladding9/125 µm
Distance500 mOperating
Temperature (range)0° C to 70° C
Storage temperature–40° C to 85° C

Applications of TR-FC13R-N00 QSFP28 100G

• 100GBASE-LR4 Ethernet Links

• Infiniband QDR and DDR interconnects

• Datacenter and Enterprise networking

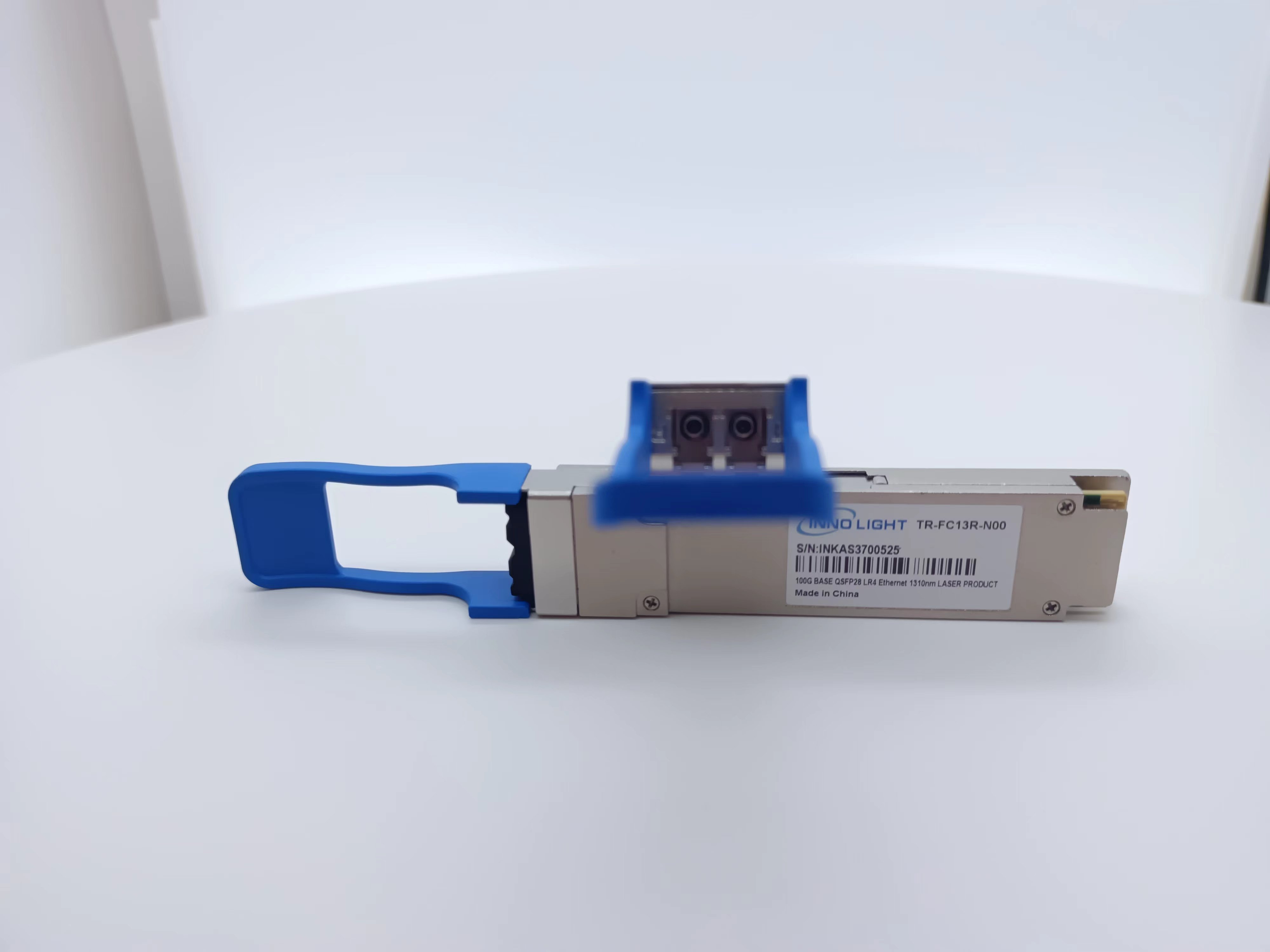

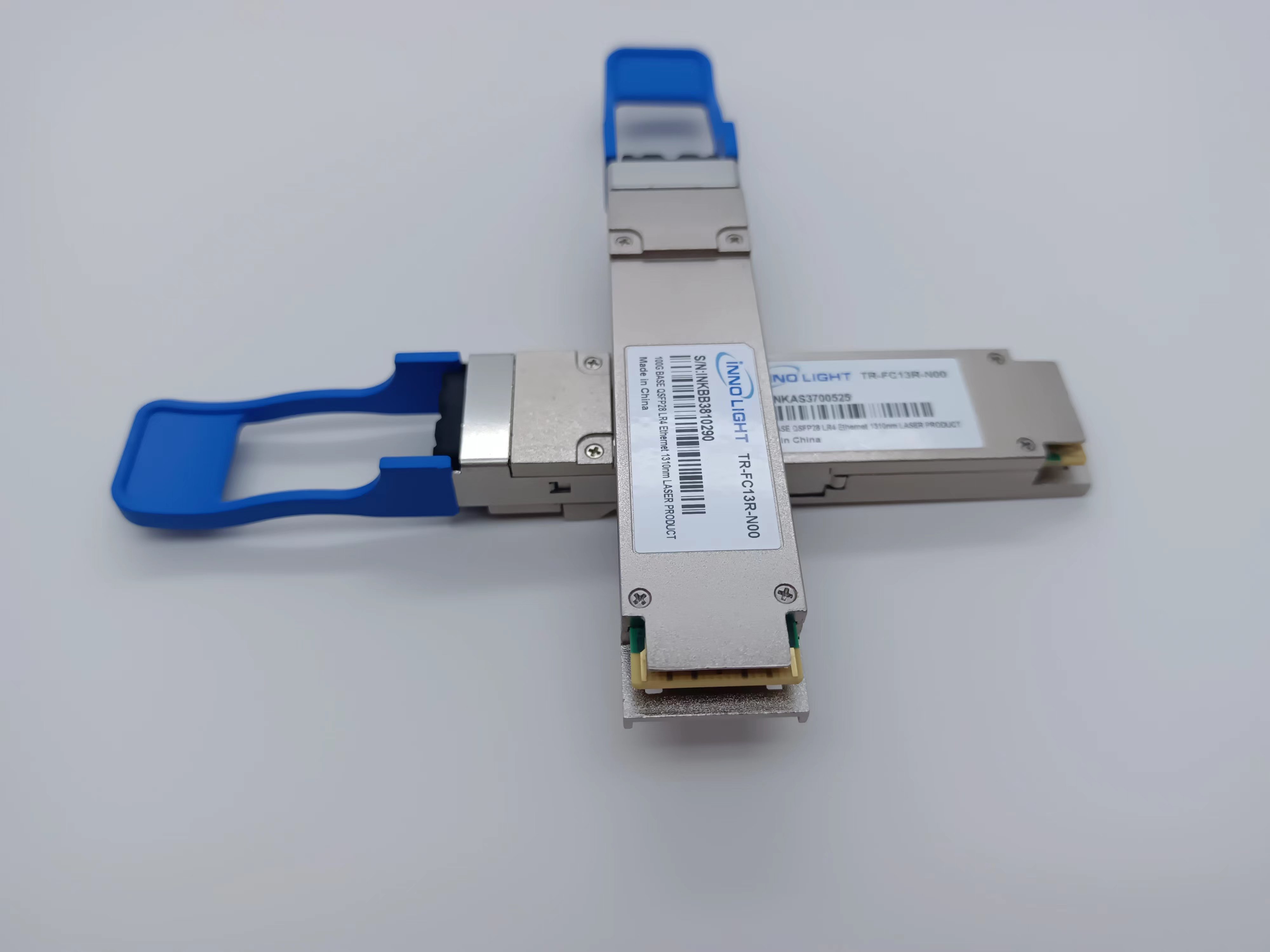

General Description of TR-FC13R-N00 QSFP28 100G

This TR-FC13R-N00 QSFP28 100G is a 100Gb/s transceiver module designed for optical communication applications compliant to 100GBASE-LR4 of the IEEE 802.3ba standard.

The module converts 4 input channels of 25Gb/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission.

Reversely on the receiver side, the module demultiplexes a 100Gb/s optical input into 4 channels of LAN WDM optical signals and then converts them to 4 output channels of electrical data.

Functional Description of TR-FC13R-N00 QSFP28 100G

The TR-FC13R-N00 QSFP28 100G receives 4 channels of 25Gb/s electrical data, which are processed by a 4- channel Clock and Data Recovery (CDR) IC that reshapes and reduces the jitter of each electrical signal.

Subsequently, DFB laser driver IC converts each one of the 4 channels of electrical signals to an optical signal that is transmitted from one of the 4 cooled DFB lasers which are packaged in the Transmitter Optical Sub-Assembly (TOSA).

Each laser launches the optical signal in specific wavelength specified in IEEE 802.3ba 100GBASE-LR4 requirements.

These 4-lane optical signals will be optically multiplexed into a single fiber by a 4-to-1 optical WDM MUX. The optical output power of each channel is maintained constant by an automatic power control (APC) circuit.

The transmitter output can be turned off by TX_DIS hardware signal and/or 2-wire serial interface.
