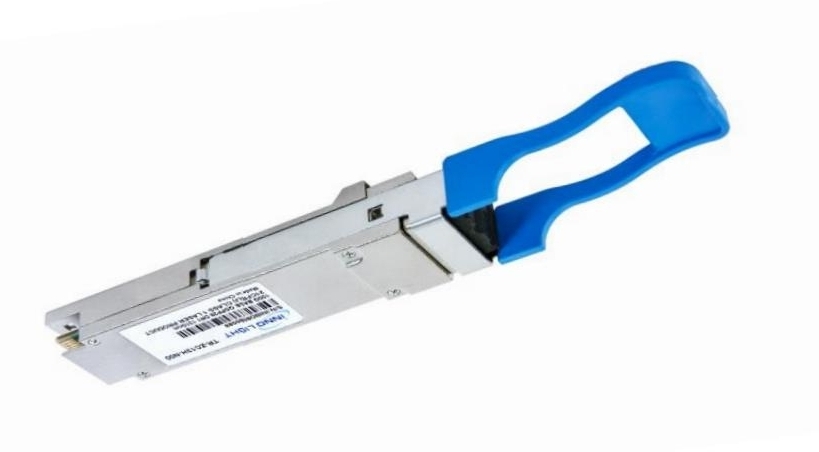

    Single Lambda Optical Transceiver Innolight 100Gb/s QSFP28 LR TR-ZC13L-N00

    Ask Lasest Price
    Brand Name : Innolight
    Model Number : TR-ZC13L-N00
    Certification : RoHS
    Price : Price is negotiable
    Payment Terms : T/T, Paypal、Credit card
    Supply Ability : 5000pcs/month
    Delivery Time : 3-5 working day
    • Product Details
    • Company Profile

    Single Lambda Optical Transceiver Innolight 100Gb/s QSFP28 LR TR-ZC13L-N00

    Innolight 100Gb/s QSFP28 LR Single Lambda Optical Transceiver TR-ZC13L-N00


    Fiber TypeSingle mode
    Weight0.06kg
    Warranty1 year
    Tx power-2.0 to +2.0dBm
    Rx sensitivity

    -2.0 to +2.0 dBm

    Extinction Ratio3.5 dB
    Power Consumption4.5W
    ApplicationsData Center Interconnect

    Features of QSFP28 100G TR-ZC13L-N00


    • QSFP28 MSA compliant
    • Supports 53.125Gbaud
    • 100G Lambda MSA 100G-FR Specification compliant
    • Up to 2km transmission on single mode fiber (SMF) with FEC
    • Operating case temperature: 0 to 70℃
    • 4x25G electrical interface (OIF CEI-28G-VSR)
    • Maximum power consumption 4.5W
    • LC duplex connector
    • RoHS compliant

    APPLICATIONS of QSFP28 100G TR-ZC13L-N00


    • Data Center Interconnect
    • 100G Ethernet
    • Enterprise networking

    Functional of QSFP28 100G TR-ZC13L-N00


    The QSFP28 100G TR-ZC13T-N00 converts the 4-channel of 100Gbps aggregated NRZ electrical input data into one channel of 50Gbaud PAM4 optical signal (light) on 1310nm center wavelength through a DSP based gearbox,
    by a driven cooled Electro-absorption Modulated DFB Laser (EML). The light propagates out of the transmitter into an SMF fiber.
    The receiver module accepts the 50Gbaud PAM4 optical signal input, and converts it into a 50Gbaud PAM4 electrical signal via a linearamplifier. And then convert the 50Gbaud PAM4 signal into 4 channels of 25Gbps NRZ signals.

    The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP28 Multi-Source Agreement (MSA).
    It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.
