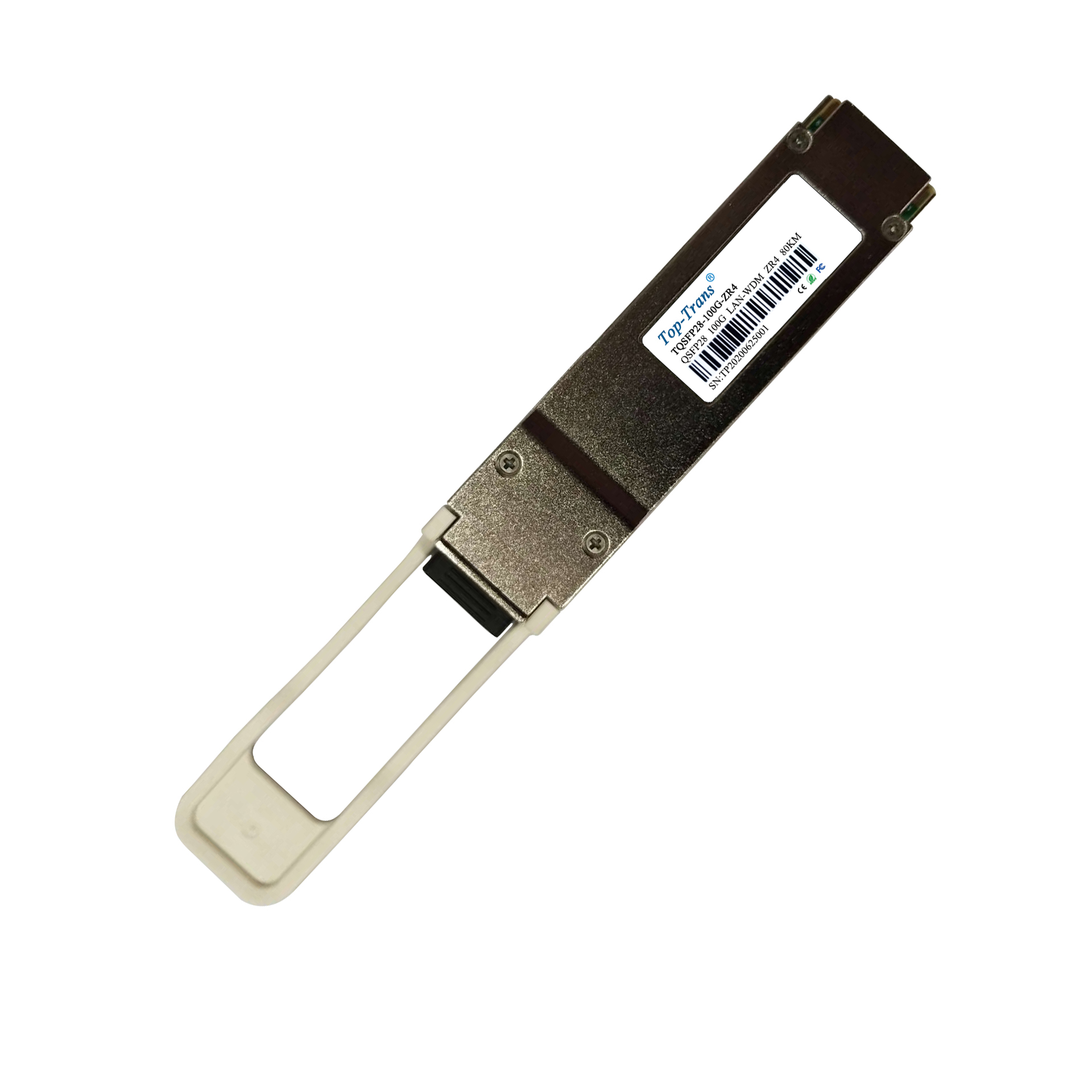

    Arista 100GBASE ZR4 QSFP28 80KM SMF QSFP-100G-ZR4 Transceiver Module

    Ask Lasest Price
    Brand Name : Top-Trans
    Model Number : TQSFP28-100G-ZR4
    Certification : ISO9001, ROHS, CE, FCC
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 3000pcs per month
    Delivery Time : Negotiable
    • Product Details
    • Company Profile

    Arista 100GBASE ZR4 QSFP28 80KM SMF QSFP-100G-ZR4 Transceiver Module

    Arista 100GBASE ZR4 QSFP28 80KM SMF QSFP-100G-ZR4 Transceiver module

    Description Of Fiber Optic Transceiver

    Metro Data center interconnect (DCI) places more and more important role in hyperscale data center for sharing data center resources,business cloud migration and disaster recovery. In the industry, enterprise and Cloud ISP widely favor 100G 80KM DCI solution using 100GBASE-ZR4 Point to Point Ethernet intercoonect for the optimized cost efficiency, power consumption and sample system.

    Top-Trans QSFP28 100G Module is designed for 100GBASE archictecture. This QSFP2 ZR4 transceiver uses LAN-WDM EML transmitter and SOA + PIN receiver to create the 100Gigabit connection via the fiber link over up to extended distance of 80km via the SMF. This QSFP28 module features the LC Duplex connector which can interoperate with other QSFP28 ZR4 optics. This QSFP28 module is fully MSA compliant and features the online DOM/DDM to monitor the operation status. This QSFP28 module can be programmed with the compatibility to interoperate with Arista Network QSFP28 ports.

    Specification Of Fiber Optic Transceiver

    Data Speed103.125Gbps
    Center WavelengthLAN-WDM 1295 - 1309NM
    Fiber TypeSinglemode Fiber
    Transmission80km SMF
    ConnectorLC Duplex
    LasersEML + SOA + PIN
    Tx power+2.0 - +6.5 dBm
    Rx sensitivity<<-28 dBm
    Extinction Ratio26 dB
    Power Consumption< 6.5 W

    Feature Of Fiber Optic Transceiver

    • QSFP28 MSA compliant

    • Hot pluggable 38 pin electrical interface

    • 4 LAN-WDM lanes MUX/DEMUX design

    • 4x25G electrical interfac

    • Maximum power consumption 6.5W

    • LC duplex connector

    • Supports 103.125Gb/s aggregate bit rate

    • Up to 80km transmission on single mode fiber

    • Operating case temperature: 0℃ to 70℃

    • Single 3.3V power supply

    • RoHS 2.0 compliant

    Compatible platform

    Arista 7050X3, 7050X4, 7358X4, 7060X, 7260X, 7130, 7170, 7280R, 7280R3, 7300X, 7388X5, 7368X4, 7500R, 7500R3, 7800R3

    Application of Fiber Optic Transceiver

    • Metro Data Center Interconnect

    • 100GBASE-ZR4 Interconnect

    QSFP28 Transceiver List

    ModelWavelengthDistanceFiber TypeConnector
    100G QSFP28 SR4850nm70/100mMMFMTP/MPO-12
    100G QSFP28 PSM4 500M1310nm500mSMFMTP/MPO-12
    100G QSFP28 PSM4 2KM1310nm2kmSMFMTP/MPO-12
    100G QSFP28 PSM4 10KM1310nm10kmSMFMTP/MPO-12
    100G QSFP28 CWDM4 LiteCWDM4500mSMFLC Duplex
    100G QSFP28 CWDM4CWDM42kmSMFLC Duplex
    100G QSFP28 DR1 500M Single Lambda1310NM500MSMFLC Duplex
    100G QSFP28 FR1 2KM Single Lambda1310NM2kmSMFLC Duplex
    100G QSFP28 LWDM4 LR4 10KM

    LAN-WDM 4

    10kmSMFLC Duplex
    100G QSFP28 LWDM4 LH4 20KM

    LAN-WDM 4

    20kmSMFLC Duplex
    100G QSFP28 LWDM4 ER4 40KM

    LAN-WDM 4

    30/40kmSMFLC Duplex
    100G QSFP28 LWDM4 ZR4 80KM

    LAN-WDM 4

    60/80kmSMFLC Duplex
    100G CFP LWDM4 LR4 10KM

    LAN-WDM 4

    10kmSMFLC Duplex
    100G CFP LWDM4 ER4 40KM

    LAN-WDM 4

    40kmSMFLC Duplex

    FAQ

    • Can I use your QSFP28 module with Arista original QSFP-100G-ZR4 optics?

    Yes, It can interoperate with Arista optics

    • What's your optic warranty terms?

    1 year free replace, 3 years free repairment for non-human made hardware defects

    • What if I find your optics are not satifiying with our fiber link, occurs critical signal losses?

    Our optics is produced using fresh new components through the strict QC control over parameter and performance test through error detector and eye diagram. The qualification ratio is over 99.9%. If any quality defects happen within the warranty, we will arrange the replace/repair service immediately
