    Broadcom AFBR-89CDHZ Transceiver QSFP28 100G SR4 Pluggable Parallel

    Ask Lasest Price
    Brand Name : Broadcom
    Model Number : AFBR-89CDHZ
    Certification : RoHS
    Price : Price is negotiable
    Payment Terms : T/T, Paypal、Credit card
    Supply Ability : 5000pcs/month
    Delivery Time : 3-5 working day
    • Product Details
    • Company Profile

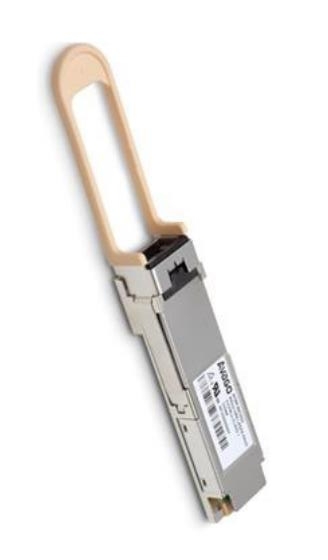

    Broadcom AFBR-89CDHZ Transceiver QSFP28 100G SR4 Pluggable Parallel

    Broadcom AFBR-89CDHZ Transceiver QSFP28 100G SR4 Pluggable Parallel Fiber Optic Module


    Fiber TypeSingle mode
    Weight0.06kg
    Warranty1 year
    Tx power-8.4 to +2.4dBm
    Rx sensitivity

    -10.3 to +2.4 dBm

    Extinction Ratio2.0 dB
    Power Consumption2.5W
    Applications
    Datacom/Telecom switch and router connections

    Features of QSFP28 100G AFBR-89CDHZ


    • Compliant to 100GbE electrical and optical specifications IEEE 802.3bm (Annex 83E CAUI-4 with Clause 91 RS-FEC, Clause 95 100GBASE-SR4)
    • 100GbE Link Distances 100m OM4, 70m OM3
    • QSFP28 MSA specification compliant, including new functions per SFF-8636 Rev 2.9
    • Class 1 eye safety
    • Push-pull tab: ease of transceiver insertion and extraction
    • Operates at 25.78125-Gb/s per channel with 256b/257b coded data
    • 0°C to +70°C case temperature operating range
    • Proven high reliability 850 nm technology: Broadcom VCSEL transmitter and Broadcom PIN detector
    • Hot pluggable QSFP28 transceiver for ease of installation and servicing
    • Two-wire serial (TWS) interface with digital monitoring and maskable interrupts for expanded functionality

    APPLICATIONS of QSFP28 100G AFBR-89CDHZ


    • 100GbE interconnects
    • Datacom/Telecom switch and router connections
    • Data aggregation and backplane applications
    • Proprietary protocol and density applications

    Description of QSFP28 100G AFBR-89CDHZ


    The QSFP28 100G AFBR-89CDHZ is is a four-channel, pluggable, multimode, fiber optic QSFP28 transceiver for 100 Gigabit Ethernet (GbE) applications.


    The transceiver is a high-performance module for short-range multilane data communication and interconnect applications.


    It integrates four data lanes in each direction with each lane operating at 25.78125 Gb/s, giving an aggregated bandwidth of 103.125 Gb/s.


    It allows optical interoperability up to 100m over an 8-fiber (or 12-fiber) MPO optical multimode OM4 cable.


    The push-pull tab facilitates the insertion and extraction of these transceivers in high density environment.


    Each electrical lane operates at 25.78125 Gb/s and conforms to the 100GbE CAUI4 interface with IEEE 802.3 Clause 91 RS-FEC.
