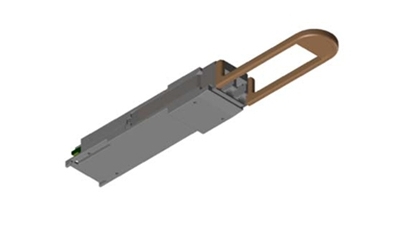

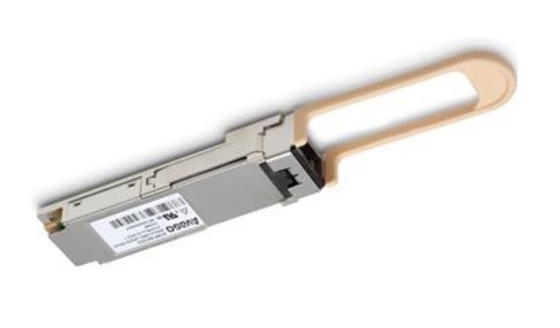

    Avago AFBR-89CDDZ QSFP28 100G SR4 850nm 100m DOM MPO MMF

    Ask Lasest Price
    Brand Name : Broadcom
    Model Number : AFBR-89CDDZ
    Certification : RoHS
    Price : Price is negotiable
    Payment Terms : T/T, Paypal、Credit card
    Supply Ability : 5000pcs/month
    Delivery Time : 3-5 working day
    • Product Details
    • Company Profile

    Avago AFBR-89CDDZ QSFP28 100G SR4 850nm 100m DOM MPO MMF

    • Avago AFBR-89CDDZ QSFP28 100G SR4 850nm 100m DOM MPO MMF Optical Transceiver Module

    Fiber TypeSingle mode
    Weight0.06kg
    Warranty1 year
    Tx power-8.4 to +2.4dBm
    Rx sensitivity

    -10.3 to +2.4 dBm

    Extinction Ratio2.0 dB
    Power Consumption2.5W
    Applications
    Data aggregation and backplane applications

    Features of QSFP28 100G AFBR-89CDDZ


    • Compliant to 100GbE electrical and optical specifi cations 802.3bm (Annex 83E CAUI-4 with Clause 91 RS-FEC, Clause 95 100GBASE-SR4)
    • 100GbE Link Distances 100m OM4, 70m OM3
    • QSFP28 MSA Specifi cation Compliant, including newfunctions per SFF-8636 Rev 2.4
    • Class 1 Eye Safety
    • Pull tab: ease of transceiver insertion and extraction
    • Operates at 25.78125 Gbps per channel with 64b/66b coded data
    • 0 to +70 ºC case temperature operating range
    • Proven High Reliability 850 nm technology: Avago VCSEL transmitter and Avago PIN detector
    • Hot pluggable QSFP28 transceiver for ease of installation and servicing
    • Two Wire Serial (TWS) interface with Digital Monitoring and maskable interrupts for expanded functionality

    APPLICATIONS of QSFP28 100G AFBR-89CDDZ


    • 100GbE interconnects
    • Datacom/Telecom switch and router connections
    • Data aggregation and backplane applications
    • Proprietary protocol and density applications

    Description of QSFP28 100G AFBR-89CDDZ


    The QSFP28 100G AFBR-89CDDZ is a Four-Channel,Pluggable, Multi-mode, Fiber-Optic QSFP28 transceiverfor 100 Gigabit Ethernet Applications.


    This transceiver isa high performance module for short-range multi-lanedata communication and interconnect applications.


    Itintegrates four data lanes in each direction with eachlane operating at 25.78125 Gbps, giving an aggregatedbandwidth of 103.125 Gbps.


    It allows optical interoperability up to 100m over an 8-fi ber (or 12-fi ber) MPO optical multi-mode OM4 cable.


    The pull tab facilitatesthe insertion and extraction of these transceivers in high density environment.


    Each electrical lane operates at25.78125 Gbps and conforms to the 100GE CAUI4 interface with 802.3 Clause 91 RS-FEC.
