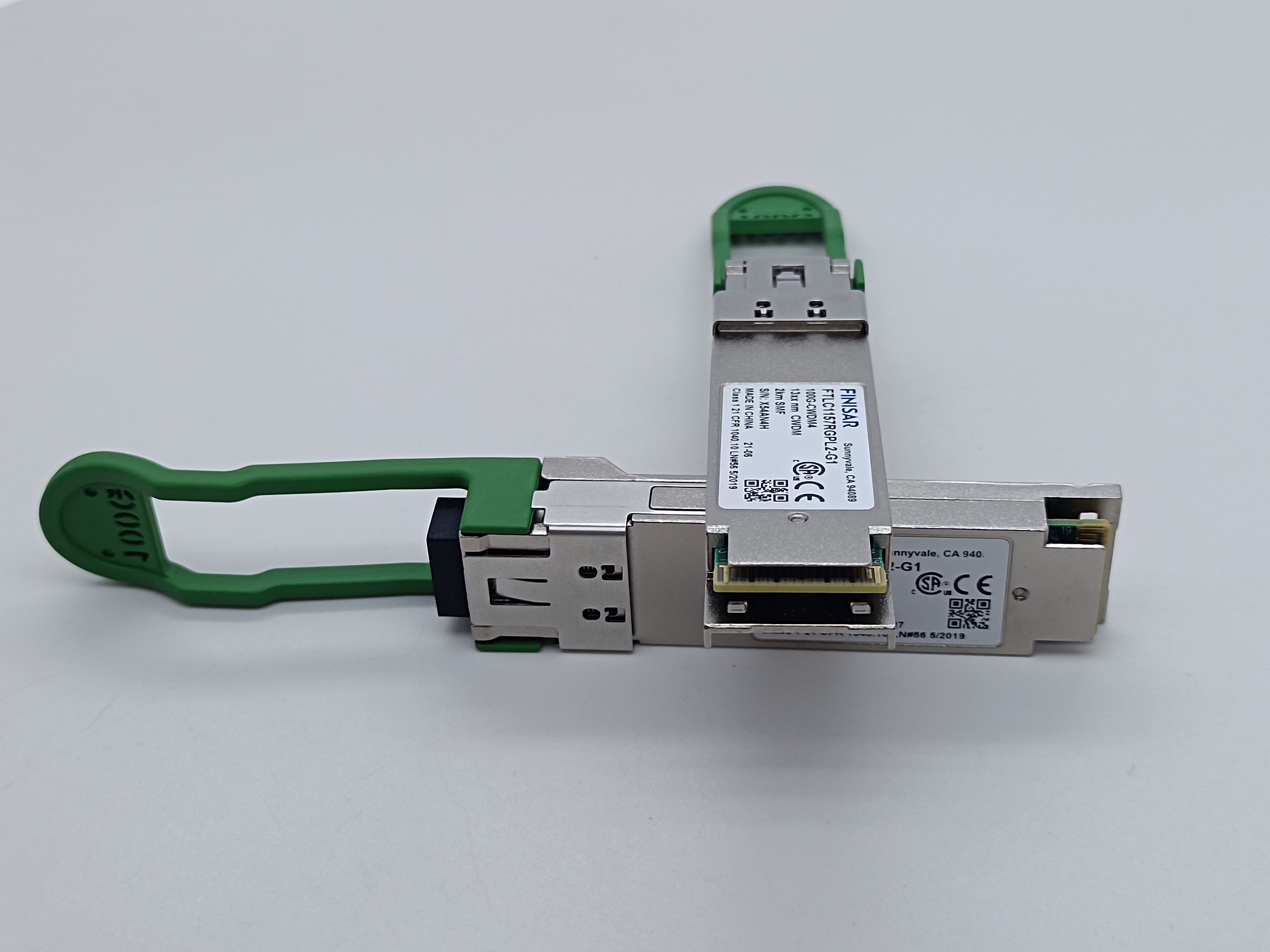

    2km 100G Qsfp28 Cwdm4 Optical Transceiver Module Finisar FTLC1157RGPL2-G1

    Ask Lasest Price
    Brand Name : Finisar
    Model Number : FTLC1157RGPL2-G1
    Certification : RoHS
    Price : Price is negotiable
    Payment Terms : T/T, Paypal、Credit card
    Supply Ability : 5000pcs/month
    Delivery Time : 3-5 working day
    • Product Details
    • Company Profile

    2km 100G Qsfp28 Cwdm4 Optical Transceiver Module Finisar FTLC1157RGPL2-G1

    Finisar FTLC1157RGPL2-G1 2km 100G CWDM4 QSFP28 100G Optical Transceiver Module


    Fiber TypeSingle mode
    Weight0.06kg
    Warranty1 year
    Tx power-4.0 to +2.5dBm
    Rx sensitivity

    -10.0 to +2.5 dBm

    Extinction Ratio3.5 dB
    Power Consumption2.5W
    Applications
    Datacom/Telecom switch and router connections

    Features of QSFP28 100G FTLC1157RGPL2-G1


    • Hot-pluggable QSFP28 form factor

    • Supports 103.1Gb/s aggregate bit rate

    • Power dissipation < 3.5W

    • RoHS-6 compliant

    • Limited case temperature range of 15°C to +60°C

    • Single 3.3V power supply

    • Loss budget of 5 dB on up to 2 km of Single Mode Fiber (SMF) [with KR4 FEC]

    • 4x25Gb/s CWDM transmitter

    • 4x25G retimed electrical interface

    • Duplex LC receptacles

    • I2C management interface

    APPLICATIONS of QSFP28 100G FTLC1157RGPL2-G1


    • 100G CWDM4 applications with FEC

    • Data Center applications

    Description of QSFP28 100G FTLC1157RGPL2-G1


    Finisar’s FTLC1157RGPL2 QSFP28 100G transceiver modules are designed for use in 100 Gigabit Ethernet links on up to 2 km of single mode fiber.


    Designed for data center applications with a limited temperature range (15°C to 60°C), the transceivers are compliant with the QSFP28 MSA1 ,


    CWDM4 MSA2 and portions of IEEE 802.3bm CAUI-4 3 within 15°C to 60°C.


    Digital diagnostic functions are available via the I2C interface, as specified by the QSFP28 MSA and Finisar Application Notes AN-21534 and AN-21545 .


    The optical transceiver is compliant per the RoHS-6 Directive 2011/65/EU 6 .
