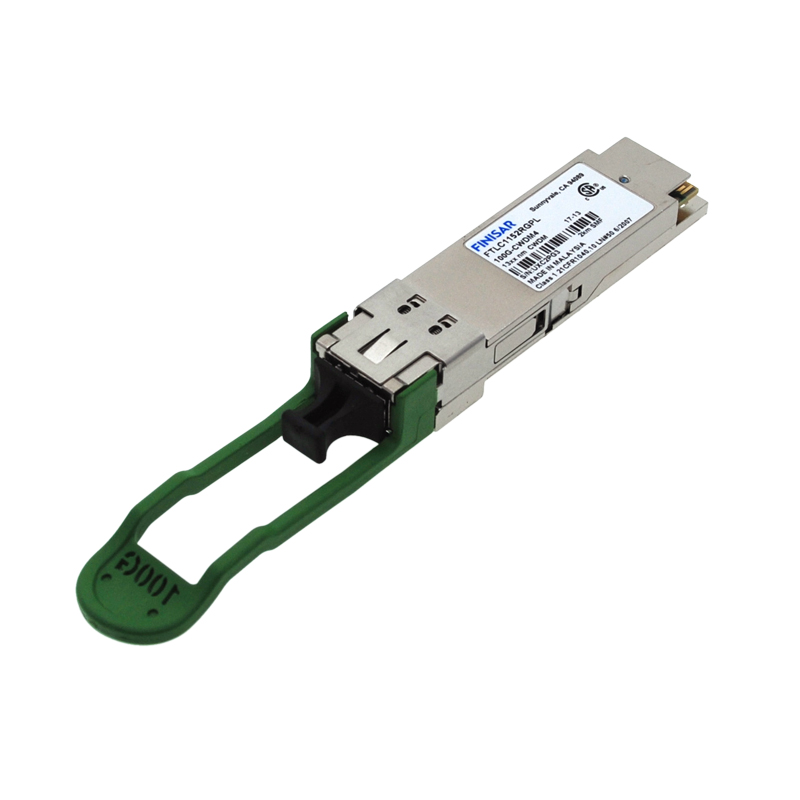

Original FTLC1152RGPL Finisar 2km SMF 100GBase-CWDM4 Optical Transceiver

TOPSTAR TECHNOLOGY INDUSTRIAL CO., LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Original FTLC1152RGPL Finisar 2km SMF 100GBase-CWDM4 Optical Transceiver from wholesalers

    Buy cheap Original FTLC1152RGPL Finisar 2km SMF 100GBase-CWDM4 Optical Transceiver from wholesalers
    • Buy cheap Original FTLC1152RGPL Finisar 2km SMF 100GBase-CWDM4 Optical Transceiver from wholesalers
    • Buy cheap Original FTLC1152RGPL Finisar 2km SMF 100GBase-CWDM4 Optical Transceiver from wholesalers
    • Buy cheap Original FTLC1152RGPL Finisar 2km SMF 100GBase-CWDM4 Optical Transceiver from wholesalers
    • Buy cheap Original FTLC1152RGPL Finisar 2km SMF 100GBase-CWDM4 Optical Transceiver from wholesalers

    Original FTLC1152RGPL Finisar 2km SMF 100GBase-CWDM4 Optical Transceiver

    Ask Lasest Price
    Brand Name : Finisar
    Model Number : FTLC1152RGPL
    Certification : ROHS
    Price : Price is negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram, D/A
    Supply Ability : 800pcs per day
    Delivery Time : 3-4 days
    • Product Details
    • Company Profile

    Original FTLC1152RGPL Finisar 2km SMF 100GBase-CWDM4 Optical Transceiver

    Original Finisar FTLC1152RGPL 100G CWDM4 SMF 2km MPO QSFP28 Optical Transceiver


    Parameters

    Fiber Type

    10GBASE-LR4Ethernet

    ConnectorDual-LC
    Lasers and TIAVCSEL and PIN
    Tx Power-4~2.5 dBm
    Rx Sensitivity-9.4 dBm
    Extinction Ratio-11.5~-3.5 dbm
    Power Consumption3.5W
    Single Power Supply3.3~5 V

    The FTLC1152RGPL is a 103 Gbps transceiver module designed for optical communication applications compliant to 100GBASE-CWDM4 of the IEEE P802.3ba standard. The module converts 4 input channels of 25 Gbps electrical data to 4 optical CWDM channels and then multiplexes them into a single channel for 103 Gbps optical transmission. Reversely on the receiver side, the module de-multiplexes a 103 Gbps optical input into 4 channels of CWDM optical signals and then converts them to 4 output channels of electrical data. The central wavelengths of the 4 LAN WDM channels are 1270, 1290, 1310 and 1330 nm as members of the CWDM wavelength grid. The high performance cooled DML DFB transmitters and high sensitivity PIN receivers provide superior performance for 100G applications up to 2km links.


    Finisar Compatible FTLC1152RGPL Quick Spec:

    Form Factor: QSFP28
    TX Wavelength: CWDM4
    Reach: 2km
    Cable Type: SMF
    Rate Category: 100GBase
    Interface Type: CWDM4
    DDM: Yes
    Connector Type: Dual-LC
    Optical Power Budget: 7.5 dB
    TX Power Min/Max: -4.00 to +2.50 dBm
    RX Power Min/Max: -11.50 to +3.50 dBm


    Finisar Compatible FTLC1152RGPL

    Features:

    • Hot pluggable QSFP28 MSA form factor
    • Supports 103 Gbps
    • Up to 2km reach for G.652 SMF
    • Single +3.3V power supply
    • Transmitter: cooled 4x25 Gbps CWDM DML TOSA (1270, 1290, 1310, 1330nm)
    • Receiver: 4x25 Gbps PIN ROSA
    • 4x25G Electrical Serial Interface
    • Maximum power consumption 3.5W
    • RoHS-6 compliant (lead-free)
    • Duplex LC receptacle
    • I
    2C interface with integrated Digital Diagnostic Monitoring
    • Operating Case Temperature
    o Standard 0 to +70 °C
    o Industrial -40 to +85 °C

    Finisar Compatible FTLC1152RGPL

    Applications:
    • 100GBASE-LR4 Ethernet links


    Finisar Compatible FTLC1152RGPL Overview

    The FTLC1152RGPL is a 103 Gbps transceiver module designed for optical communication applications compliant to
    100GBASE-CWDM4 of the IEEE P802.3ba standard. The module converts 4 input channels of 25 Gbps electrical data to
    4 optical CWDM channels and then multiplexes them into a single channel for 103 Gbps optical transmission.
    Reversely on the receiver side, the module de-multiplexes a 103 Gbps optical input into 4 channels of CWDM optical
    signals and then converts them to 4 output channels of electrical data. The central wavelengths of the 4 LAN WDM
    channels are 1270, 1290, 1310 and 1330 nm as members of the CWDM wavelength grid. The high performance cooled
    DML DFB transmitters and high sensitivity PIN receivers provide superior performance for 100G applications up to
    2km links. The product is designed with form factor, optical/electrical connection and digital diagnostic interface per
    the QSFP+ Multi-Source Agreement(MSA)


    FAQ


    1. Are your Optical Transceivers original?

    Yes, all our optical transceivers are guaranteed 100% original!


    2. What will you do if I found the product has any quality problem?

    We back up every sale with our risk-free money-back guarantee! You can buy with confidence from a company in good faith that has been serving its clients for over 10 years!


    3. What did your company do in terms of quality control?

    We have professional testing equipment and QC team. Every unit will be fully tested with perfect performance before shipping.


    4. What are the trade terms?

    Lead Time: 1 day after confirm your payment (In stock, we need 1 day to fully test them)

    Payment term: Western Union, T/T, Aliexpress Escow, Money Gram

    Warranty: 1 Year


    5. Do you have compatible ones?

    Yes, we have our own brand—Toptrans, including SFP, XFP, SFP+, Bidi in all kinds of specifications.
