    Gigabit Ethernet Fortinet FG-TRAN-GC Compatible Copper RJ45 SFP 100m

    Ask Lasest Price
    Brand Name : Top-Trans
    Model Number : TSFP-1.25G-TF1
    Certification : ISO9001, ROHS, CE, FCC
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 3000pcs per month
    Delivery Time : Negotiable
    • Product Details
    • Company Profile

    Gigabit Ethernet Fortinet FG-TRAN-GC Compatible Copper RJ45 SFP 100m

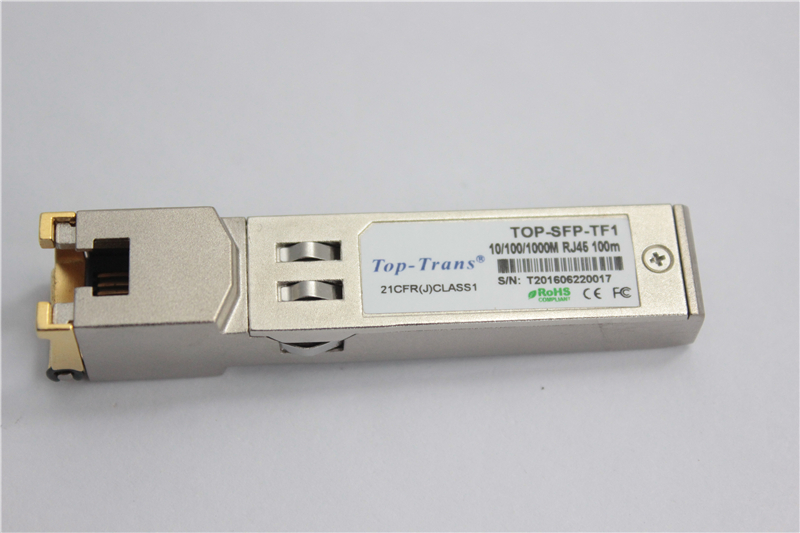

    Fortinet FG-TRAN-GC Compatible Gigabit Ethernet Copper RJ45 SFP 100m Transceiver

    Description Of Fiber Optic Transceiver

    This TSFP-1.25G-TF1 Transceiver is designed for converting the Gigabit Ethernet SFP port into an RJ45 port, enabling the configuration of copper ethernet on fiber optic network equipment.

    This Copper RJ45 SFP Transceiver features a hot pluggable MSA SFP interface and an RJ45 connector. This Copper RJ45 SFP Transceiver supports the data link speed of 10M, 100M and 1000M with self-adaption. This Copper RJ45 SFP Transceiver allows the transmission distance of up to 100meter via Cat5/Cat5e cable on 1000M data speed. This Copper RJ45 SFP Transceiver is fully compliant with MSA SFP and IEEE 802.3z.

    Specification Of Fiber Optic Transceiver

    Data Speed

    10/100/1000Mbps

    Interface

    SFP port

    Connector

    RJ45

    Transmission

    100m on Cat5/Cat5e

    Lower Power Dispation

    1.2W max

    ROHS compliantYes, Support
    Lead FreeYes, Support

    Feature Of Fiber Optic Transceiver

    • Up to 1.25Gb/s bi-directional data links

    • Hot-pluggable SFP footprint

    • Extended case temperature range (0°C to +85°C )

    • Fully metallic enclosure for low EMI

    • Low power dissipation (1.05 W typical)

    • Compact RJ-45 connector assembly

    • Access to physical layer IC via 2-wire serial bus

    • 1000 BASE-T operation in host systems with SERDES interface

    • 10/100/1000Mbps compliant in host systems with SGMII interface

    • 1Gigabit Ethernet over Cat 5 cable

    Application of Fiber Optic Transceiver

    • Gigabit Ethernet

    • Enterprise, Data Center, Security Network

    SFP Transceiver List

    ModelWavelengthDistanceFiber TypeConnector
    TSFP-1.25G-MMDSX - 850nm550mMMFLC Duplex
    TSFP-1.25G-SMDLX - 1310NM10kmSMFLC Duplex
    TSFP-1.25G-20DLH - 1310NM20kmSMFLC Duplex
    TSFP-1.25G-40DEX - 1310nm40kmSMFLC Duplex
    TSFP-1.25G-60DEX60, 1310nm60kmSMFLC Duplex
    TSFP-1.25G-80DZX, 1550nm80kmSMFLC Duplex
    TSFP-1.25G-100DZX100, 1550nm100kmSMFLC Duplex
    TSFP-1.25G-120DZX120, 1550nm120kmSMFLC Duplex
    TSFP-1.25G-160D

    ZX160, 1550nm

    160kmSMFLC Duplex
    TBD-1.25G-10A/BLX - 1310/1550nm BIDI10kmSMFLC Simplex
    TBD-1.25G-20A/BLH - 1310/1550nm BIDI20kmSMFLC Simplex
    TBD-1.25G-40A/BEX - 1310/1550nm BIDI40kmSMFLC Simplex
    TBD-1.25G-60A/BEX60 - 1310/1550nm BIDI60kmSMFLC Simplex
    TBD-1.25G-80A/BZX - 1490/1550nm BIDI80kmSMFLC Simplex
    TBD-1.25G-100A/BZX100 - 1490/1550nm BIDI100kmSMFLC Simplex
    TBD-1.25G-120A/BZX120 - 1490/1550nm BIDI120kmSMFLC Simplex
    TBD-1.25G-160A/BZX160 - 1490/1550nm BIDI160kmSMFLC Simplex
    TCM-1.25G-20-XXLX/LH - 1271-1611nm CWDM10-20kmSMFLC Duplex
    TCM-1.25G-40-XXEX - 1271-1611nm CWDM40kmSMFLC Duplex
    TCM-1.25G-80-XXZX - 1271-1611nm CWDM80kmSMFLC Duplex
    TCM-1.25G-120-XXZX120 - 1271-1611nm CWDM120kmSMFLC Duplex
    TCM-1.25G-160-XXZX160 - 1271-1611nm CWDM160kmSMFLC Duplex
    TDM-1.25G-40-XXEX - C Band ITU DWDM40kmSMFLC Duplex
    TDM-1.25G-80-XXZX - C Band ITU DWDM80kmSMFLC Duplex
    TDM-1.25G-120-XXZX120 - C Band ITU DWDM120kmSMFLC Duplex
    TDM-1.25G-160-XXZX160 - C Band ITU DWDM160kmSMFLC Duplex
    155M/622M850-1550nm/BIDI0.55-160kmMMF/SMFLC
    2.5G850-1550nm/BIDI/XWDM0.3 -120kmMMF/SMFLC
    6.25G850-1550nm0.3 - 20kmMMF/SMFLC
    4.5G/8.5G850-1550nm/CWDM0.5 - 40kmMMF/SMFLC

    FAQ

    • Can I use your Copper RJ45 SFP with other RJ45 equipment?

    Yes, It can interoperate with other RJ45 equipment via Cat5/Cat5e cable.

    • What's your optic warranty terms?

    1 year free replace, 3 years free repairment for non-human made hardware defects

    • What if I find your optics are not satifiying with our fiber link, occurs critical signal losses?

    Our optics are made up of fresh new components through strict QC control on digital & optical parameters, performance and reliability tests through error detectors, eye diagrams and Industrial ovens. The qualification ratio is over 99.9%. If any quality defects occurs within the warranty, we will arrange the replace/repair service immediately.
