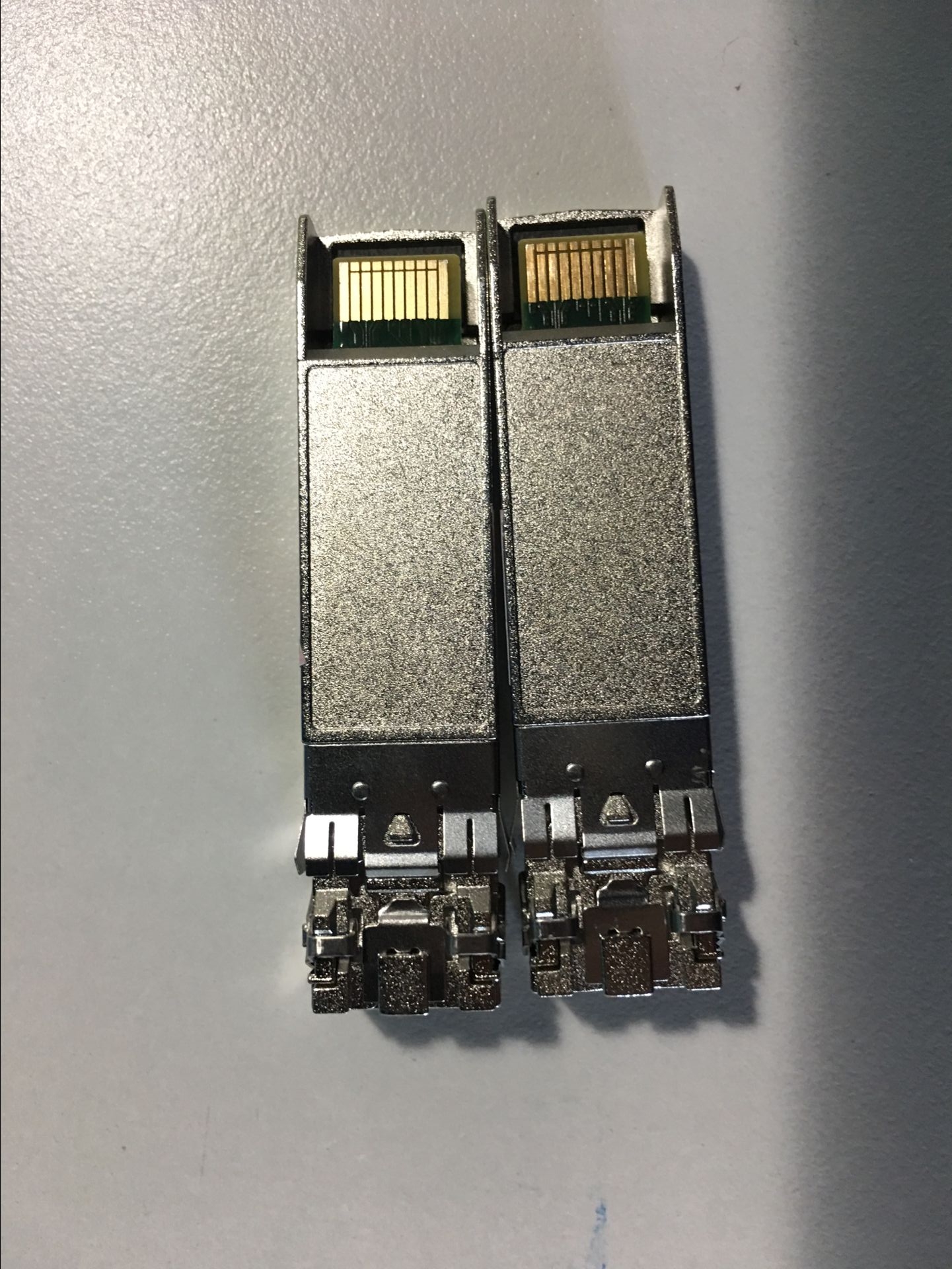

    Compatible SFP+ 10GBASE-SR 850nm 300m DOM AFBR-709DMZ-IN2

    Ask Lasest Price
    Brand Name : Intel
    Model Number : AFBR-709DMZ-IN2
    Certification : RoHS
    Price : Price is negotiable
    Payment Terms : T/T, Paypal、Credit card
    Supply Ability : 5000pcs/month
    Delivery Time : 3-5 working day
    • Product Details
    • Company Profile

    Compatible SFP+ 10GBASE-SR 850nm 300m DOM AFBR-709DMZ-IN2

    Compatible SFP+ 10GBASE-SR 850nm 300m DOM optical module Transceiver AFBR-709DMZ-IN2


    Fiber TypeSingle mode
    Weight0.03kg
    Warranty1 year
    Tx power-7.3 to +1.0 dBm
    Rx sensitivity

    -11.1 dBm

    Extinction Ratio3.0 dB
    Power Consumption0.6 W
    EMCYes

    Features


    • Hot-pluggable SFP+ footprint

    • Supports 9.95 to 10.5 Gb/s bit rates

    • Powerdissipation < 1W

    • RoHS-6 compliant (lead-free)

    • Commercial temperature range 0° C to70° C

    • Single 3.3Vpower supply

    • Up to 300m Transmission on MMF

    • 4700 MHZ-kmOM4 MMF

    • Heated 850nm VCSEL laser

    • Receiver limiting electrical interface

    • Duplex LC connector

    • Built-in digital diagnosticfunctions

    Application

    • 10GBASE-SR/SW10G Ethernet
    • 1200-Mx-SN-l 10G Fibre Channel

    Description


    10Gb/s SFP+ transceivers are designed for use in 10-Gigabit Ethernet links over multimode fiber.


    They are compliant with SFF-8431, SFF- 8432, IEEE 802.3ae 10GBASE-SR/SW and 10G Fibre Channel 1200-Mx-SN-l.


    Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.


    The transceiver is a 'limiting module”, i.e., it employs a limiting receiver.


    Host board designers using an EDC PHY IC should follow the IC manufacturer's recommended settings for interoperating the host-board EDC PHY with a limiting receiver SFP+ module.


    The optical transceivers are compliant per the RoHS Directive 2011/65/EU.
